18. Disassembly and Assembly Instructions
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
18.1 CS-Z20TKR CS-Z25TKR CS-Z35TKR CS-Z42TKR
18.1.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

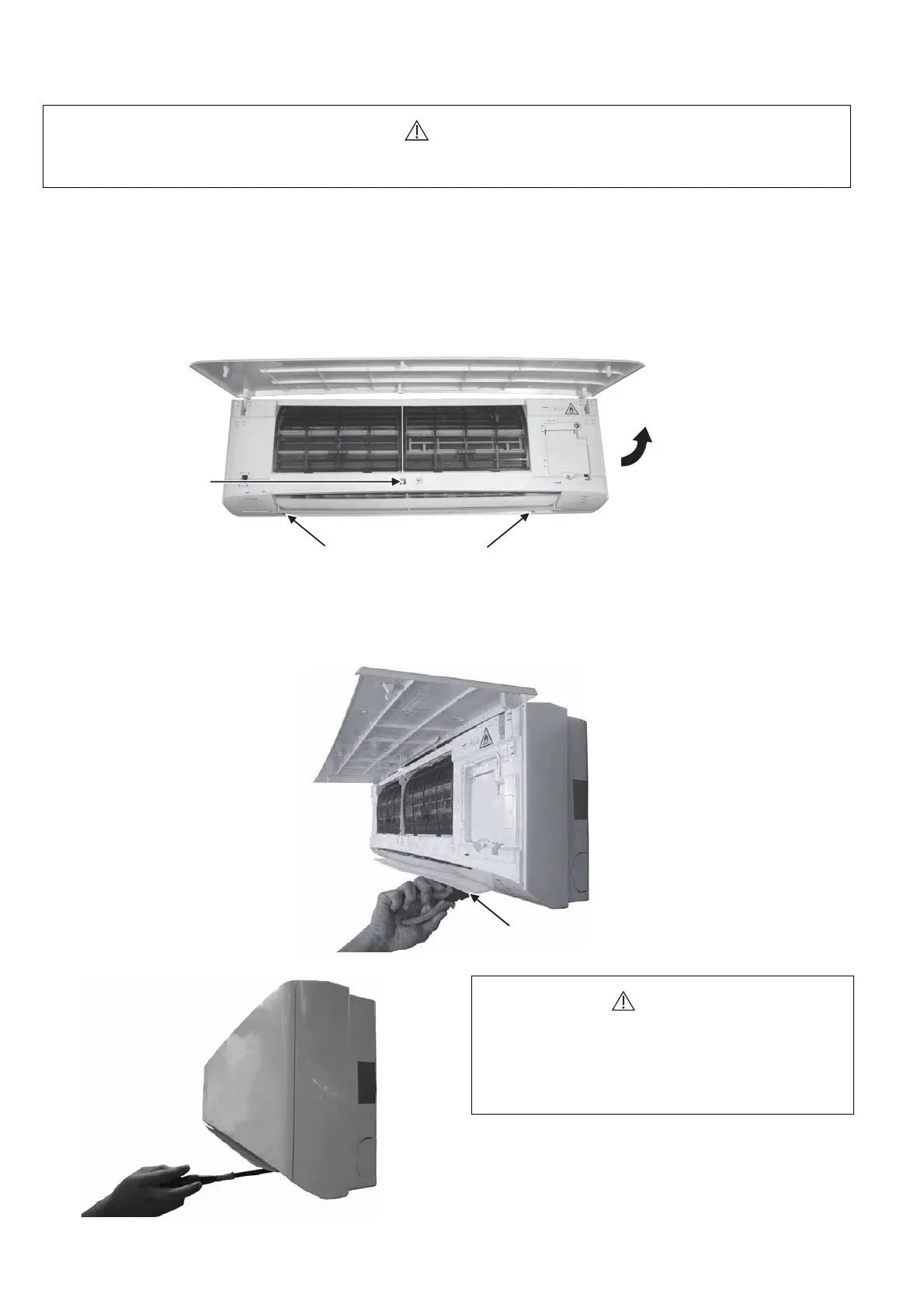

18.1.1.1 To Remove Front Grille
1. Remove 2 caps and 2 screws at the
bottom of front grille.
2. Remove 1 screw at the
middle of front grille.
3. Hold both sides of the front grille
and gently remove it by pulling up
and toward yourself.
Figure 1
18.1.1.2 Caps Removal
Use long nose pliers
to pull out the caps.
CAUTION
a. Use a manual screw driver with at least 150 mm shaft
length. Do not use a hand drill type.
b. Slightly tilt the screw driver handle downward so that the
shaft does not touch the flap. Be careful not to scratch the
flap while undoing the screws.
To Next Page
