156

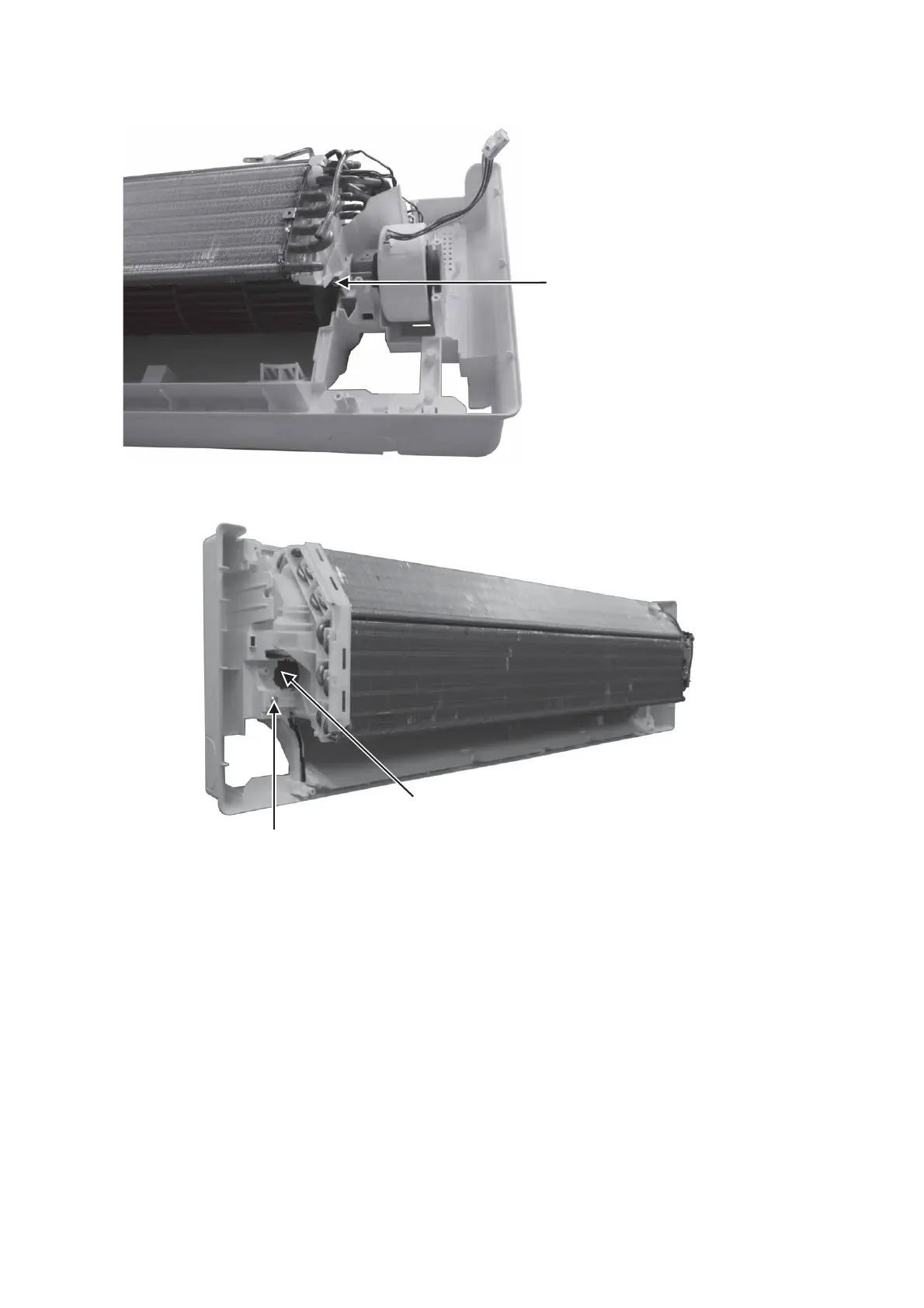

18.2.1.6 To Remove Cross Flow Fan and Indoor Fan Motor
15. Remove the screw that holding
the cross flow fan and fan motor
axis.
Figure 8
17. Remove the bearing
by pulling it gently.
16. Remove the screw from
the evaporator.
Figure 9
