Panasonic CS-Z71TKR Service Manual

59

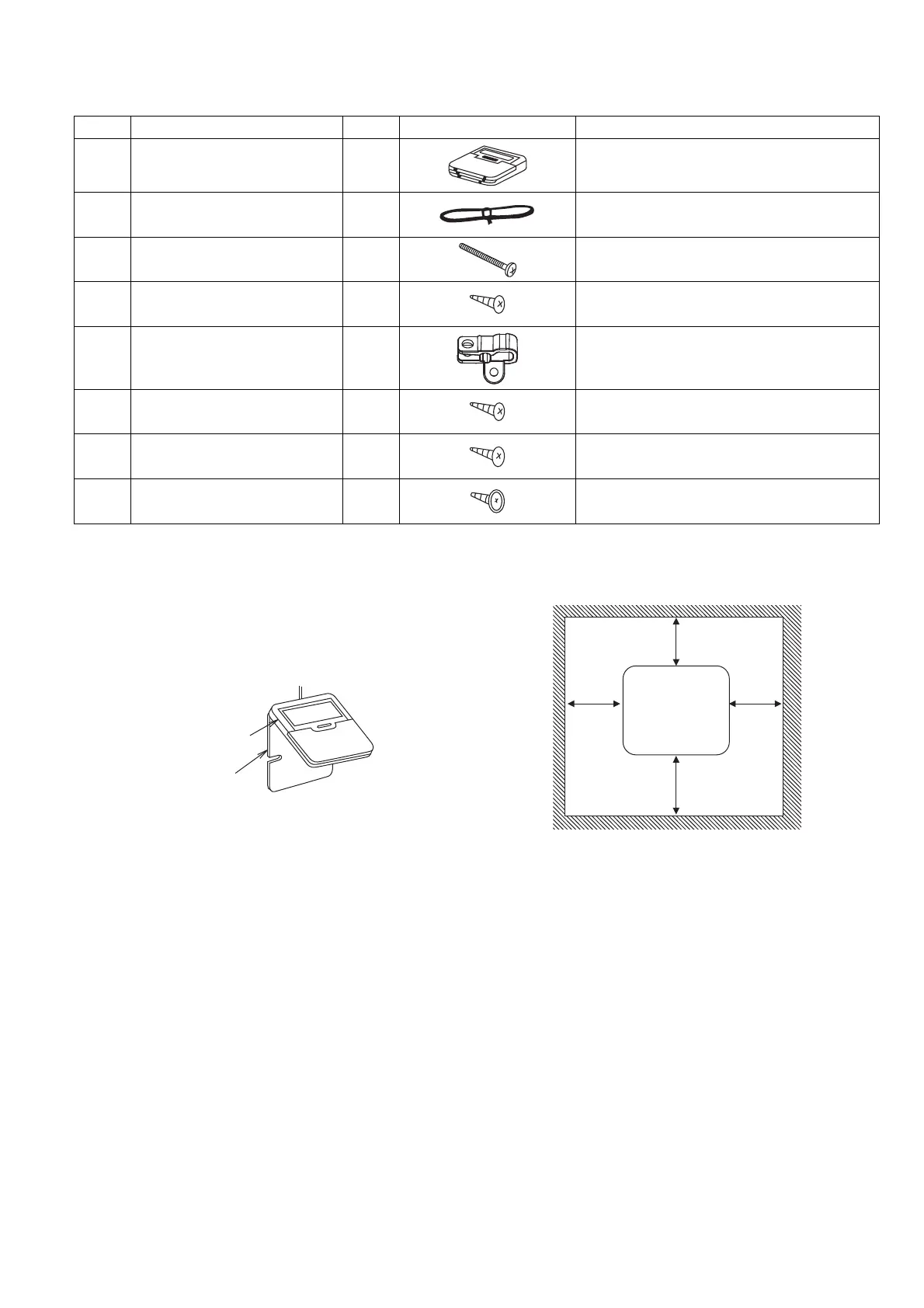

12.4.2 Attached Accessories
No. Name Qty Diagram Remark
1
Remote controller 1
2
Remote controller cable 1
Length (9.9 m)
3
Screw
(M4 machine pitched – 30 mm)
3
Installing the remote controller to an outlet box
(embedded cable)
4
Screw
(M4 self tapping – 14 mm)
3
Installing the remote controller to the wall
(exposed cable)
5
Remote controller cable holder 1
Holder for remote controller cable at control board
6
Screw
(M4 self tapping – 10 mm)
1
Tighten remote controller cable with holder
7
Screw
(M3 self tapping – 8 mm)
1
Installing the remote controller cable to control board
8
Screw
(M4 self tapping with washer)
1
Installing the green wire to terminal board complete
12.4.3 Selecting the Installation Location
Remote
controller
lower case
30 mm
or more
30 mm
or more
30 mm
or more
120 mm
or more
Upper case
Lower case
Remote controller
 Allow sufficient space around the remote controller 1 as shown in the illustration above.
 Install in a place which is away from direct sunlight and high humidity.
 Install in a flat surface to avoid warping of the remote controller. If installed to a wall with an uneven surface,
damage to the LCD case or operation problems may result.
 Install in a place where the LCD can be easily seen for operation. (Standard height from the floor is 1.2 to
1.5 meters.)
 Avoid installing the remote controller cable near refrigerant pipes or drain pipes, else it will cause electrical shock
or fire.
