Panasonic CT-27D10B - Serviceman Mode Adjustments: Pin Cushion & MTS; Pin Cushion Adjustment Details; MTS Adjustment Details

- 16 -
Press the Power Button on the Remote Control to select the Serviceman Adjustment
For Adjustments:
Pin Cushion Adjustment
Default
Level
D0 H POSITION 16
D1 V SIZE 31
D2 V S CORRECTION 4
D3 V LIN CORRECTION 14
D4 E/W TRAPEZIUM 8
D5 V AGC 1
D6 V POSITION 1
D7 V CENTERING 63
D8 V CENTERING DAC SW 0
D9 V-BLK START PHASE 12
DA V-BLK STOP PHASE 14
MTS Adjustment
Default
Level
M0 INPUT LEVEL 33
M1 LOW-LEVEL SEPARATION 6
M2 HIGH-LEVEL SEPARATION 25

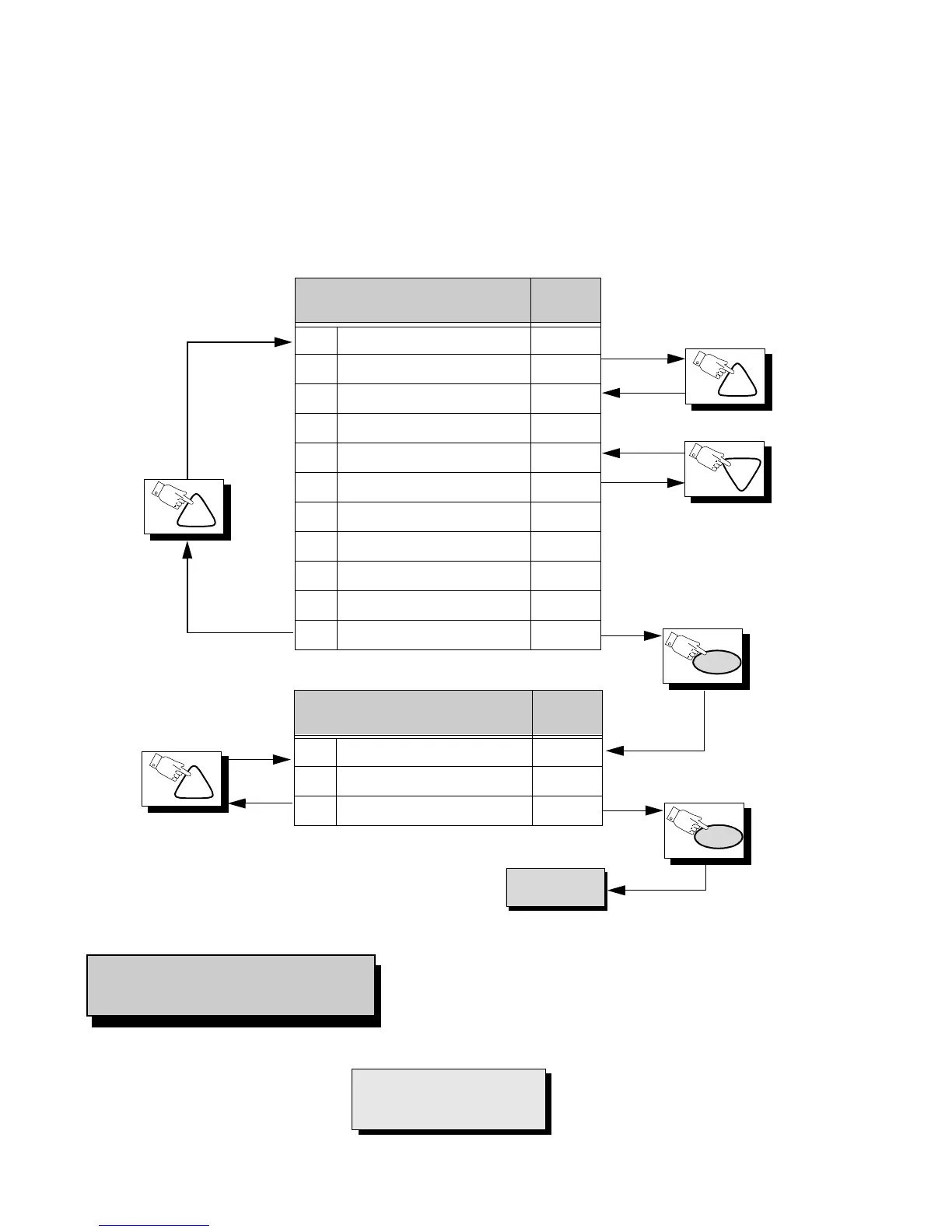

1.Press Channel Up/Down on the
Remote Control to select one of
the available Service Adjustments
(a in Fig. 14).
Note: Write Down the original
value set (b in Fig. 14) for
each address before
modifying anything. It is
easy to erroneously adjust
the wrong item.
2.Press Volume Up/Down on the
Remote Control to adjust the
level of the selected Service
Adjustment (b in Fig. 14).
CH
CH
CH
PW
To P Items.
IMPORTANT NOTE:
Always Exit the Serviceman
Mode Following Adjustments.
PW
CH
Note: Some adjustments modes may not be
available in some models depending
on available options.
