Component Identification

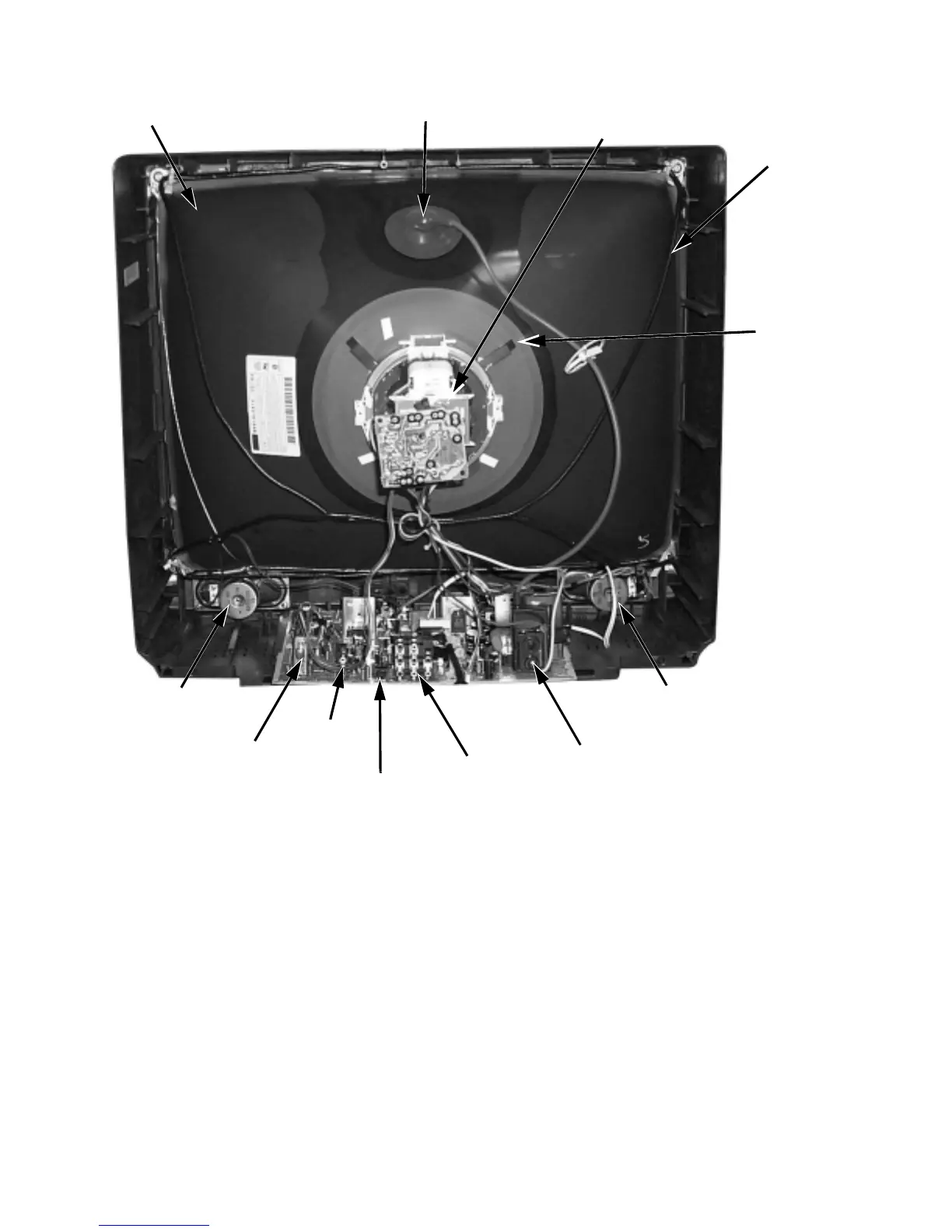

Figure 31. Rear View
Speaker
Speaker
Tuner
S-VHS Input
A/V Jacks
T551 Flyback
Anode (High Voltage)
CRT (Secured by 4 screws)
Deflection yoke
Yoke
wedge
VAO out
Degaussing
Coil
Note: After servicing the receiver, remember
to dress the cables, as shown above.
