Panasonic CU-3KE19NBU - Outer Dimensions of Outdoor Unit

14
Fig. 6a
23-15/16
5-11/32
15/32
35-7/16 (900)
13-19/32 12-19/32 14-17/32
2-29/32
29-1/8 (740)
23/32
1-13/16
2-1/16
5-29/32
2-27/32
2-3/4
2-1/32
4-7/16
2-15/16
2-3/4
4-1/2
A
Service valve on narrow tube side
(Outer diameter 1/4"(
6.35
))
Service valve on wide tube side
(Outer diameter 3/8"(
9.52
))
A
(1) CU-3KE19NBU
Fig. 6b
23-15/16
5-11/32
15/32
12-19/32 13-19/32 14-17/32
35-7/16 (900)
29-1/8 (740)
2-1/16
1-13/16
2-29/32
2-13/32
A
4-1/2
2-1/32
5-29/32
2-27/32
2-3/4
4-7/16
2-15/16
2-3/4
Service valve on narrow tube side
(Outer diameter 1/4"(6.35))
Service valve on wide tube side
(Outer diameter 3/8"(9.52))
Service valve on wide tube side
(Outer diameter 1/2"(12.70))
A
23/32
Fig. 6c
23-15/16
15/32
12-19/32 13-19/32 14-17/32
5-11/32
35-7/16 (900)
23/32
35-1/32 (890)
2-29/32
2-1/16
1-13/16
2-13/32
4-1/2
2-1/32
4-7/16
5-29/32
2-15/16
2-27/32
2-3/4
2-3/4
A
Service valve on narrow tube side
(Outer diameter 1/4"(6.35))
Service valve on wide tube side
(Outer diameter 1/2"(12.70))
Service valve on wide tube side
(Outer diameter 3/8"(9.52))
A
(2) CU-4KE24NBU
(3) CU-4KE31NBU

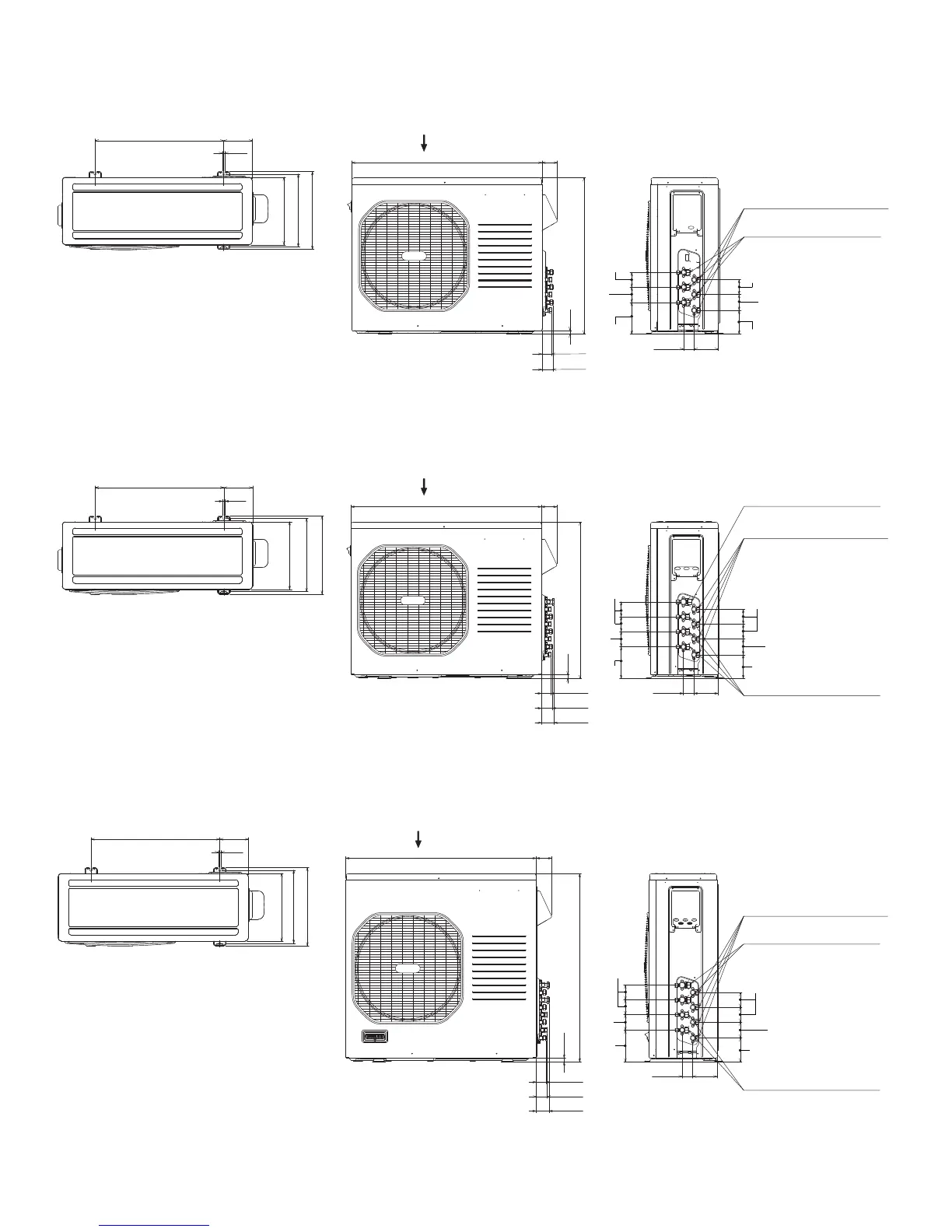

2-5. Outer Dimensions of Outdoor Unit
unit: inch (mm)
