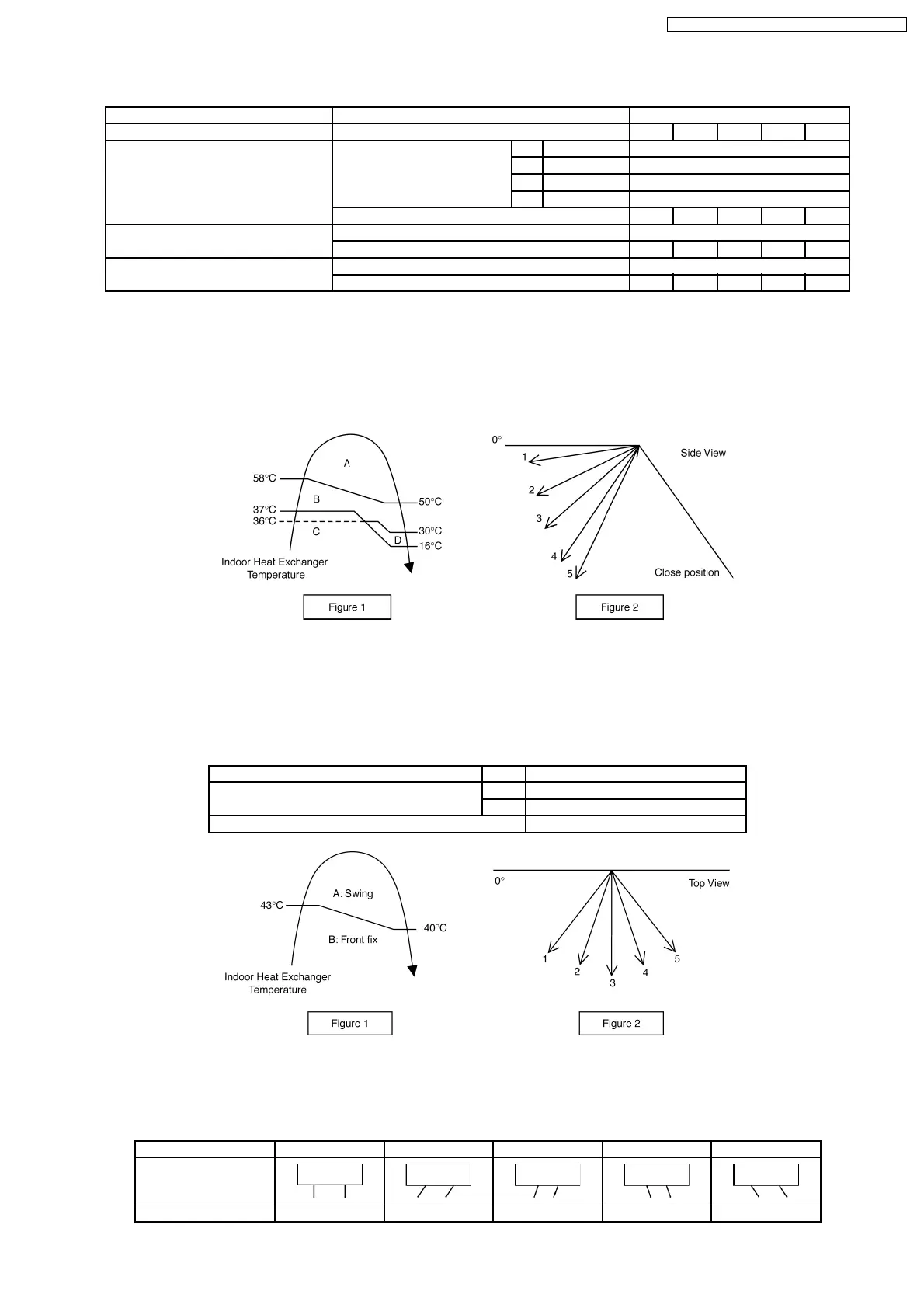

8.1.9.1. Vertical Airflow
Operation Mode Airflow Direction Vane Angle (°)
1 2 3 4 5
Heating Auto with Heat Exchanger A Upward fix 3
Temperature B Downward fix 64
C Upward fix 3
D Downward fix 3
Manual 3 17 33 49 63
Cooling, Soft Dry and Ion Auto 8~36
Manual 8 15 22 30 36
Mode Judgment in Auto Auto 8
Manual 8 15 22 30 36
1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated
above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1
below. When the air conditioner is stopped using remote control, the vane will shift to close position.
2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the positions
of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close position.
8.1.9.2. Horizontal Airflow
1. Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the angles as stated
below. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1
below.
Operation Mode Vane Angle (°)
Heating, with heat exchanger temperature A 65 ~ 115
B 90
Cooling, Soft Dry and Ion 65 ~ 115
2. Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below and the positions
of the vane are as Figure 2 above.
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 65 78 102 115
29
CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE
