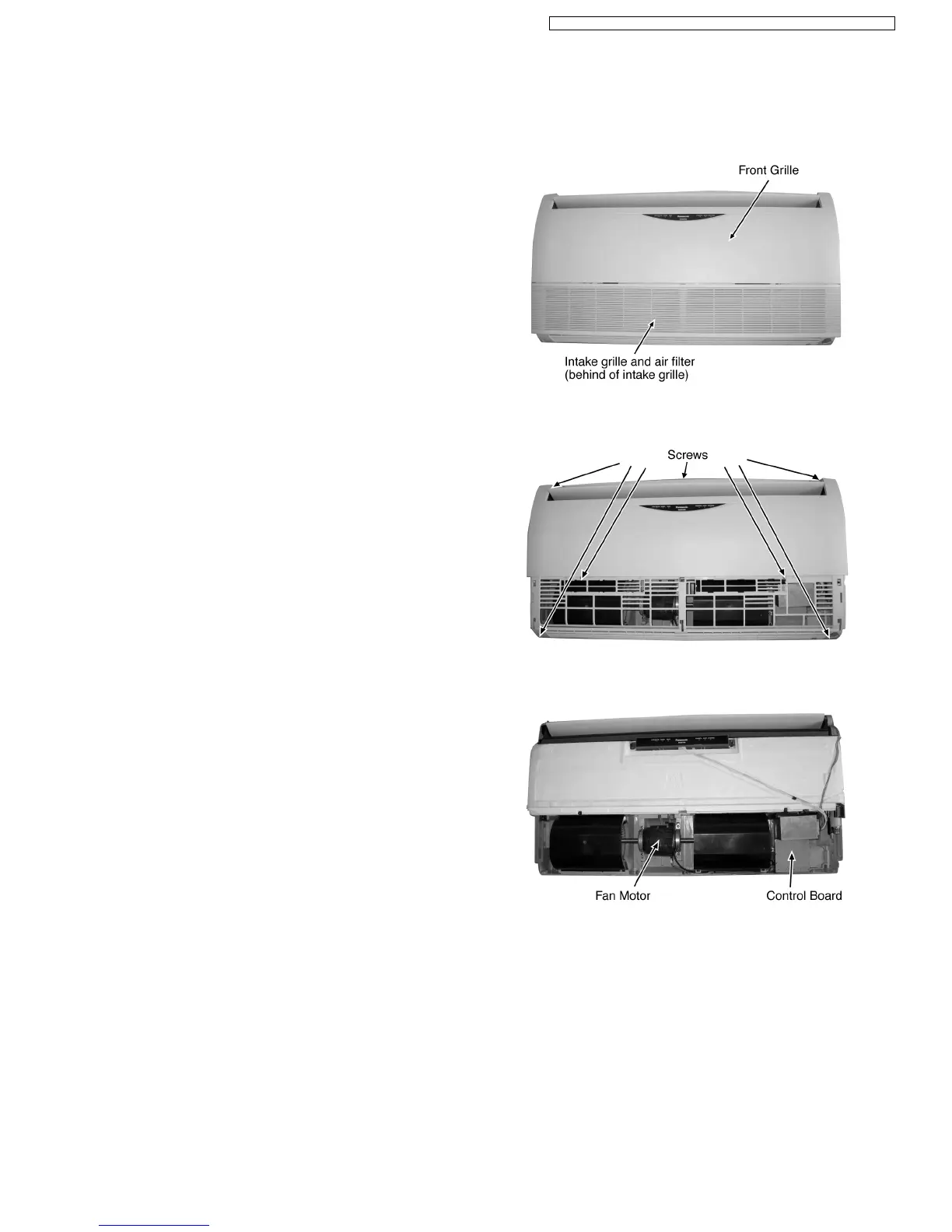

1. Remove the intake grille and air filter from the front grille
(Fig. 1).
2. Remove the front grille by removing the screws (Fig. 2).
3. Fan Motor and Control Board (Fig. 3).
(Fig. 1)
(Fig. 2)
(Fig. 3)
12.5. Disassembly of Parts
12.5.1. Front Grille Removal Procedure
69
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
