Panasonic CU-E18DBE

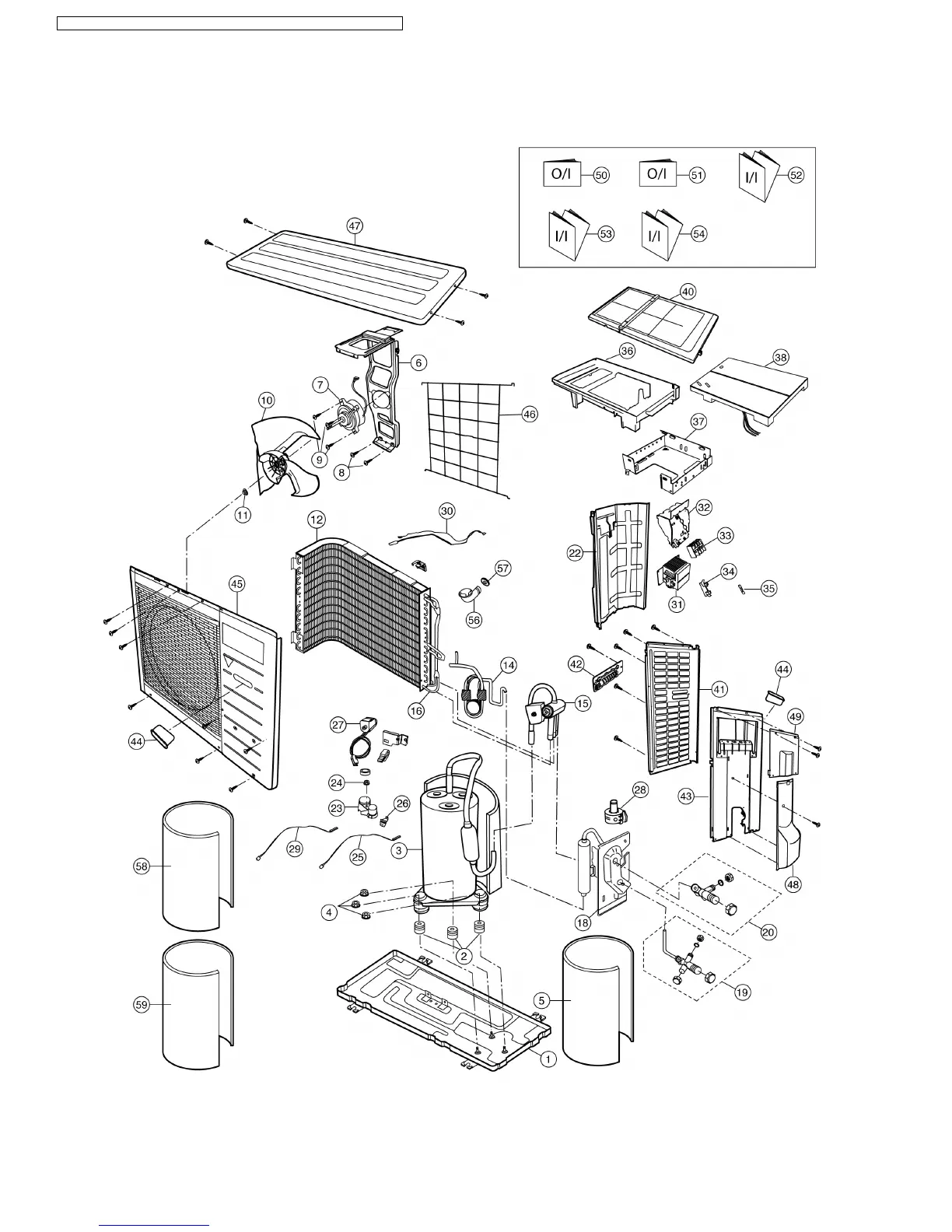

16 Exploded View (Outdoor Unit)
16.1. CU-E15DBE CU-E18DBE CU-E21DBE
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
78
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
