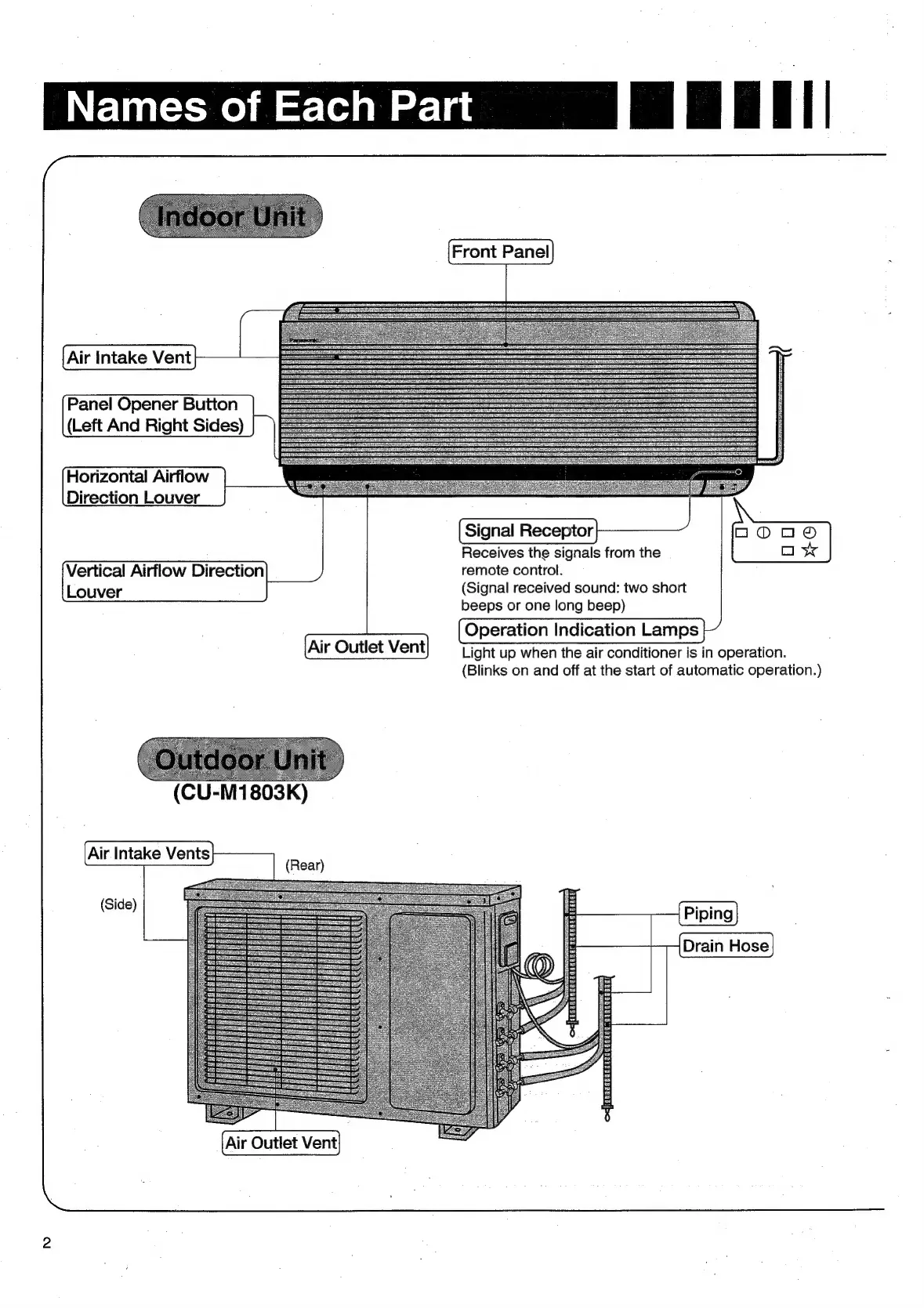

Front Panel
Panel Opener Button
(Left And Right Sides)
Horizontal Airflow
Direction Louver
Signal Receptor oOdOo®
Receives the signals from the
remote control.
(Signal received sound: two short
beeps or one long beep)
Operation Indication Lamps
Light up when the air conditioner is in operation.
(Blinks on and off at the start of automatic operation.)
Vertical Airflow Direction
Louver
Air Outlet Vent
(CU-M1803K)
Air Intake Vents
Es)
Teeeadaaecectageandicaned!
SL
Drain Hose
CERT TCETTE
oOuntl
Air Outlet Vent
