Panasonic CU-S24TKV - Page 72

72
CS-S9/12TKV
CS-S18/24/28TKV
* The horizontal vane angle tolerance is within +/- 5 degree.
12.4.2 Horizontal Airflow
 Automatic airflow direction can be set using remote control; the vane swings left and right within the angles as
stated below. It does not swing during fan motor stop.
Operation Mode Vane Angle (°)
Cooling and soft dry
65 ~ 115 (S9/12TK)
70 ~ 110 (S18/24/28TK)

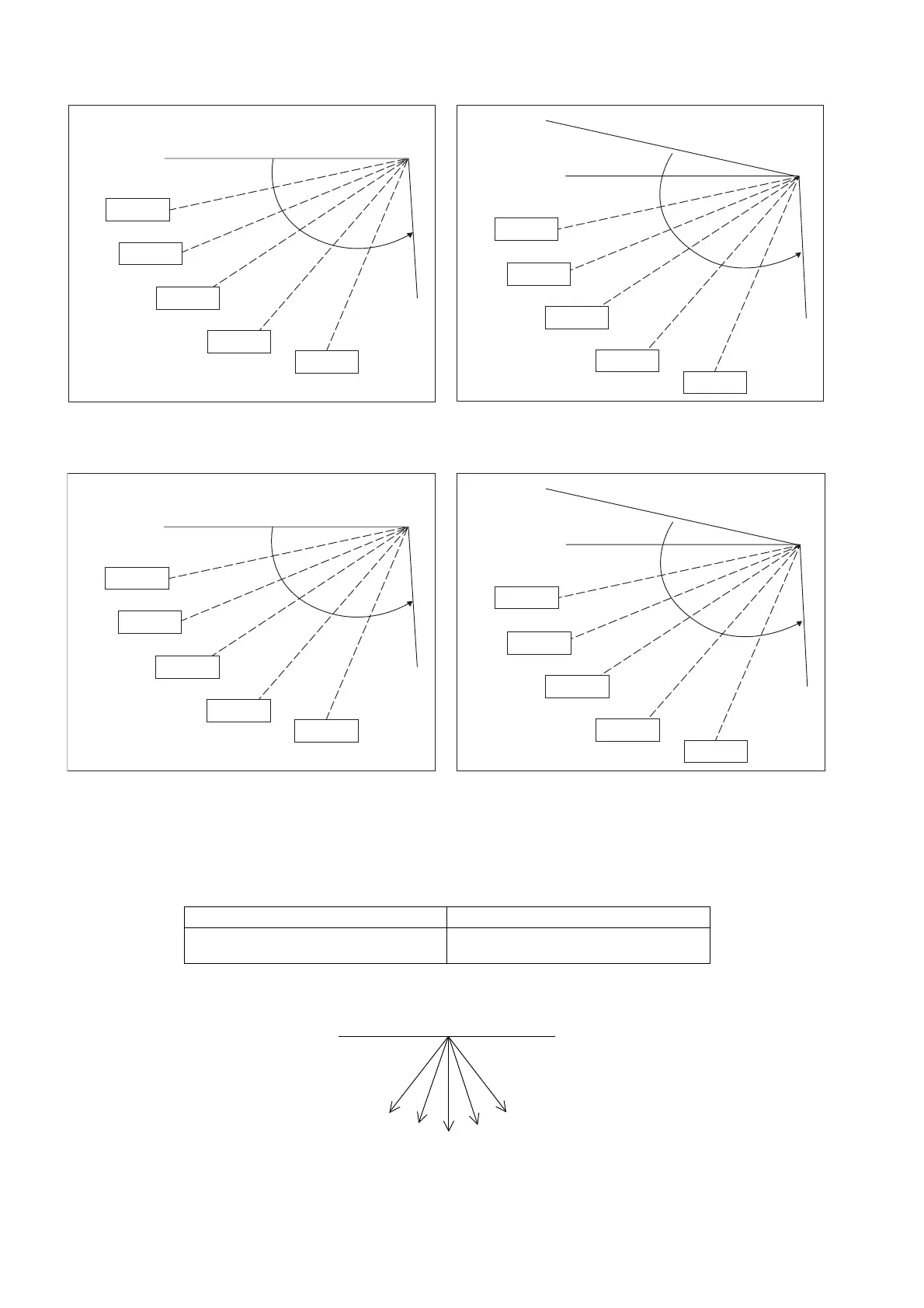

 Manual airflow direction can be set using remote control; the angles of the vane are as stated below and the
positions of the vane are as figure below:
Step 5
Step 4
Step 3
Step 2
Step 1
Reference point
Inner Vane Outer Vane
128°
Closed
Position
Step 5
Step 4
Step 3
Step 2
Step 1
Reference point
156°
Closed
Position
Step 5
Step 4
Step 3
Step 2
Step 1
Reference point
Inner Vane Outer Vane
148°
Closed
Position
Step 5
Step 4
Step 3
Step 2
Step 1
Reference point
101°
Closed
Position
0° Top View
2
3
1
4
5
