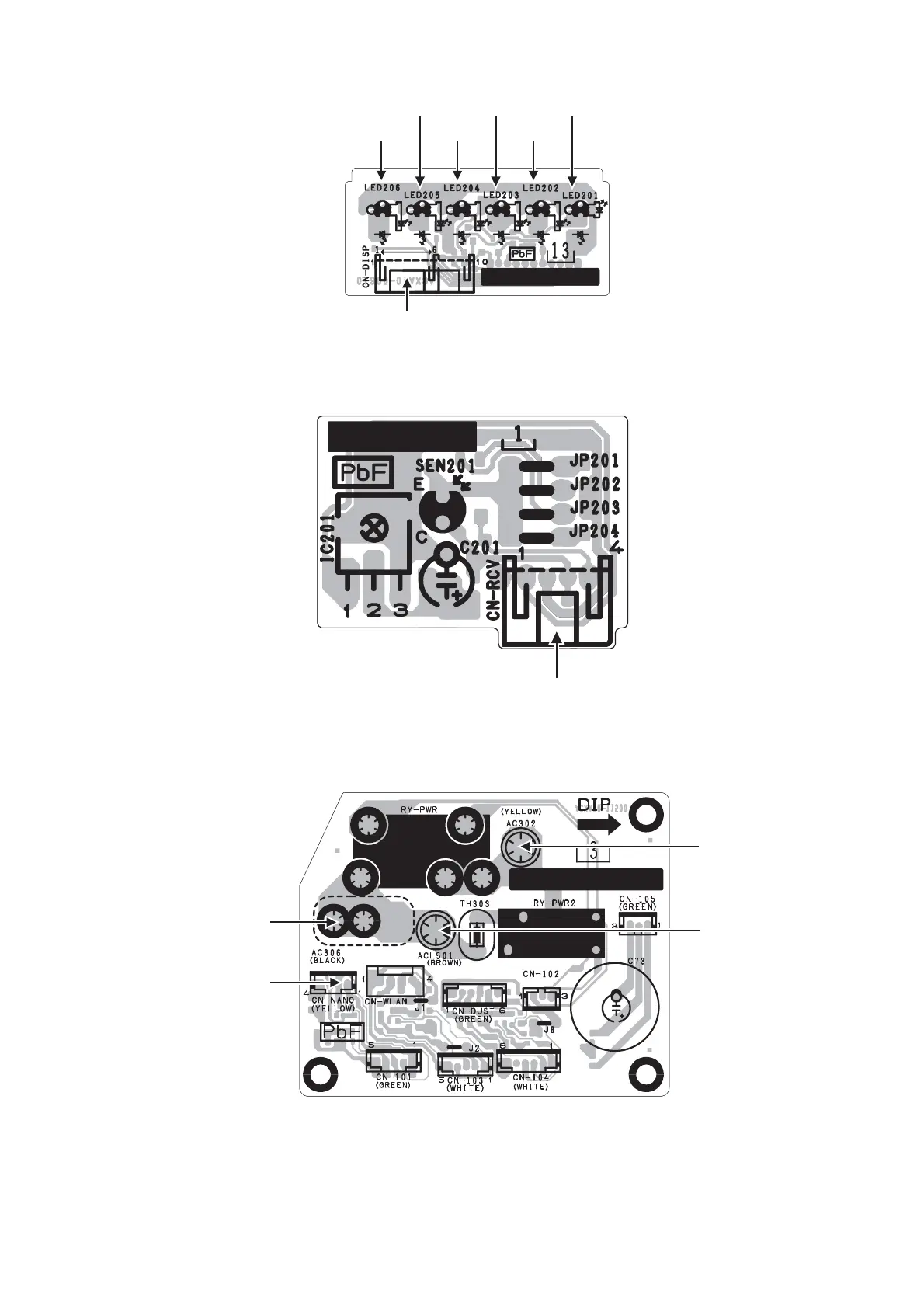

11.1.2 Indicator Printed Circuit Board (CS-Z20/25/35/42VKEW)
LED201LED203
LED206 LED204 LED202
LED205
CN-DISP
11.1.3 Receiver Printed Circuit Board (CS-Z20/25/35/42VKEW)
CN-RCV
11.1.4 Sub Printed Circuit Board
ACL501
AC302
CN-NANO
AC306
