82

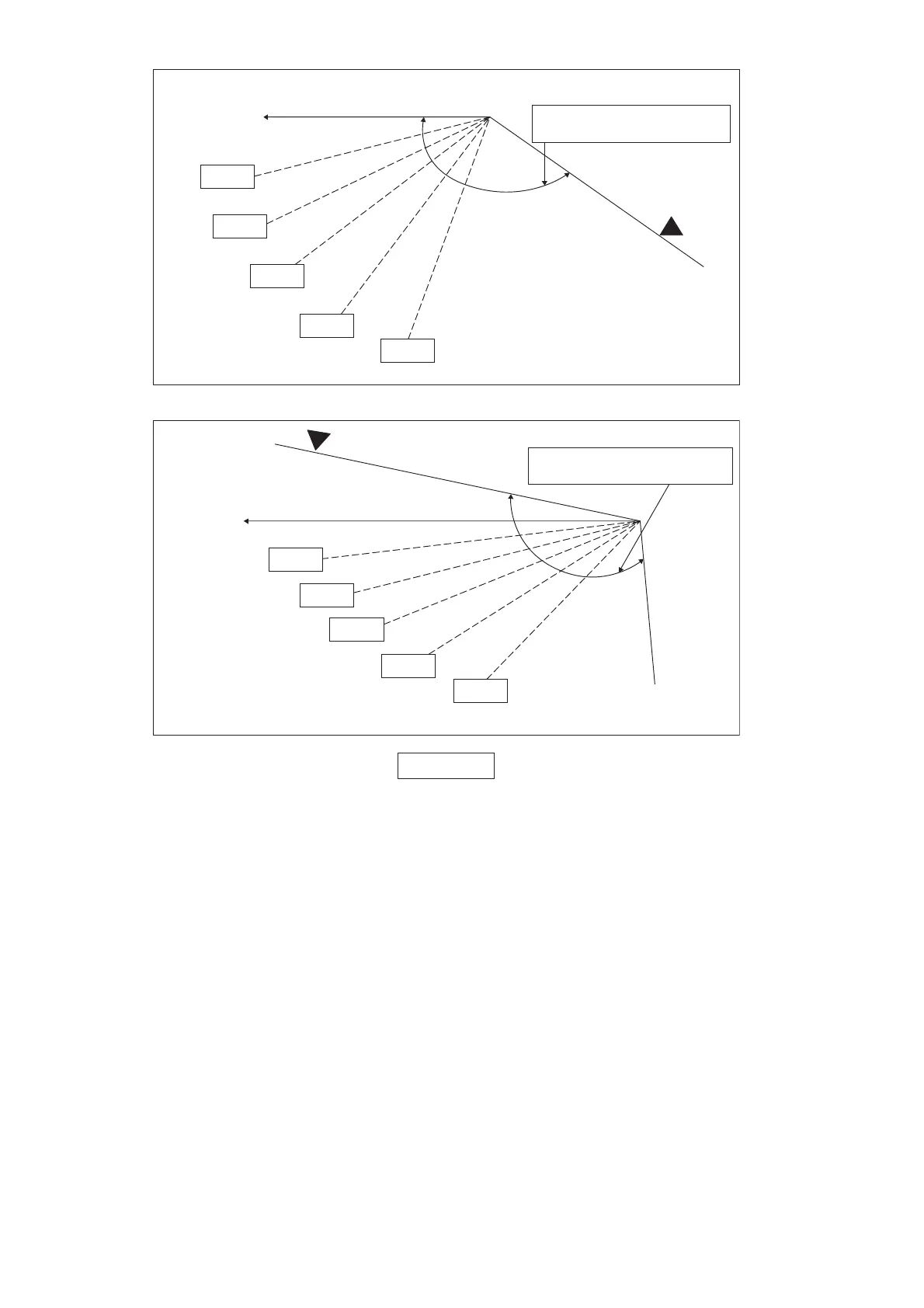

Side View (Inner Vane)
Reference point
Stopper
Closed
Position
Step 1
Step 2
Step 3
Step 4
Step 5
128º (Z20/25/35/42VK & XZ20/25/35VK)
148º (Z50/71VK & XZ50VK)
Side View (Outer Vane)
Stopper
Closed
Position
Step 1
Step 2
Step 3
Step 4
Step 5
156º (Z20/25/35/42VK & XZ20/25/35VK)
101º (Z50/71VK & XZ50VK)
Reference point
Figure 2
* The horizontal vane angle tolerance is within +/- 5 degree.
