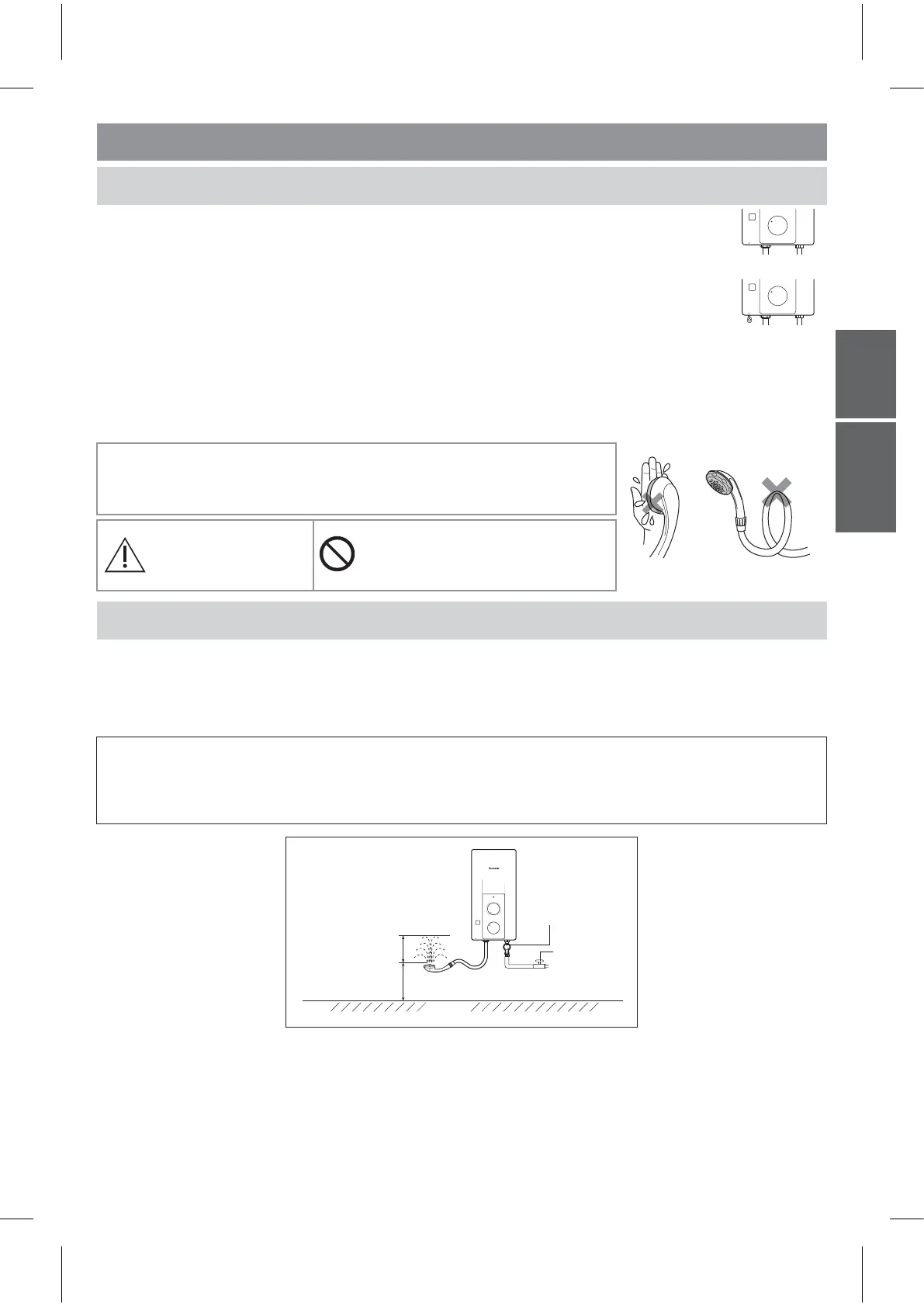

Panasonic DH-3RL1 - How to Use Electric Home Shower; Operating Instructions; Water Flow Rate Adjustment

- 15 -
Floor
H = 100
cm ~ 110 cm
Waist Height
1. HOW TO USE
1. Turn the Water Volume Knob clockwise to turn on the water (make sure the Main Water Valve is on).
(Water will flow out from Shower Head at inlet water temperature).
2. Switch on the Miniature Circuit Breaker (MCB) and ON/OFF DP (double pole) Switch.
3. Push the ELB Reset Lever if it is down.
4. Turn the Main Switch Knob to “On” (ELB Lamp will light). Use the Main Switch Knob before and after
bathing. This knob control the flow of electricity to the unit.
5. The shower temperature can be gradually controlled by turning the Power Control Knob.
If the Power Control Knob is turned clockwise, the shower temperature will increase, reaching the highest
temperature at “High”.
• If the Water Volume Knob is turned clockwise the volume of water will increase thus the water
temperature will decrease.
• If the Water Volume Knob is turned anticlockwise the volume of water will decrease thus the water
temperature will increase. (Please refer WATER FLOW RATE ADJUSTMENT below).
6. After using this Unit, please turn off the Main Switch Knob and turn off the water supply by turning the
Water Volume Knob anticlockwise until the water flow is completely stop.
Note: In case of no water supply, close the Water Volume Knob by turn it anticlockwise
and make sure the Main Switch Knob and the Power Knob is in "Off" condition (ELB
light is off). This to prevent unnecessary water flow from the Shower Head after the
water supply recovered.
2. WATER FLOW RATE ADJUSTMENT
(1) Maximum water flow rate can be adjusted by using the Main Water Valve.
Step 1: Turn "OFF" the Main Water Valve.
Step 2: Turn the Shower Head upward at waist height.
Step 3: Turn the Water Volume Knob clockwise to maximum volume position.
Step 4: Gradually turn "ON" the Main Water Valve and adjust the splashing height (H) of the shower.
It is recommended to adjust the water splashing height (H) at 100
cm ~ 110 cm (approximately 3 L/min).
Note: 1. After setting maximum flow rate, please use Water Volume Knob to turn on and turn off the water supply.
2. Pay attention to shower temperature when reducing the volume of water.
The shower temperature will become very hot if the water flow rate is too low.
3. In case of continuous usage at high temperature setting, water temperature will increase and the control
device will activate temporary resulting the water temperature to drop.
HOW TO USE ELECTRIC HOME SHOWER
Water Volume
Knob
Main Water
Valve
Do not block the Shower Head with hand,
towel or bend the Shower Hose. The water
flow rate will drop and water temperature
may become very hot.
CAUTION
ENGLISH
OPERATION
ELB: On condition
ELB: Off condition
ELB
DH-3RL1
Off High
Off
ELBTest
ELBReset
PushUp
On
P
o
w
e
r

C
o
n
t
r
o
l
M
a
i
n

S
w
i
t
c
h
ELB
DH-3RL1
Off High
Off
ELBTest
ELBReset
PushUp
On
P
o
w
e
r

C
o
n
t
r
o
l
M
a
i
n

S
w
i
t
c
h
ELB
DH-3RL1
Off High
Off
ELBTest
ELBReset
PushUp
On
P
o
w
e
r

C
o
n
t
r
o
l
M
a
i
n

S
w
i
t
c
h
O
P
E
N
C
L
O
S
E
FILTER
CLEANING
OFF
MAX
