• While writing to/reading from the media, do not switch the
unit to standby mode or remove the media. Such action
may result in loss of the media contents.
• When inserting the media, ensure that it is facing the right
way up.

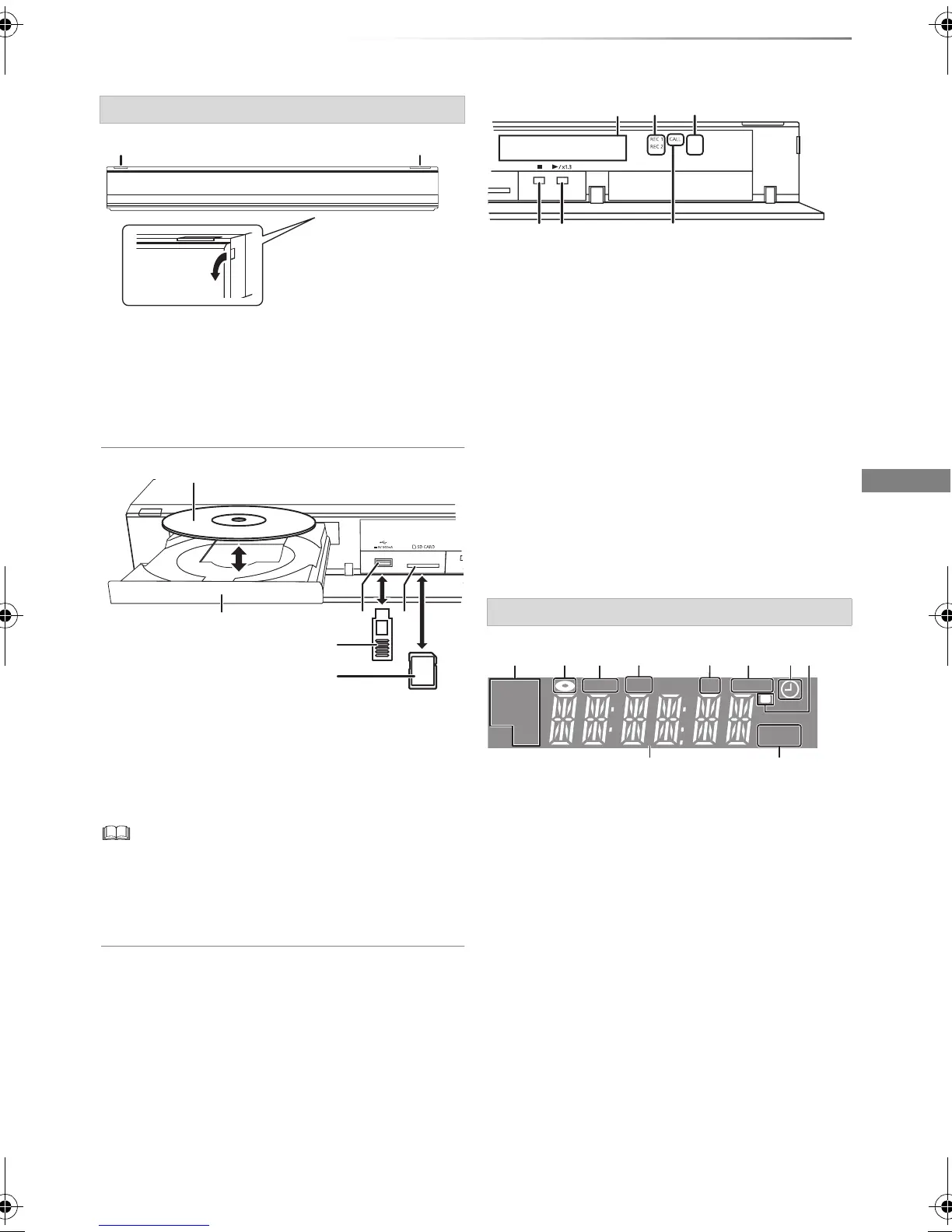

Main unit
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Open/close disc tray
3 Disc tray
4 USB port
5 SD card slot
• When removing the SD card, press on the
centre of the card and pull it straight out.
Pull to flip down the
front panel.
6 Recording indicator
• The indicator will light up while recording.
• The indicator will blink while recording is
paused and before recording starts.
7 Remote control signal sensor
• Angle: Approx. 20° up and down, 30° left and
right
• Distance: Within approx. 7 m in front of the
unit
8 Stop
9 Start play
: CALL LED
• The LED will light up when this unit receives
incoming call etc. of the video
communication. (> 73)
Display
1 Drive (HDD, BD or SD) indicator
2 Disc indicator
3 Copying indicator
4 USB port indicator
5 SD card slot indicator
6 EXT LINK indicator
7 Timer recording indicator
• This indicator lights up when the timer
recording standby is activated.
8 Remote control signal indicator
9 Main display section indicator
- Current time
- Playback counter
- Various messages (> 106)
10 Playback indicator
PLAY
COPY
EXT -L
SDUSB
HDD
SD
BD
12 567843
910
