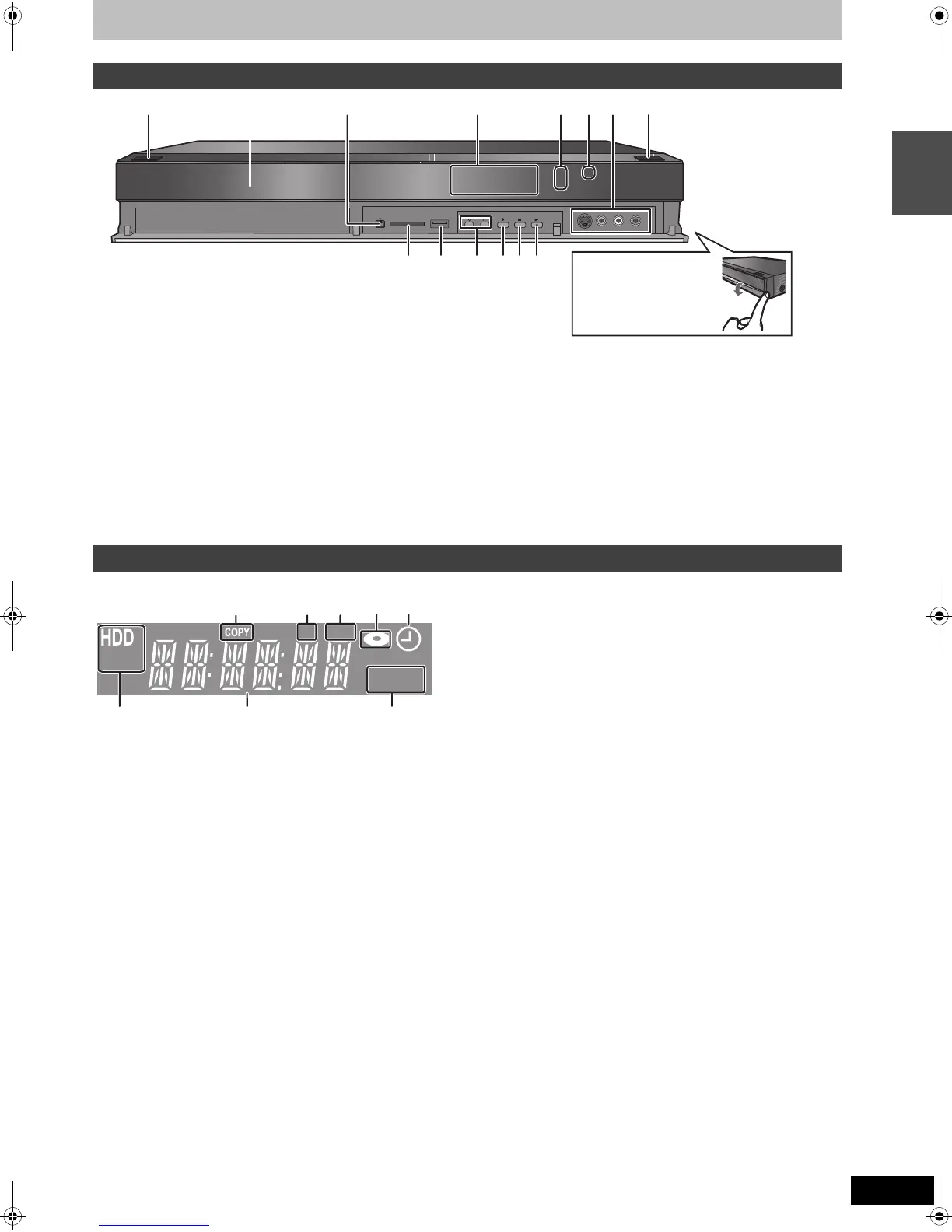

1Standby/on switch (Í/I) (➡ 18)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2Disc tray (➡ 15)
3Connection for digital video (DV) camcorder (➡ 54)
4Display (➡ below)
5Recording indicator
6Remote control signal sensor
7Connection for VCR, camcorder etc. (➡ 53, 54)
8Open/close disc tray (➡ 15)
9SD card slot (➡ 15)
:USB port (➡ 15)
;Channel select (➡ 23)
<Start recording (➡ 23)/Specify a time to stop recording (➡ 23)
=Stop (➡ 23, 38)
>Start play
Rear panel terminals (➡ 16, 17, 91–94)
1Copying indicator
2SD card slot indicator
3USB port indicator
4Disc indicator
5Timer recording indicator
6Drive (HDD, DVD or SD) indicator
7Main display section indicator
8Playback indicator
≥Indicators for functions that this unit does not support will not light.
Main unit
Pull to flip down the front
panel.
The unit’s display
PLAY
SD USB
SDVD
Control reference guide
