36

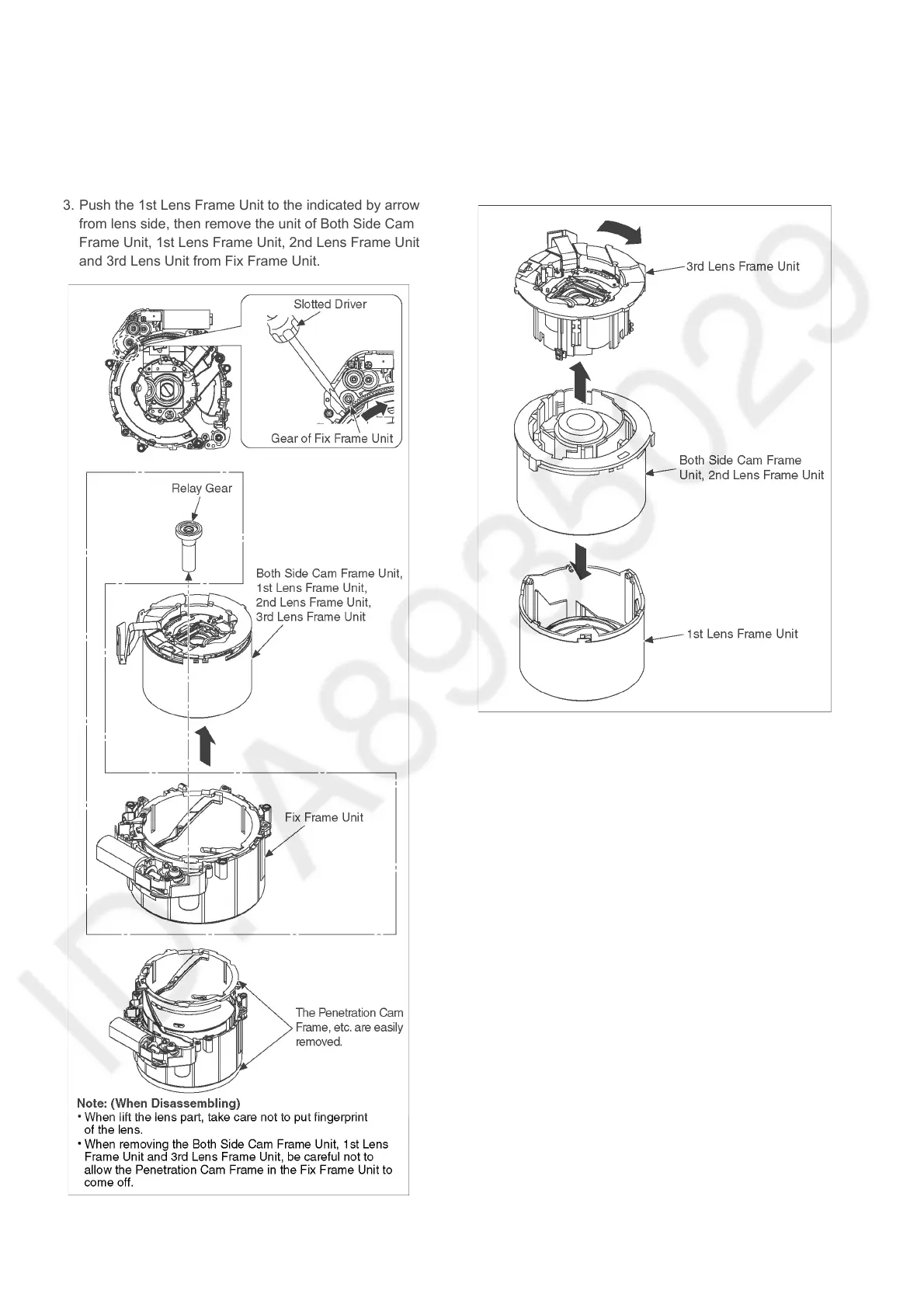

9.4.2. Both Side Cam Frame, 1st Lens
Unit, 2nd Lens Unit and 3rd Lens
Unit
1. Pull out the Relay Gear using tweezers, etc.
2. Turn the Gear of Fix Frame Unit using Slotted Driver, etc.
in the direction of arrow.
3. Push the 1st Lens Frame Unit to the indicated by arrow
from lens side, then remove the unit of Both Side Cam
Frame Unit, 1st Lens Frame Unit, 2nd Lens Frame Unit
and 3rd Lens Unit from Fix Frame Unit.
9.4.3. Removal of the 1st Lens Frame Unit
and 3rd Lens Frame Unit
1. Turn the 3rd Lens Frame Unit in the direction of arrow
fully.
2. Remove the 1st Lens Frame Unit and 3rd Lens Frame
Unit from the Both Side Cam Frame Unit.
