40

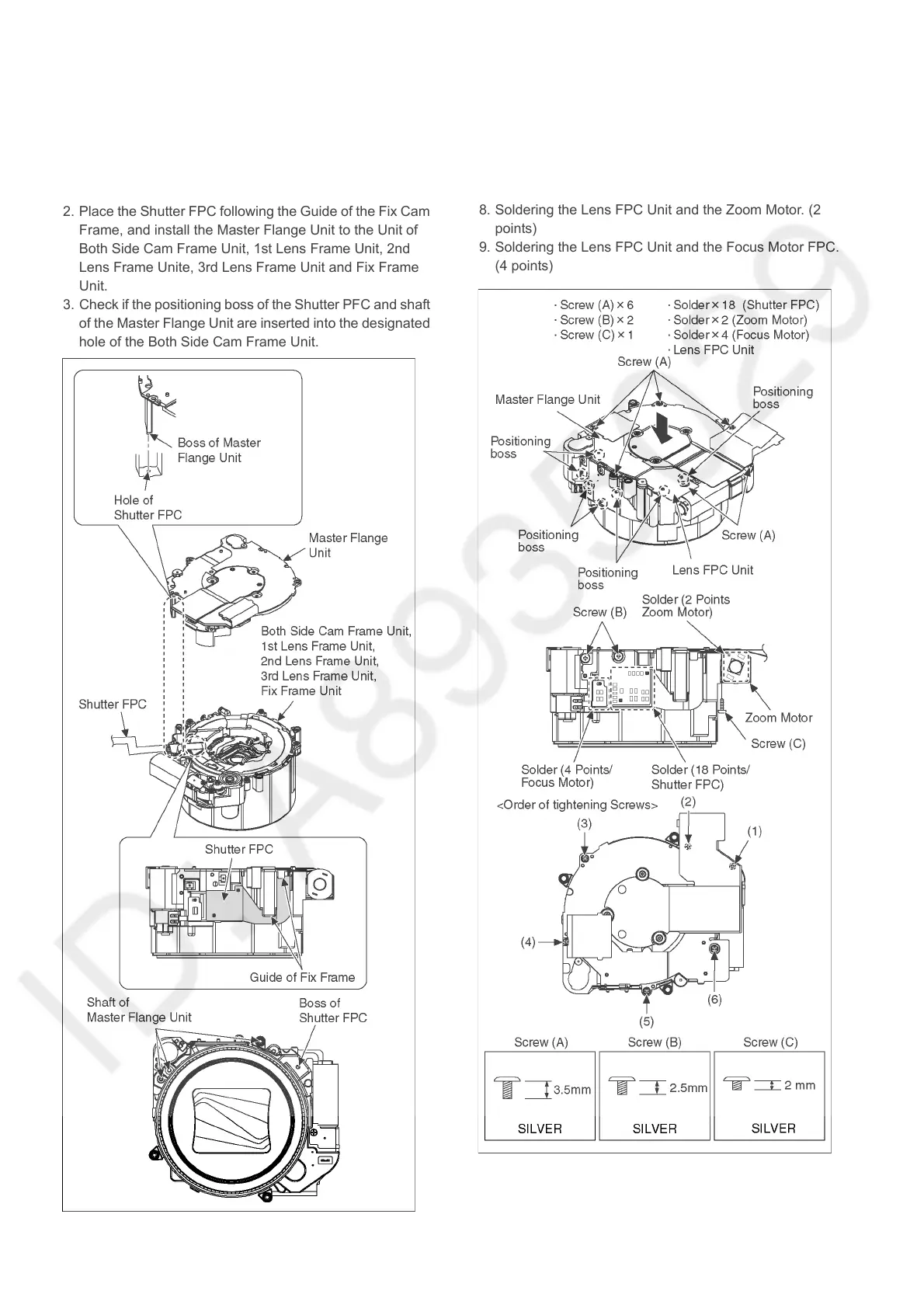

9.5.5. Insert the Master Flange Unit
Note: (When Installing)
Take Care not to damage the flex.
Take Care not to tuck in to the Master Flange Unit, When
inserting the Shutter FPC.
1. Push the Hole of the Shutter FPC to the Boss of the
Master Flange Unit tightly.
2. Place the Shutter FPC following the Guide of the Fix Cam
Frame, and install the Master Flange Unit to the Unit of
Both Side Cam Frame Unit, 1st Lens Frame Unit, 2nd
Lens Frame Unite, 3rd Lens Frame Unit and Fix Frame
Unit.
3. Check if the positioning boss of the Shutter PFC and shaft
of the Master Flange Unit are inserted into the designated
hole of the Both Side Cam Frame Unit.
4. Attach the Master Flange Unit, then tighten 6 screws (A).
5. Attach the sensor for Focus Motor of Lens FPC Unit, then
tighten 2 screws (B).
6. Attach the sensor for Focus Motor of Lens FPC Unit, then
tighten 1 screw (C).
7. Soldering the Lens FPC Unit and the Shutter FPC. (18
points)
8. Soldering the Lens FPC Unit and the Zoom Motor. (2
points)
9. Soldering the Lens FPC Unit and the Focus Motor FPC.
(4 points)
To Next Page
