Overview
Instructions for operations are generally described using the
remote control in these operating instructions.

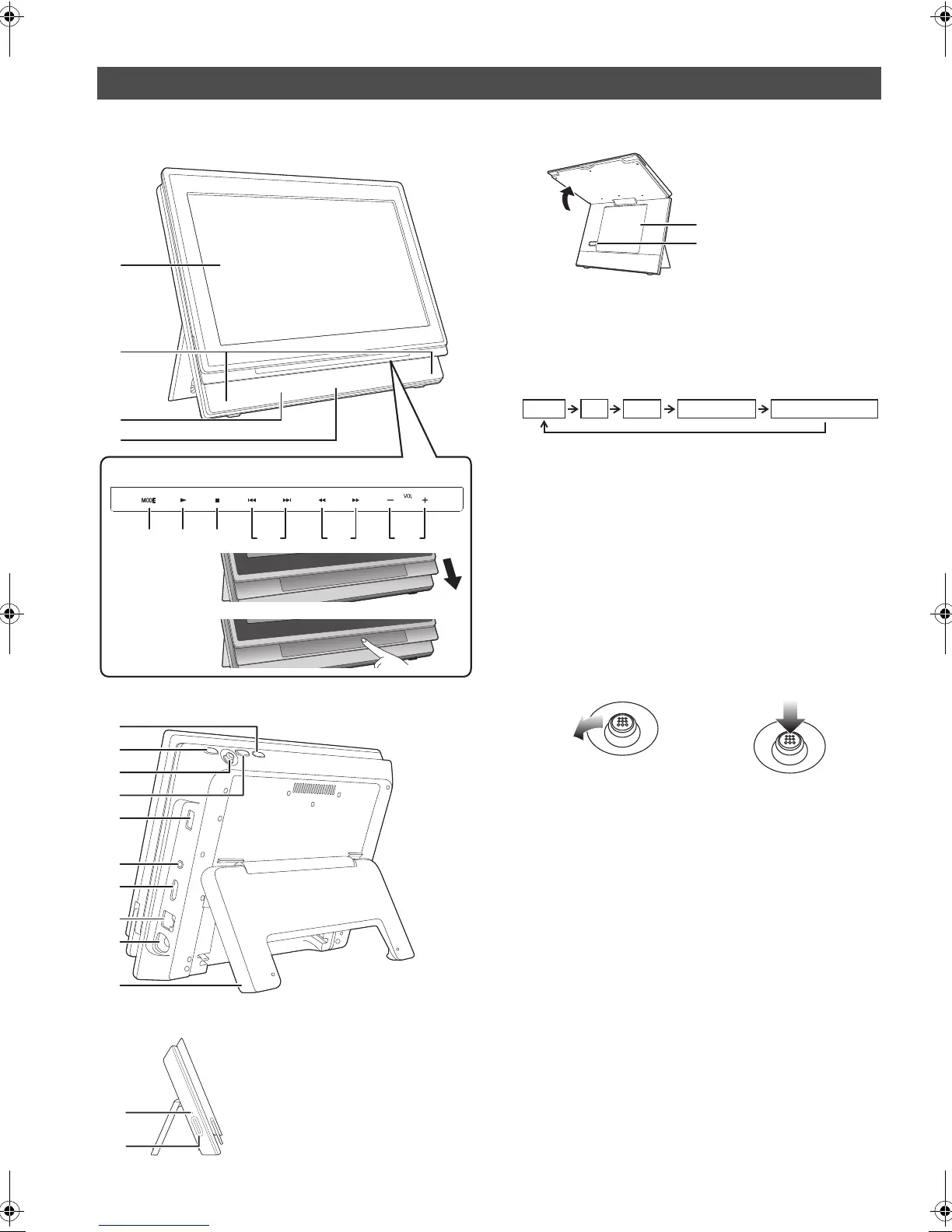

Front View
Rear View
Side View
1 LCD screen
2 Speaker
3 [CHARGE] indicator (> 11)
While recharging the battery pack, this indicator lights up.
4 Remote control signal sensor (> 9)
5 Switch the drive to playback
It will switch every time it is pressed.
6 Playback (> 14)
7 Stop (> 16)
8 Skip title numbers, etc. (> 16)
9 Search/Slow-motion (> 16)
10 Adjust the volume (> 14)
11 Turn the unit on and off (> 11)
12 Return to previous screen
13 Selection/OK
14 Show the OPTION menu
15 USB port
16 Headphone terminal [Ë]
(‡ 3.5 mm stereo mini jack)
17 HDMI AV OUT terminal (> 28)
18 LAN terminal (> 31)
19 DC IN terminal (> 10)
20 Stand (> 10)
21 SD card access indicator (> 13)
22 SD card slot (> 13)
The Unit
1
3
4
2
9 10
5
6
7
8
Operation Panel
1 Pull out the
panel
2 Touch lightly
with a finger
When the screen is opened
Disc lid
[OPEN]
To select:
Tilt up, down, left, or right
([3, 4, 2, 1])
Example:
To select left item
To enter:
Press straight in
Example:
To enter the operation
DISC SD
USB
NETWORK PHOTO FRAME
