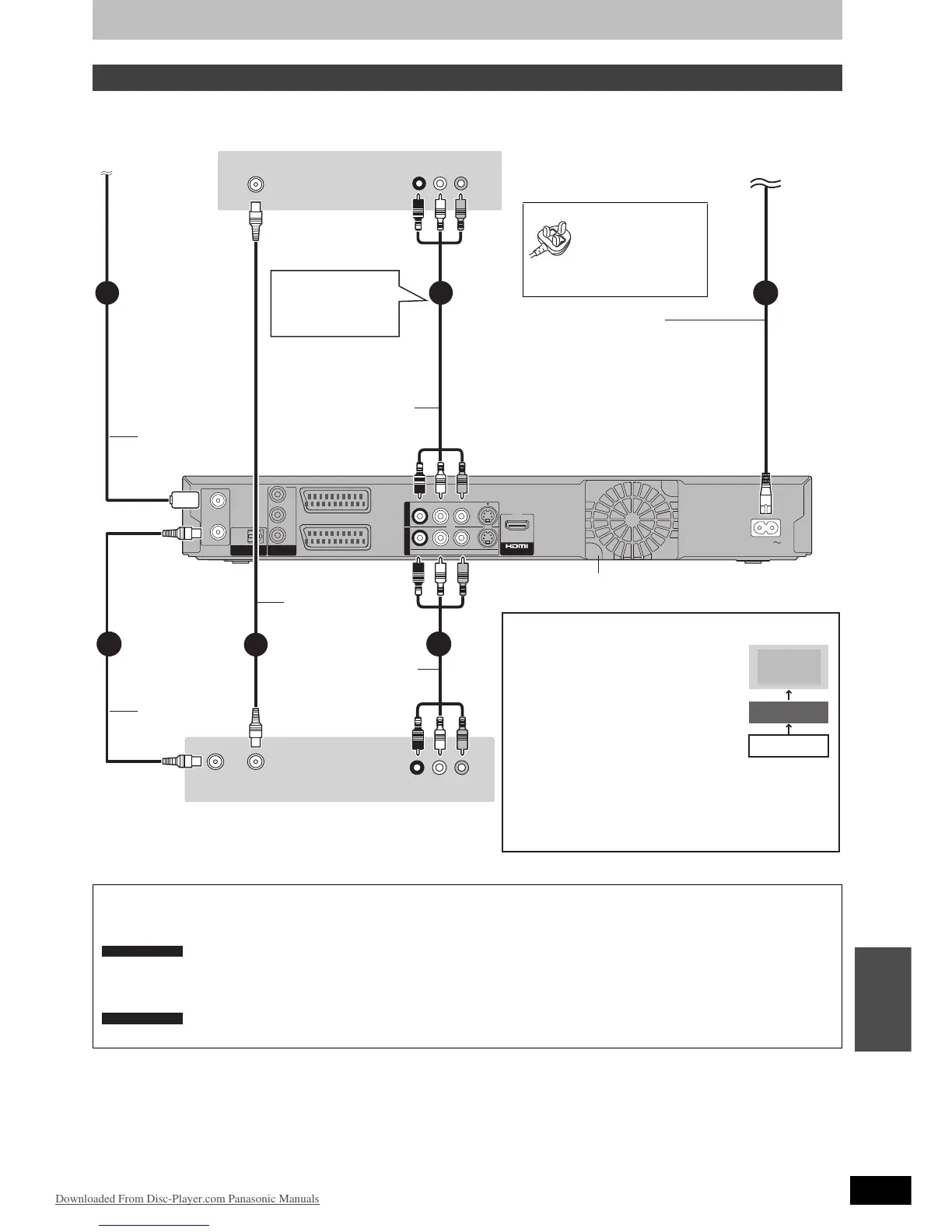

To the aerial
Aerial cable
Cooling fan
RF coaxial cable
(included)
This unit’s rear panel
Television’s rear panel
VCR’s rear panel
AC mains lead
(included)
Connect only after all other
connections are complete.
RF coaxial cable
Connect the unit directly to the television
If you connect the unit through an AV
selector or video cassette recorder to the
television, video signal will be affected by
copyright protection systems and the picture
may not be shown correctly.
Televisi on
VCR
This unit
≥When connecting to a television with a built-in VCR
Connect to the input terminals on the television side if there
are both television and VCR input terminals.
[For\Saudi\Arabia[
BE SURE TO
READ THE
CAUTION FOR
THE AC MAINS
LEAD ON PAGE
2 BEFORE
CONNECTION.
To household mains socket
[For]New]Zealand]
(AC 220 to 240 V, 50 Hz)
[For]Asia]and]Middle]East]
(AC 220 to 240 V, 50/60 Hz)
Audio/Video cable
(included)
Audio/Video cable
[For]Middle]East]
Use the AC mains lead that matches
the socket for the area you live in.
[For]Asia]
AC mains lead with a label is for
Thailand.
AC mains lead without a label is for
areas other than Thailand.
Other connections
(> 9, 63)
DO NOT
Connecting to a television with 21-pin Scart terminal
You can also connect with the AV1 terminal on this unit using the 21-pin Scart cable.
If your television is equipped with RGB input capability, by connecting with a fully wired 21-pin Scart cable you can see video using RGB
output on this unit.
“AV1 Output” in the Setup menu (> 60)
Connecting to a VCR with 21-pin Scart terminal
You can also connect with the AV2 terminal on this unit using the 21-pin Scart cable.
“AV2 Input” in the Setup menu (> 60)
