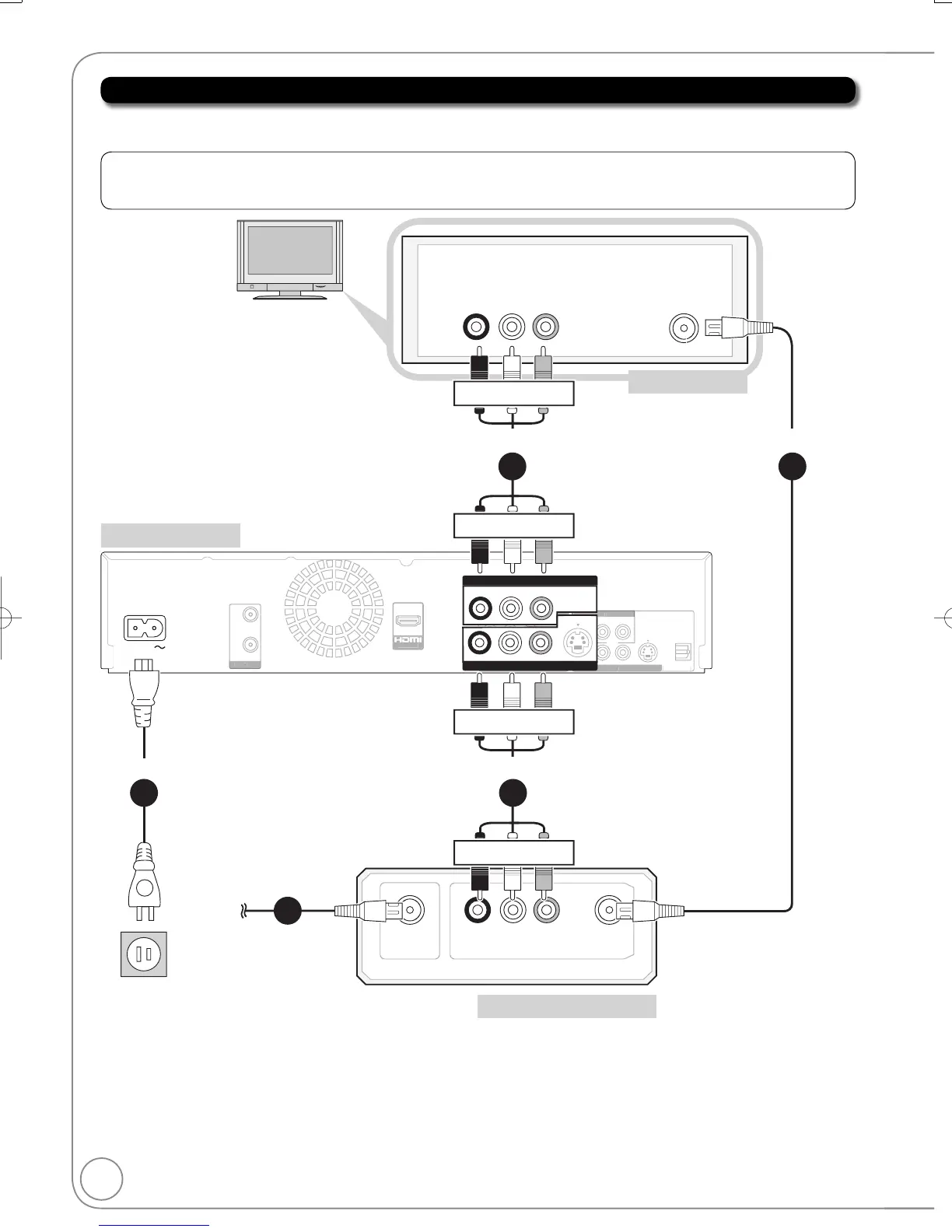

Connecting to a Television and a Satellite Receiver
 75  coaxial cable from the satellite antenna to the “SATELLITE IN” on the satellite
receiver.
 75  coaxial cable (included) from the “RF OUT” on the satellite receiver to the
“VHF/UHF RF IN” on the TV.
 Audio/video cable (included) from the “DVD/VHS COMMON OUT” on the unit to the “AV
IN” on the TV.
 Audio/video cable from the “AV OUT” on the satellite receiver to the “IN1” on the unit.
 AC power supply cord (included) from the “AC IN” on the unit to a household AC outlet.
 Consult your satellite service provider about the appropriate satellite receiver to use.
 Additional coaxial cable and audio/video (AV) cable are required.
Note: The terminals on the rear of your TV and satellite receiver may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
