Panasonic DMR-EZ485VK

8
RQT9056

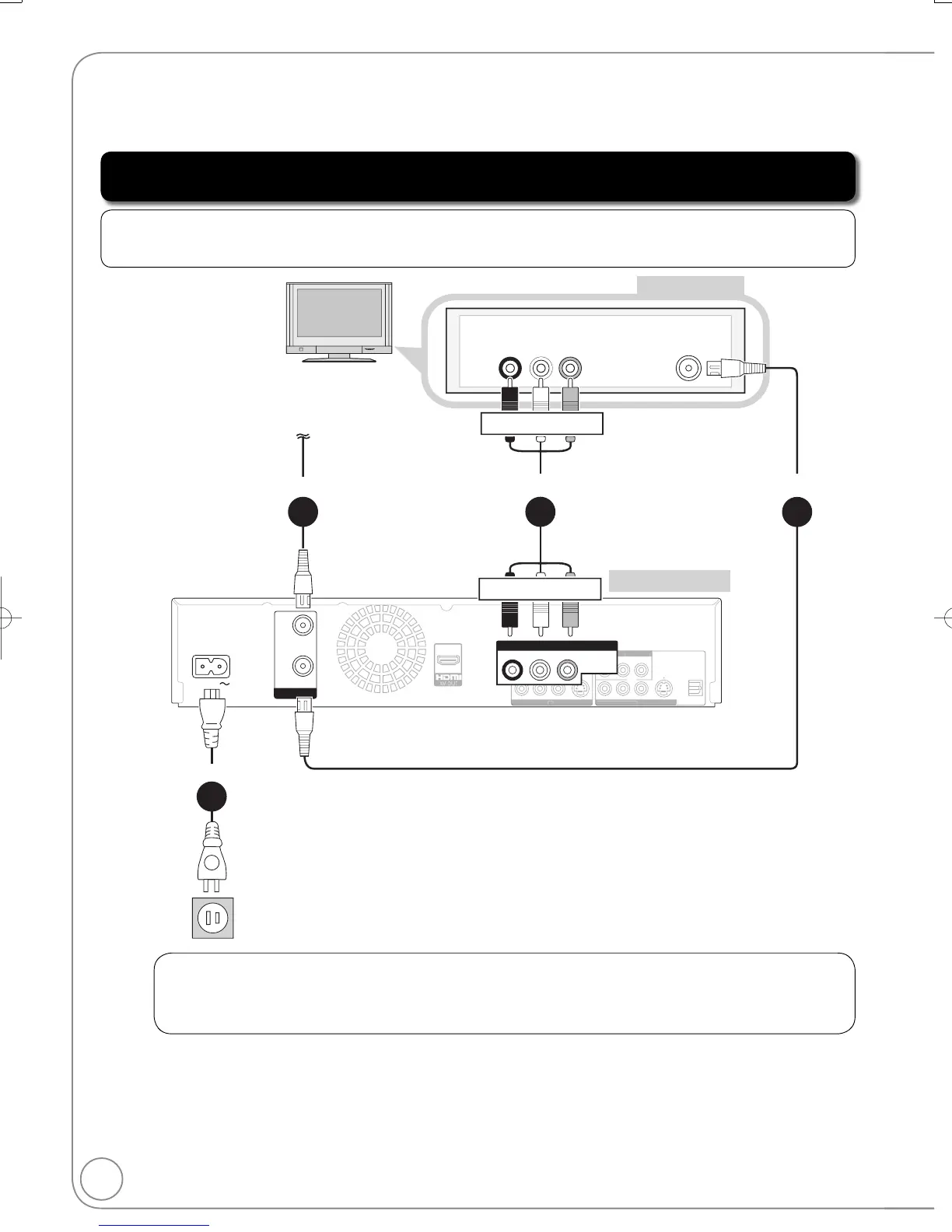

Basic Connection
Note: The terminals on the rear of your TV may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
Connecting to a Television with Direct Cable or Antenna (No Cable Box or Satellite
Receiver)
 75  coaxial cable from the wall or antenna signal to the “RF IN” on the unit.
 75  coaxial cable (included) from the “RF OUT” on the unit to the “VHF/UHF RF IN” on
the TV.
 Audio/video cable (included) from the “DVD/VHS COMMON OUT” on the unit to the “AV
IN” on the TV.
 AC power supply cord (included) from the “AC IN” on the unit to a household AC outlet.
RF
OUT
RF
IN
VHF / UHF
AC IN
OPTICAL
VIDEO
R-AUDIO-L
P
R
Y
P
B
DIGITAL AUDIO OUT
(
PC
M
/
BITSTREAM
)
S VIDEO
R-AUDIO
VIDEO
VIDEO
R-AUDIO-L
-L
S VIDEO
O
(
)
COMPONENT
VIDEO OUT
DVD/VHS COMMON OUT
DVD PRIORITY OUT
IN1
DVD/VHS COMMON OUT
VIDEO
R-AUDIO-L
VHF/UHF
RF IN
AUDIO IN VIDEO
IN
RL
2
1
3
4
Cable from the wall
or antenna signal
Red White Yellow
Rear of TV
To a household AC outlet
(AC 120 V, 60 Hz)
step
step
step step
Rear of this unit
Red White Yellow
The connection diagrams represent typical installations. These diagrams may not work with certain in-
house cable systems, master antenna installations, or situations where TV programming is delivered using
methods that differ from industry accepted practices. If you require assistance with connections, please
contact Panasonic at 1-800-211-7262 (for U.S.A.) or 1-800-561-5505 (for Canada).
Connection (with Audio/Video cable)
Connect in numbered order  to .
After this connection, set the RF output channel “OFF” (12).
Connection (without Audio/Video cable)
You do not need to connect .
After this connection, set the RF output channel “CH3” or
“CH4” (12).
