Panasonic DP-1820E - Problem Solving; Removing Misfed Paper (ADF: Option for DP-1520 P;1820 P;1820 E); Removing Misfed Paper (i-ADF: Option for DP-1820 E); Removing Misfed Paper (2 nd;3 rd;4 th Paper Tray: Option)

14
Getting To Know Your Machine
Paper Tray
Misfed Paper
Feed Cover
ADF Tray
Exit Unit
Misfed Paper
ADF Cover
Misfed Paper
ADF Cover
Problem Solving

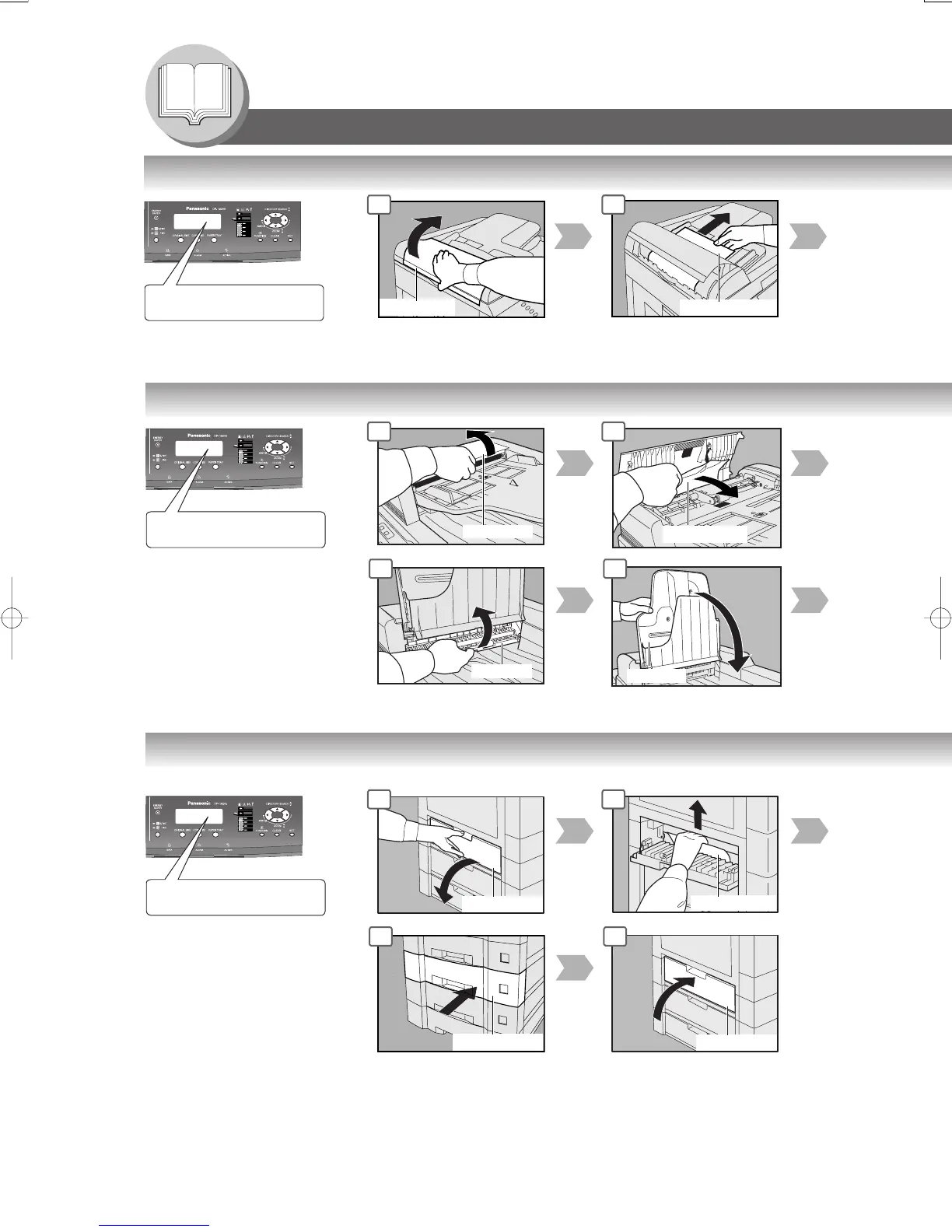

● Removing Misfed Paper (ADF: Option for DP-1520P/1820P/1820E) (J70, J71, J79, J92, J93)
1 2
● Removing Misfed Paper (i-ADF: Option for DP-1820E) (J70, J71, J72, J73, J76, J78, J79, J92, J93)
6 7
● Removing Misfed Paper (2nd/3rd/4th Paper Tray: Option)
(J02, J03, J04, J07, J08, J09, J12, J13, J14, J22, J23, J24)
Feed Cover
1 2
6 7
1 2
REMOVE MISFED PAPER
J70
REMOVE MISFED PAPER
J70
REMOVE MISFED PAPER
J02
(Ex.)
(Ex.)
(Ex.)
