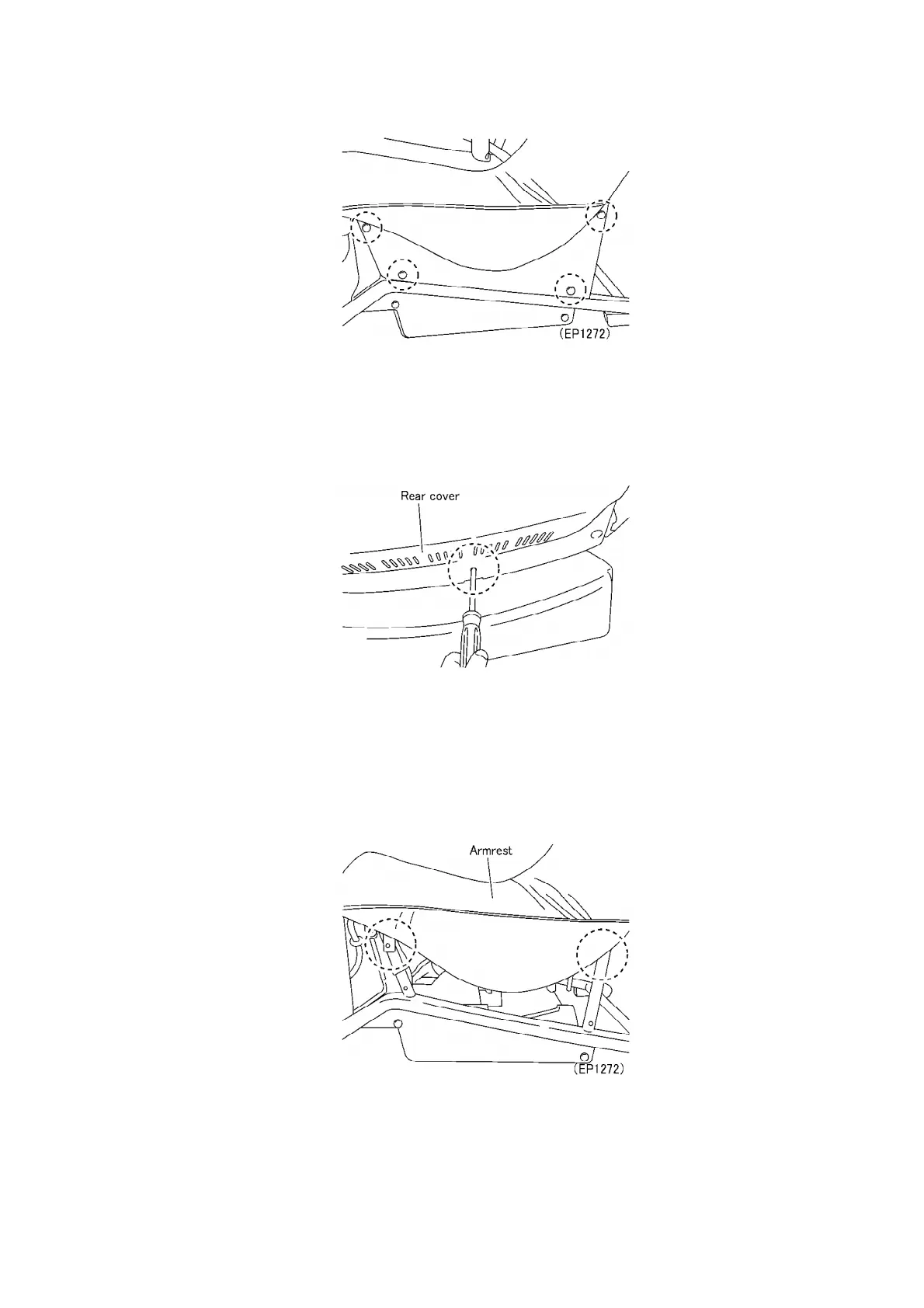

3. Insert a screwdriver and unlock the lock and fall the Upper main
body forward.
* Be careful that the Upper main body may fall forward suddenly.
4. Unscrew two screws on each outer sides, and remove the Velcro
tape on each inner sides and uncsrew one screw with washers.
After unscrewing screws on inner sides, lift the Upper main body
to the original position.
12
