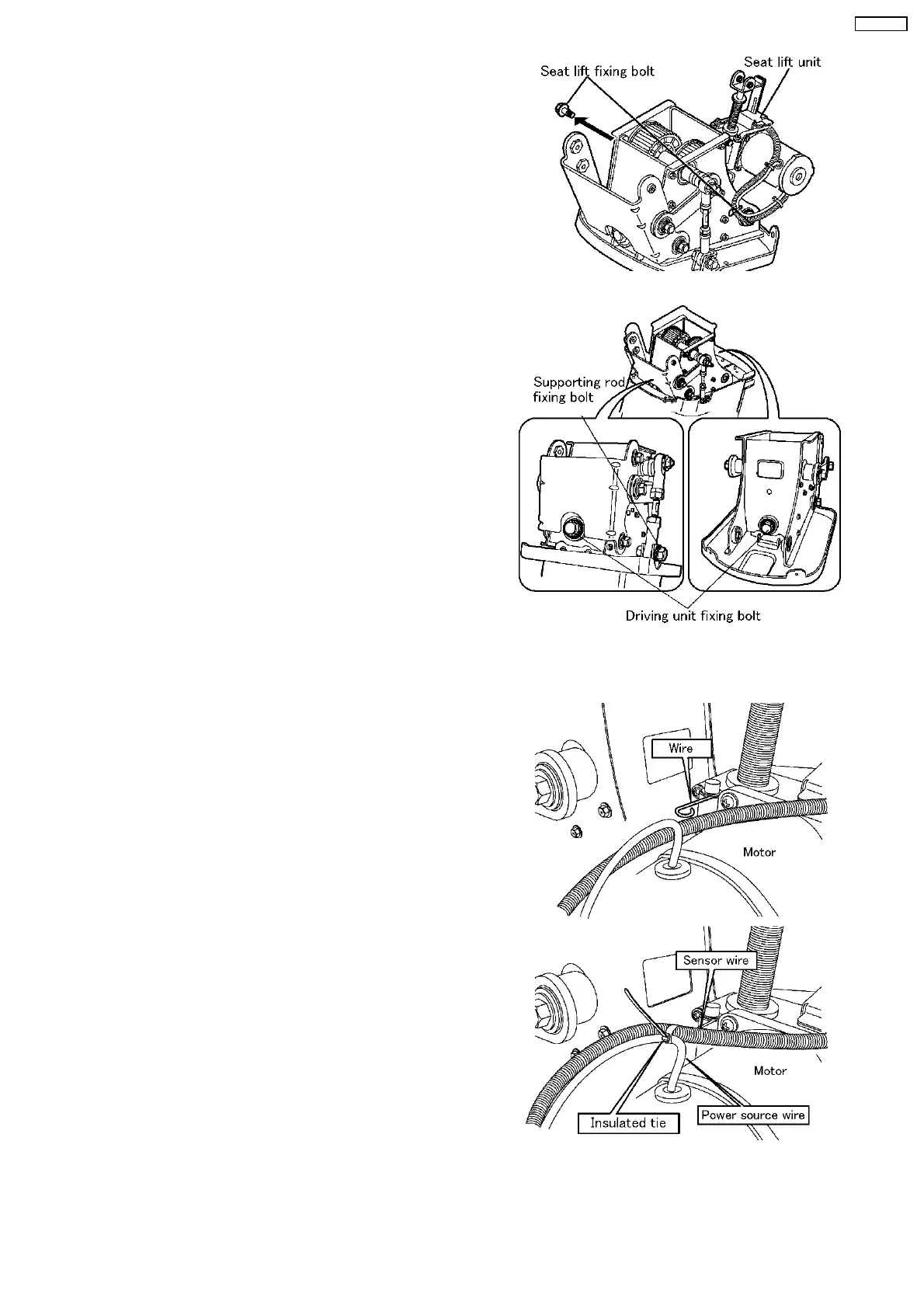

5. Remove the Seat lift.
a. Remove two Seat lift fixing bolts by 13mm(1/2´´) socket
wrench.
6. Remove the Driving unit.
a. Remove one Supporting rod fixing bolt by 17mm(5/8´´)
socket wrench.
b. Remove two Driving unit fixing bolts by 19mm(3/4´´)
socket wrench.
1. Bind the Sensor wire of the Seat lift unit and the Power
source cord.
a. Bind the Sensor wire and the Power source wire on the
Wire with the Insulated tie small. (Make the Power
source wire bottom and the Sensor wire top.)
5 HOW TO ALLIGN WIRES
13
EU6441-U1
