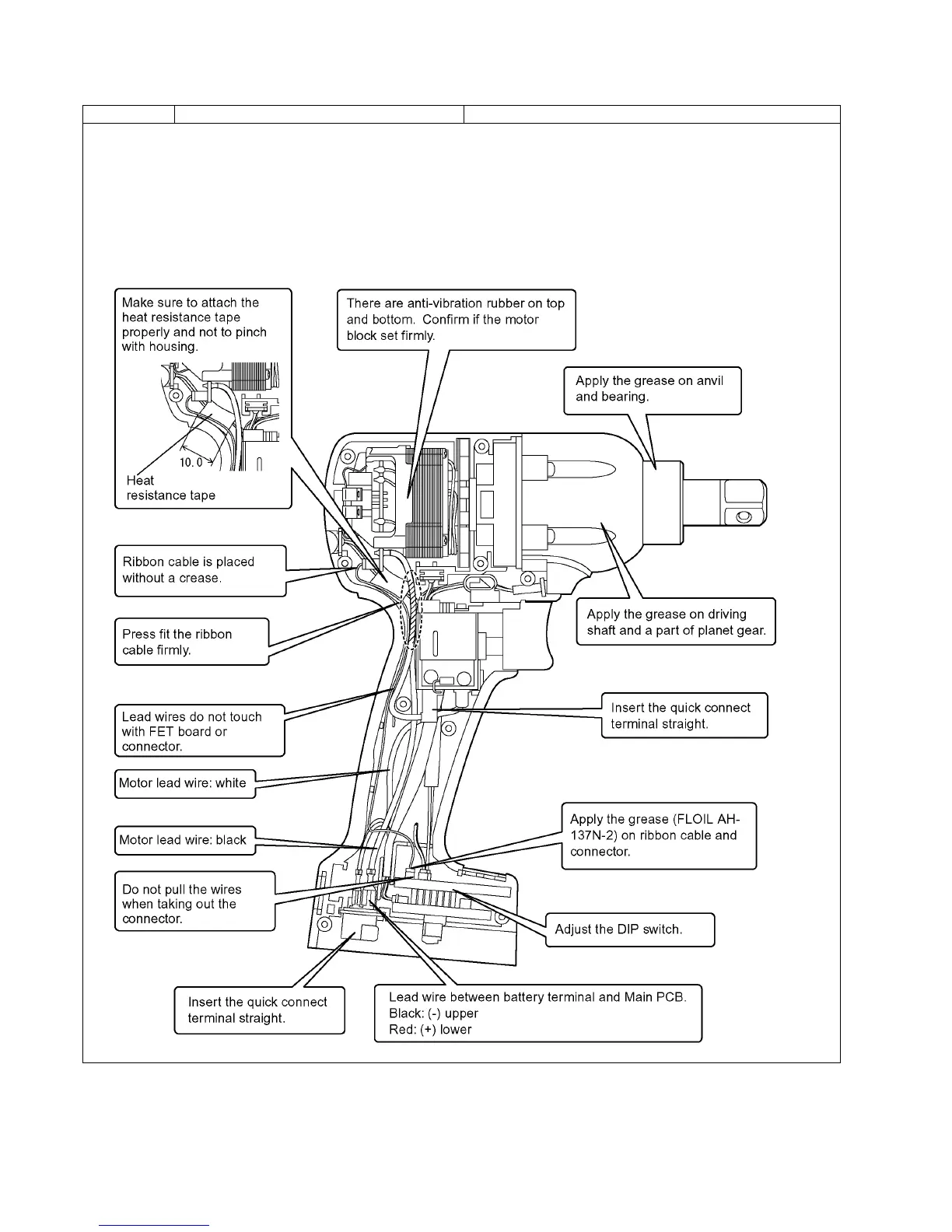

Ref. No. 2D Procedure 2A 2B 2C 2D Assembly of Driving assembly.
1. Confirm to attach the fixing rubber on Housing B.
2. Insert the motor and driving shaft assembly into the housing.
3. Confirm to set the motor lead wire (white) under the black lead wire
and confirm if there is no pinching with switch.
4. Place the battery terminal lead wire (black) is over the wire (red) prop-
erly.
NOTE:
Press fit the lead wires firmly.
Place the ribbon cable properly without getting caught in the lead
wires.
