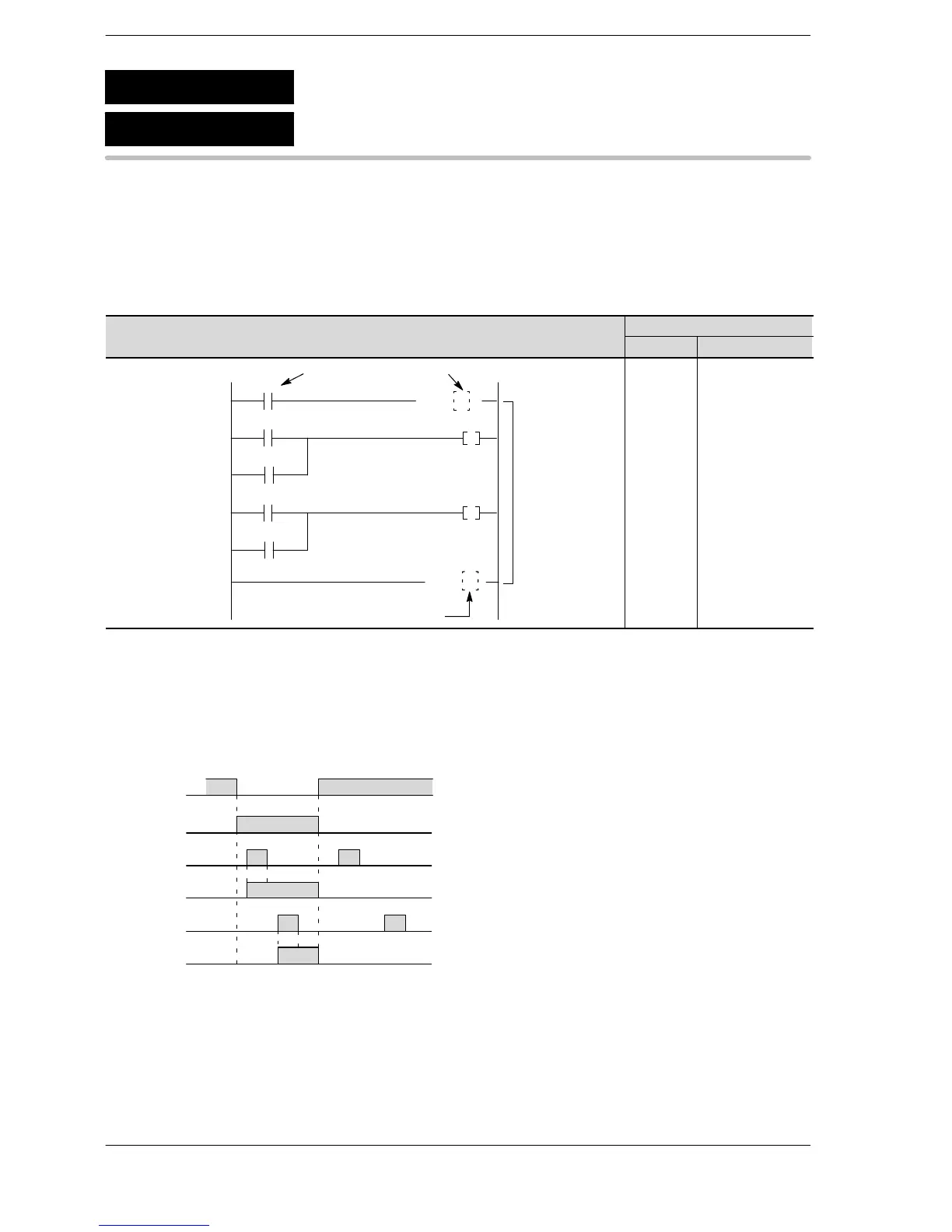

Outline Executes the program between the MC and MCE when the execution
condition turns on.
6
When the execution condition is off, output between the MC and MCE
is turned off.
Program example
Ladder
Diagram
Boolean
Ladder Diagram
Address Instruction
(MC 1 )
X1 Y31
3
Master control relay number
X2 Y32
6
X0
0
Execution
condition
(MCE 1 )
9
Y31
Y32
Master
control
area
Master control relay number
0
1
3
4
5
6
7
8
9
ST/ X 0
MC 1
ST X 1
OR Y 31
OT Y 31
ST X 2
OR Y 32
OT Y 32
MCE 1
Explanation of example
Executes the program from the MC1 instruction to the MCE1 instruction when the execution condition X0
turns on.
If the execution condition is off, output is turned off without processing being carried out between the MC1 and
MCE1 instructions.
X1
on
off
X2
on
off
on
off
on
off
on
off
Y31
Y32
X0
Execution
condition
on
off
Master control relay
MC
MCE
Master control relay end
