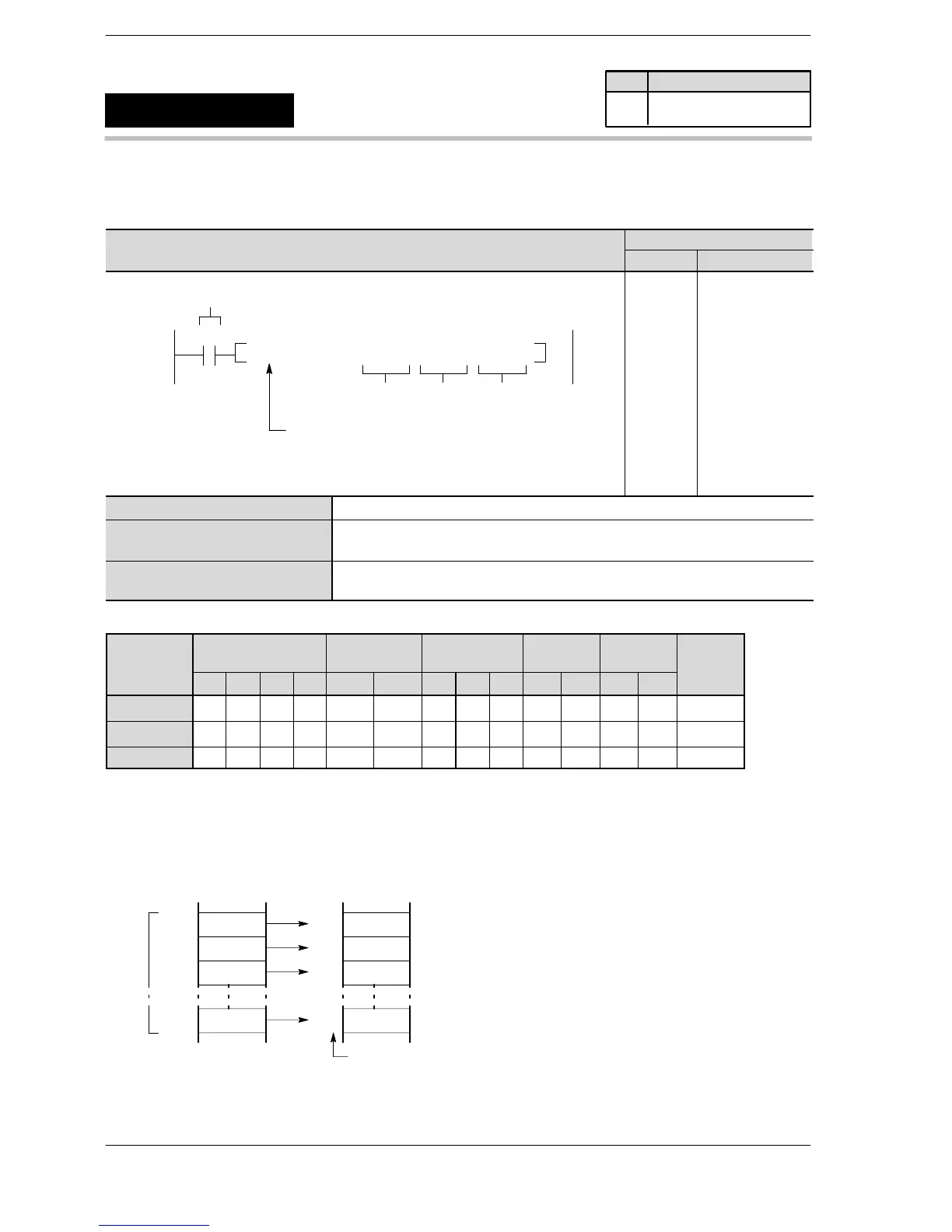

Boolean Non-ladder
Ladder Diagram
Address Instruction
10
P13 PICWT , DT 0 , K10 , K0
S1
D
Trigger
S2
R0
This instruction is a differential execution type
(P type) of instruction, and should be specified
with a “P” in front of the instruction number.
10
11
ST R 0
P 13 (PICWT)
DT 0
K10
K0
S1 Starting 16-bit area for storing source data
S2 32−bit equivalent constant or lower 16−bit area of 32−bit data for specifying
number of words to be write
D Starting address (constant) of EEPROM area for storing received data (for
destination)
Operands
O
WX WY WR WL SV EV DT LD FL IX IY K H
modifier
S1 N/A N/A N/A N/A N/A N/A A N/A N/A N/A N/A N/A N/A N/A
S2 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A A N/A N/A
D N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A A N/A N/A
Explanation of example
10 blocks (640 words) of data stored in data registers DT0 to DT576 are transferred to blocks 0 to 9 in the
EEPROM area when execution condition (trigger) R0 turns on.
0
1
2
9
[S1] 0
EEPROM area
[D]
Address
(Block)
64
128
576
Data register DT
[S2]
64 words
64 words
64 words
64 words
FP0/FP−e
Data write to EEPROM
P13
Step Availability
FP0 V2.0 or more/FP−e11
(PICWT)
A: Available
N/A: Not Available
