High−level Instructions
3 − 172
7 ASCII characters (S2=H1007)
ASCII character
ASCII HEX
code
S1+3 S1+2 S1+1 S1
ASCII code
7 ASCII characters (7 bytes)
D+1 D
Converted result
BCD H code
37 36 35 34 33 32 31
7654321
01 23 45 67
This position is
filled with “0”.

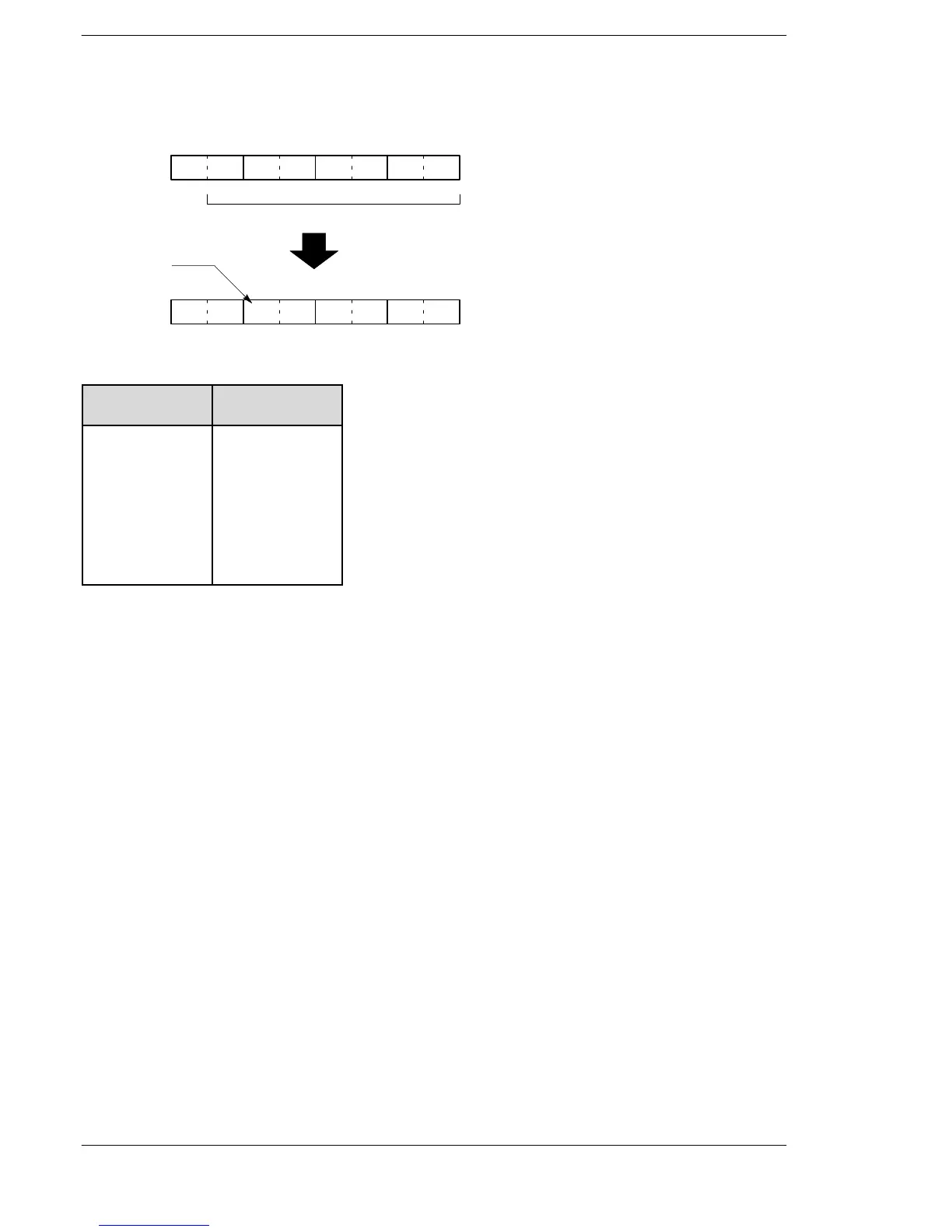

F74 (ABCD) instruction execution
BCD character to express ASCII HEX code
ASCII HEX
code
BCD character
H30
H31
H32
H33
H34
H35
H36
H37
H38
H39
0
1
2
3
4
5
6
7
8
9
Flag conditions
Σ Error flag (R9007): Turns on and stays on when:
Σ Error flag (R9008): Turns on for an instant when:
− The area specified using the index modifier exceeds the limit.
− ASCII code not corresponding to decimal numbers (0 to 9) is specified.
− The number of bytes specified by S2 exceeds the area specified by S1.
− The converted result exceeds the area specified by D.
− The data specified by S2 is recognized as “0”.
− The number of bytes for ASCII characters in S2 is more than H8.
To Next Page
