1.3 Restrictions on Unit Combinations
1.3.1 Restrictions on FP0 Expansion Unit

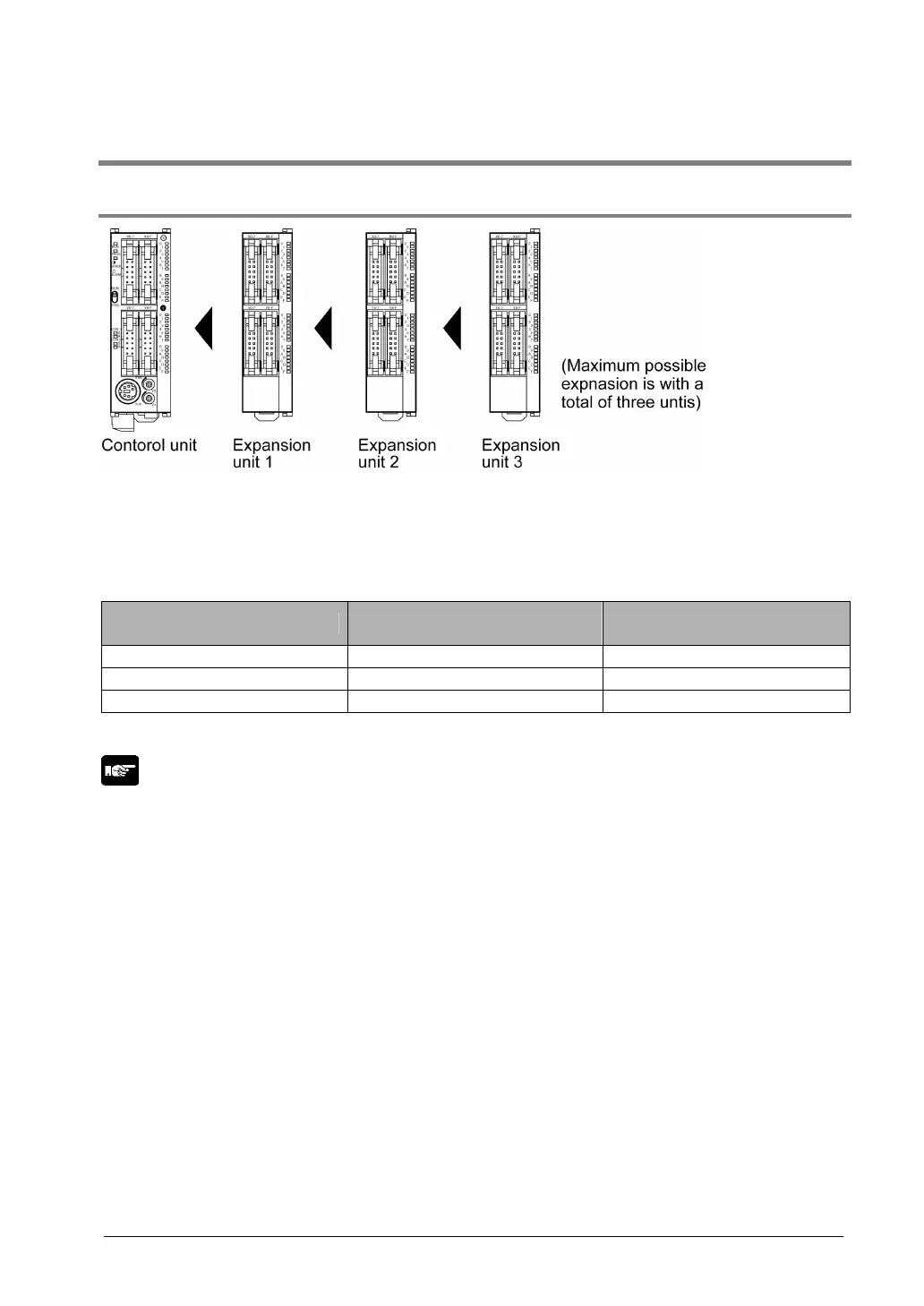

Up to three expansion units can be added on the right of the FPΣ, these expansion units being either
expansion units or intelligent units from the earlier FP0 series, or a combination of the two.
A combination of relay output types and transistor output types is also possible.
Controllable I/O points
Type os control unit
Number of I/O points when
using control unit
Number of I/O points when
using FP0 expansion unit
FPG-C32 32 ponts Max. 128 points
FPG-C28 28 points Max. 124 points
FPG-C24 24 points Max. 120 points
Note1)
Note1) This is the number of points when combining with the transistor type FP0 expansion unit.
Note:
• Install the FP0 thermocouple unit on the right side of all other expansion units. If it is installed on the
left side, the total precision will deteriorate.
• Install the FP0 CC-Link slave unit on the right side of the other expansion units. There is no expansion
connector on the right side.
