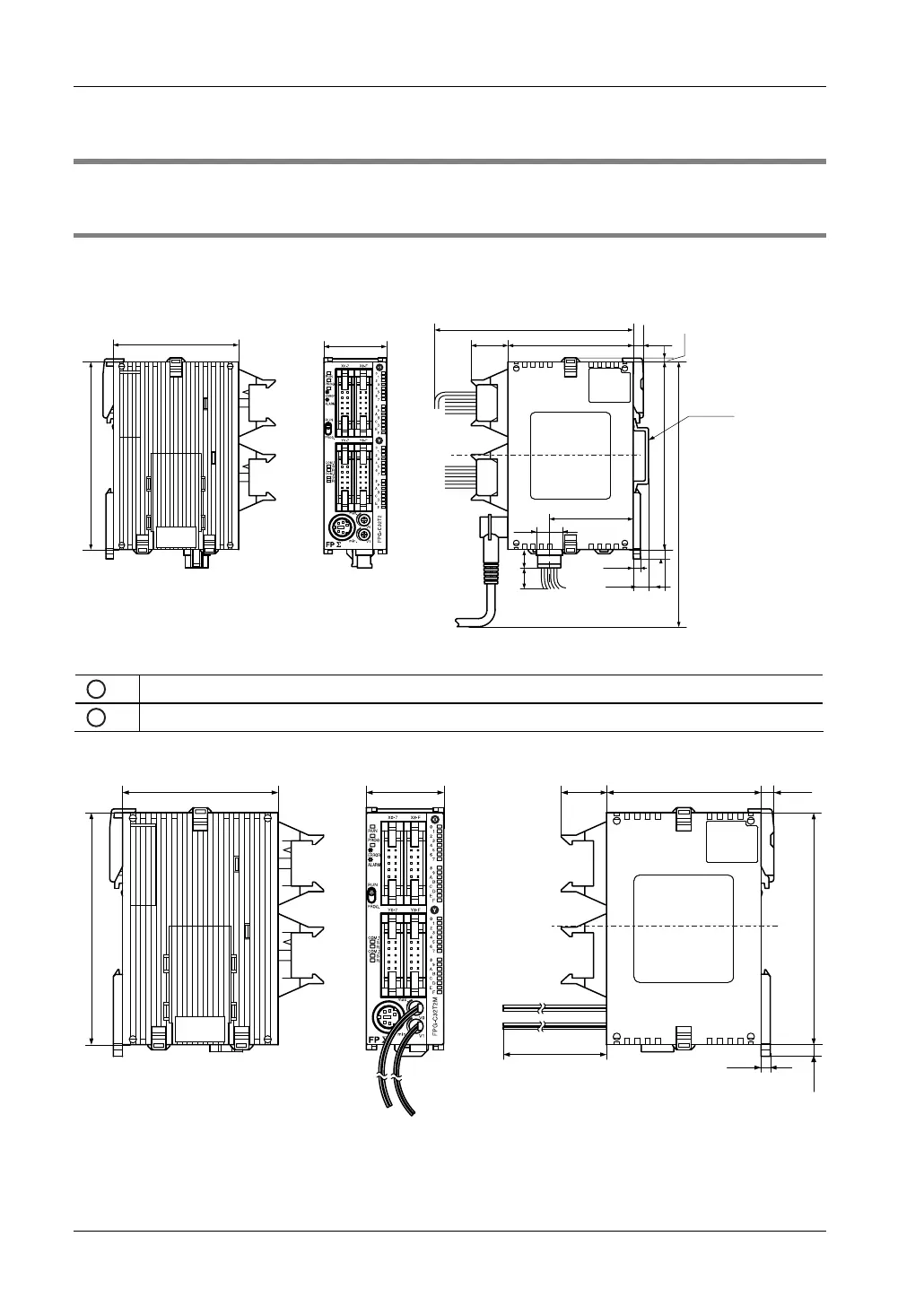

12.4 Dimensions
12.4.1 Transistor Output Type CPU
FPG-C32T2(H), FPG-C28P2(H)
(18)
40
(13)
(9)(10)
(3.5)
(7.5)
60.0
90.0
≈130.0
90.0
60.0
30.0
(5.0)
(4.5)
(2.0)
≈100
1
2
1
Maximum installation dimension
2
DIN rail (DIN EN50022 35mm)
FPG-C32T2(H)TM, FPG-C28P2(H)TM
EXPANSION
CONNECTOR
(18)
+20
-10
150
(3.5)
60.0
90.0
30.0
60.0
90.0
(5.0)
(4.5)
