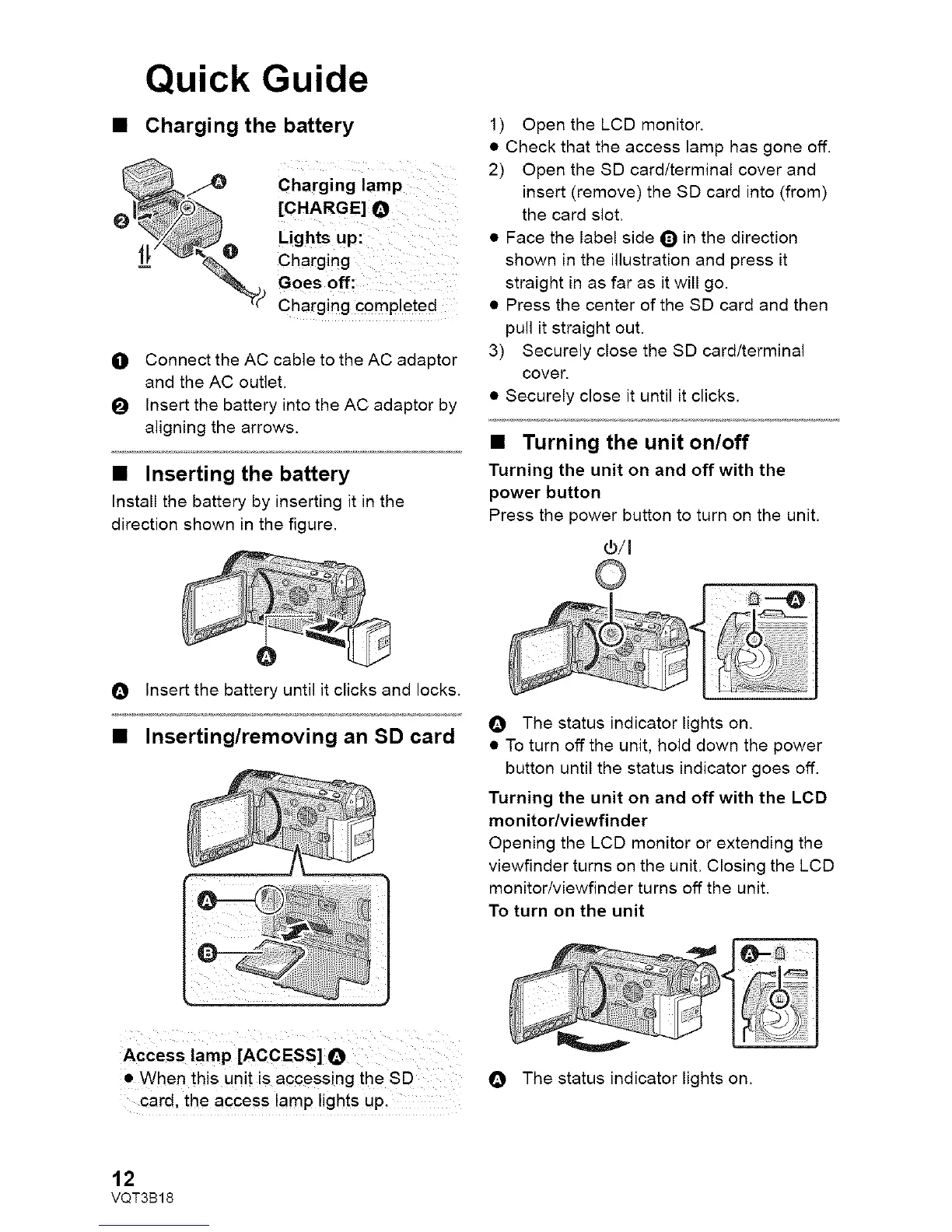

Quick Guide
• Charging the battery
/O Charging lamp
[CHARGE] O
02 Lights up:
Charging
_._ Goes off:
Charging completed
O Connect the AC cable to the AC adaptor
and the AC outlet.
I_ Insert the battery into the AC adaptor by
aligning the arrows.
• Inserting the battery
Install the battery by inserting it in the
direction shown in the figure.
1) Open the LCD monitor.
• Check that the access lamp has gone off.
2) Open the SD card/terminal cover and
insert (remove) the SD card into (from)
the card slot.
• Face the label side Q in the direction
shown in the illustration and press it
straight in as far as it will go.
• Press the center of the SD card and then
pull it straight out.
3) Securely close the SD card/terminal
cover.
• Securely close it until it clicks.
• Turning the unit on/off
Turning the unit on and off with the
power button
Press the power button to turn on the unit.
®/I
O Insert the battery until it clicks and locks.
• Inserting/removing an SD card
O The status indicator lights on.
• To turn off the unit, hold down the power
button until the status indicator goes off.
Turning the unit on and off with the LCD
monitor/viewfinder
Opening the LCD monitor or extending the
viewfinder turns on the unit. Closing the LCD
monitor/viewfinder turns off the unit.
To turn on the unit
Access lam p [ACCESS] _
• When this un t s accessing the SD
card, the access lamp lights up.
O The status indicator lights on.
12
VQT3B18
