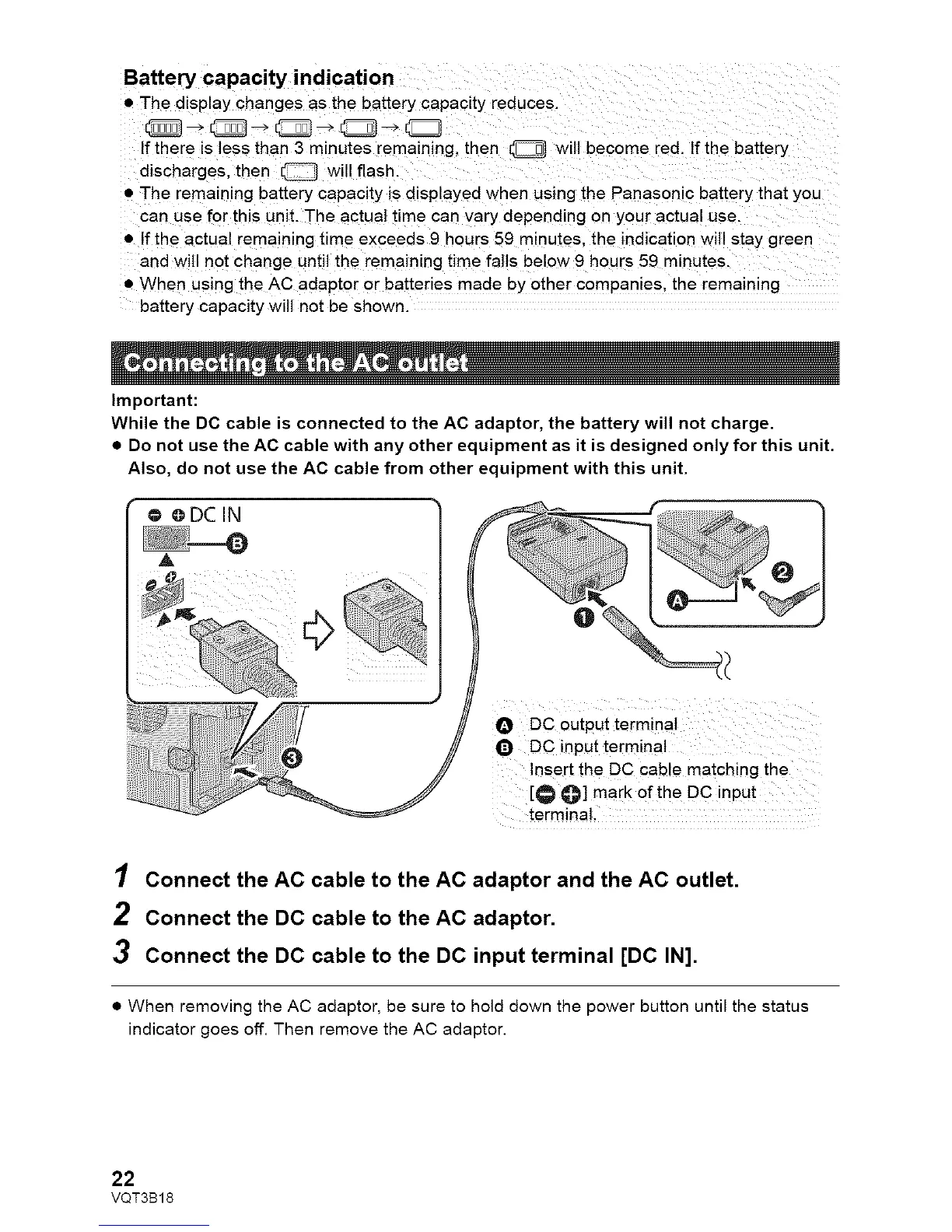

Battery capacity indication
• The display changes as the battery capacity reduces.
If there is less than 3 minutes remaining, then Q will become red. If the battery
discharges, then _ will flash.
• The remaining battery capacity is displayed when using the Panasonic battery that you
can use for this unit. The actual time can vary depending on your actual use.
• If the actual remaining time exceeds 9 hours 59 minutes, the indication will stay green
anc will not change until the remaining time falls below 9 hours 59 minutes.
• When using the AC adaptor or batteries made by other companies, the remaining
battery capacity will not be shown.
Important:
While the DC cable is connected to the AC adaptor, the battery will not charge.
• Do not use the AC cable with any other equipment as it is designed only for this unit.
Also, do not use the AC cable from other equipment with this unit.
© oDCIN
_,,!:_::iii,,i_i_i_i_i_i_i_i_i_i_ii,ili_i;,_ii,j_,_¸ ,,_i
i_,_iiiiiiiiiiiii_iiiiiiii_!iiiiii!iiiiiiiliii//iiii_'¸_}iiiiiiiiiiiiiiii_i_
O DC output terminal
_) DC input terminal
Insert the DC cable matching the
[O _]_] mark °fthe DC input ......
terminal
1 Connect the AC cable to the AC adaptor and the AC outlet.
2 Connect the DC cable to the AC adaptor,
3 Connect the DC cable to the DC input terminal [DC IN],
• When removing the AC adaptor, be sure to hold down the power button until the status
indicator goes off. Then remove the AC adaptor.
22
VQT3818
