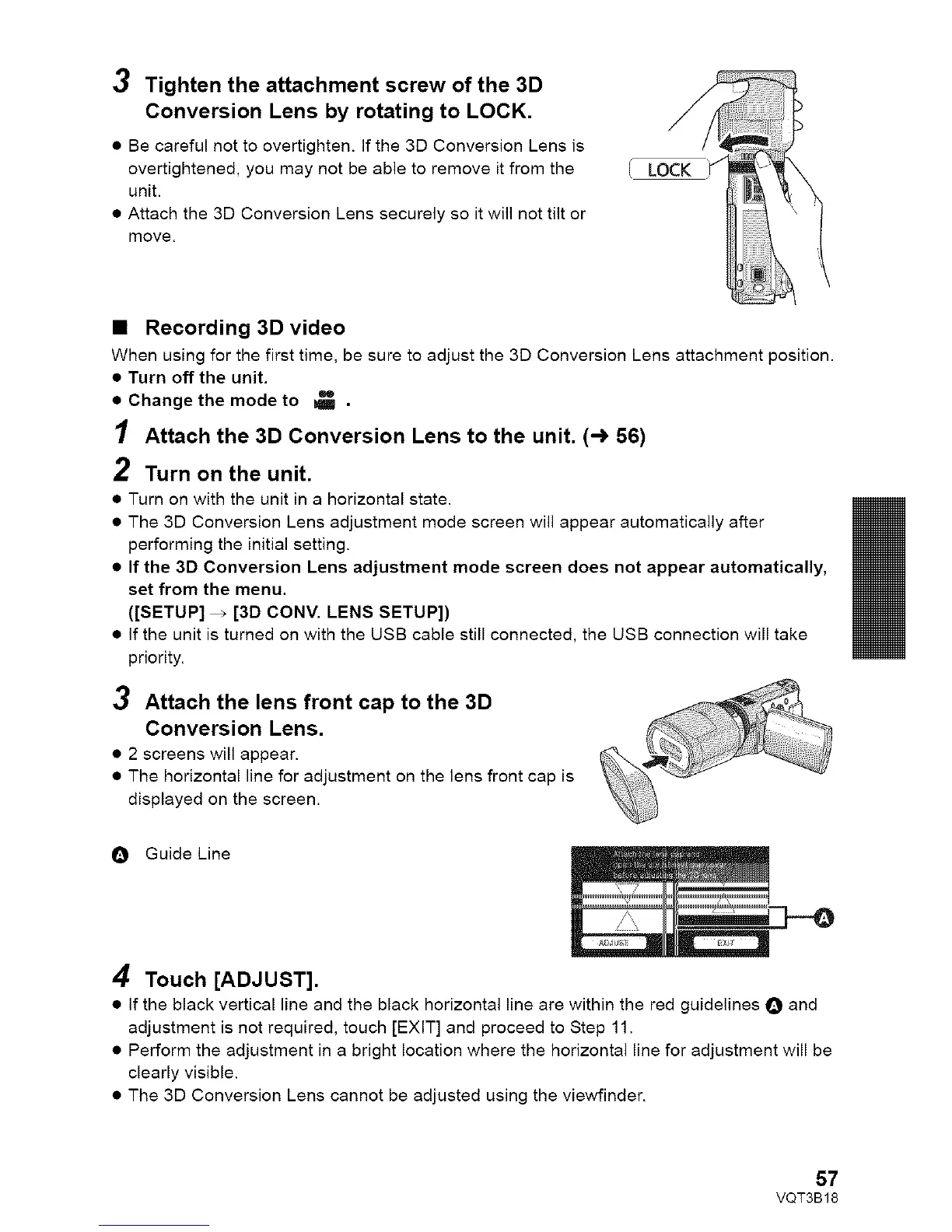

3 Tighten the attachment screw of the 3D
Conversion Lens by rotating to LOCK.
• Be careful not to overtighten. If the 3D Conversion Lens is
overtightened, you may not be able to remove it from the
unit.
• Attach the 3D Conversion Lens securely so it will not tilt or
move.
• Recording 3D video
When using for the first time, be sure to adjust the 3D Conversion Lens attachment position.
• Turn off the unit,
• Change the mode to _ ,
1 Attach the 3D Conversion Lens to the unit. (-) 56)
2 Turn on the unit.
• Turn on with the unit in a horizontal state,
• The 3D Conversion Lens adjustment mode screen will appear automatically after
performing the initial setting.
• If the 3D Conversion Lens adjustment mode screen does not appear automatically,
set from the menu.
([SETUP] _ [3D CONV. LENS SETUP])
• If the unit is turned on with the USB cable still connected, the USB connection will take
priority.
3 Attach the lens front cap to the 3D
Conversion Lens.
• 2 screens will appear.
• The horizontal line for adjustment on the lens front cap is
displayed on the screen.
O Guide Line
4 Touch [ADJUST].
• If the black vertical line and the black horizontal line are within the red guidelines O and
adjustment is not required, touch [EXIT] and proceed to Step 11.
• Perform the adjustment in a bright location where the horizontal line for adjustment will be
clearly visible.
• The 3D Conversion Lens cannot be adjusted using the viewfinder.
57
VQT3B18
