A&W Food Services of Canada Inc.
English Touch Screen Cable Kit Guide V970 2.2.docx QSR Solutions Page 7

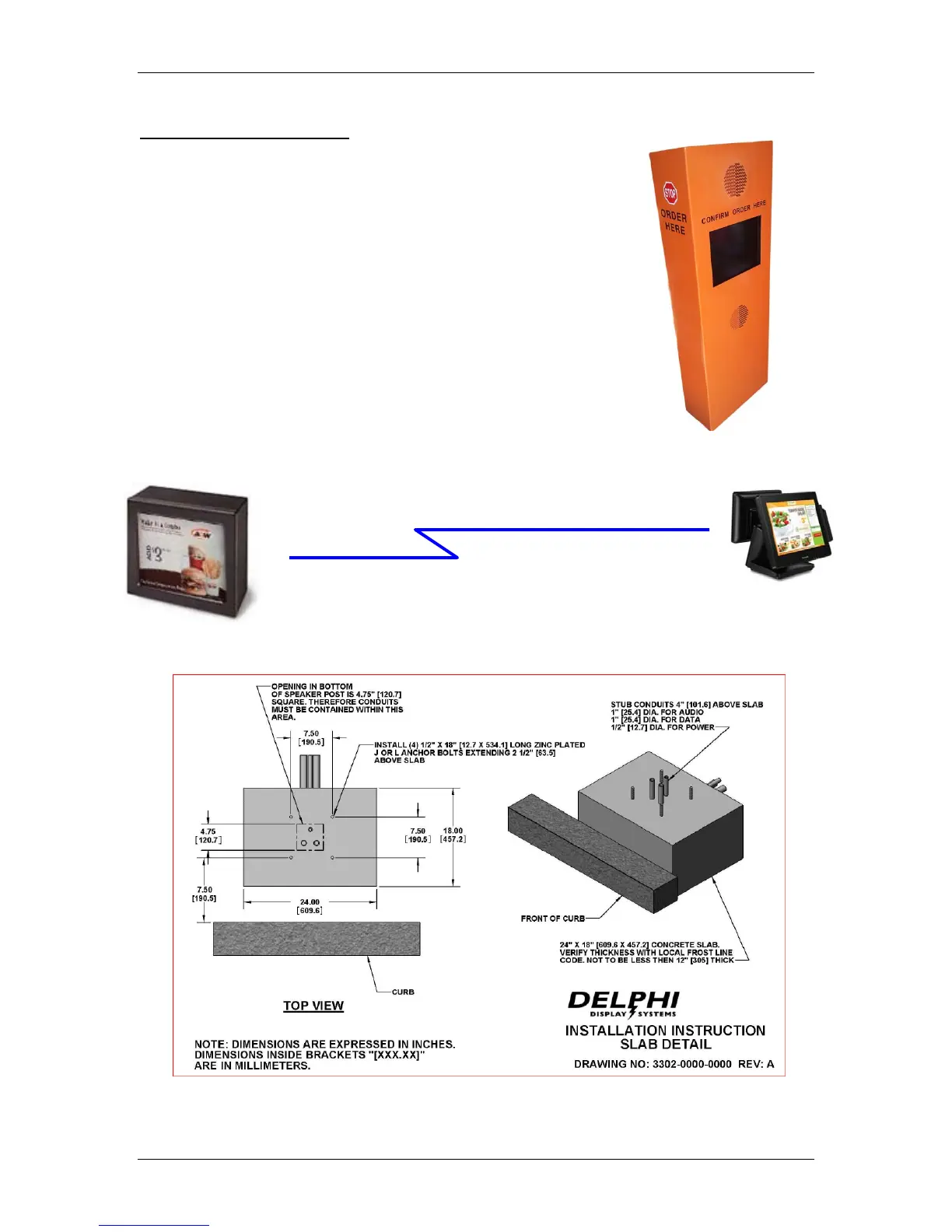

Drive-thru Speaker Post
Display Unit Dimensions
13.8125W, 10.125H, 1.125D
Dimensions are in inches.
Speaker Post Dimensions
19.0W, 52.0H, 11.0D
Dimensions are in inches.
Electrical Requirements
24VAC power adaptor at the speaker
post
Standard CAT5 communications cable.
It is the contractor’s responsibility to
have the communications cable run by
the on-site electrician (new stores)
CAT5 Cable
(Supplied with speaker post)
To Next Page
