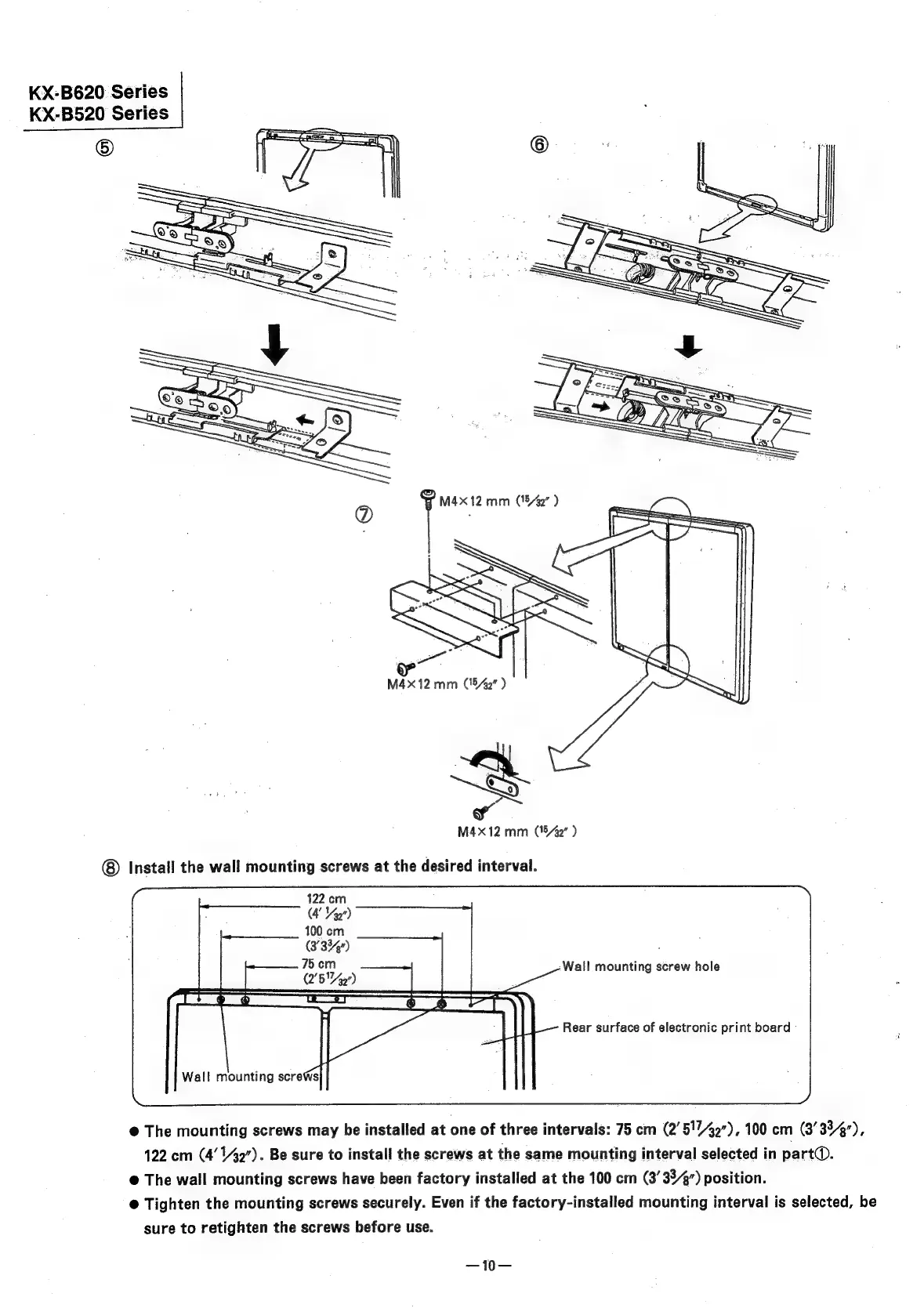

KX-+B620 Series
KX-B520 Series
SEH
LEC
M4X12 mm (182 )
M4x12 mm (%8A2" )
Install the wall mounting screws at the desired interval.
122 cm
(4 Yor)
100 cm
(3'3%”) ‘
75 cm Wall mounting screw hole
(2'5 a")
Rear surface of electronic print board
Wall mounting screWs
@ The mounting screws may be installed at one of three intervals: 75 cm (2’5'742”), 100 cm (3’ 334"),
122 cm (4’ 142”). Be sure to install the screws at the same mounting interval selected in part@.
@ The wall mounting screws have been factory installed at the 100 cm (3’ 334”) position.
® Tighten the mounting screws securely. Even if the factory-installed mounting interval is selected, be
sure to retighten the screws before use.
