KX-B620 Series
KX-B520 Series

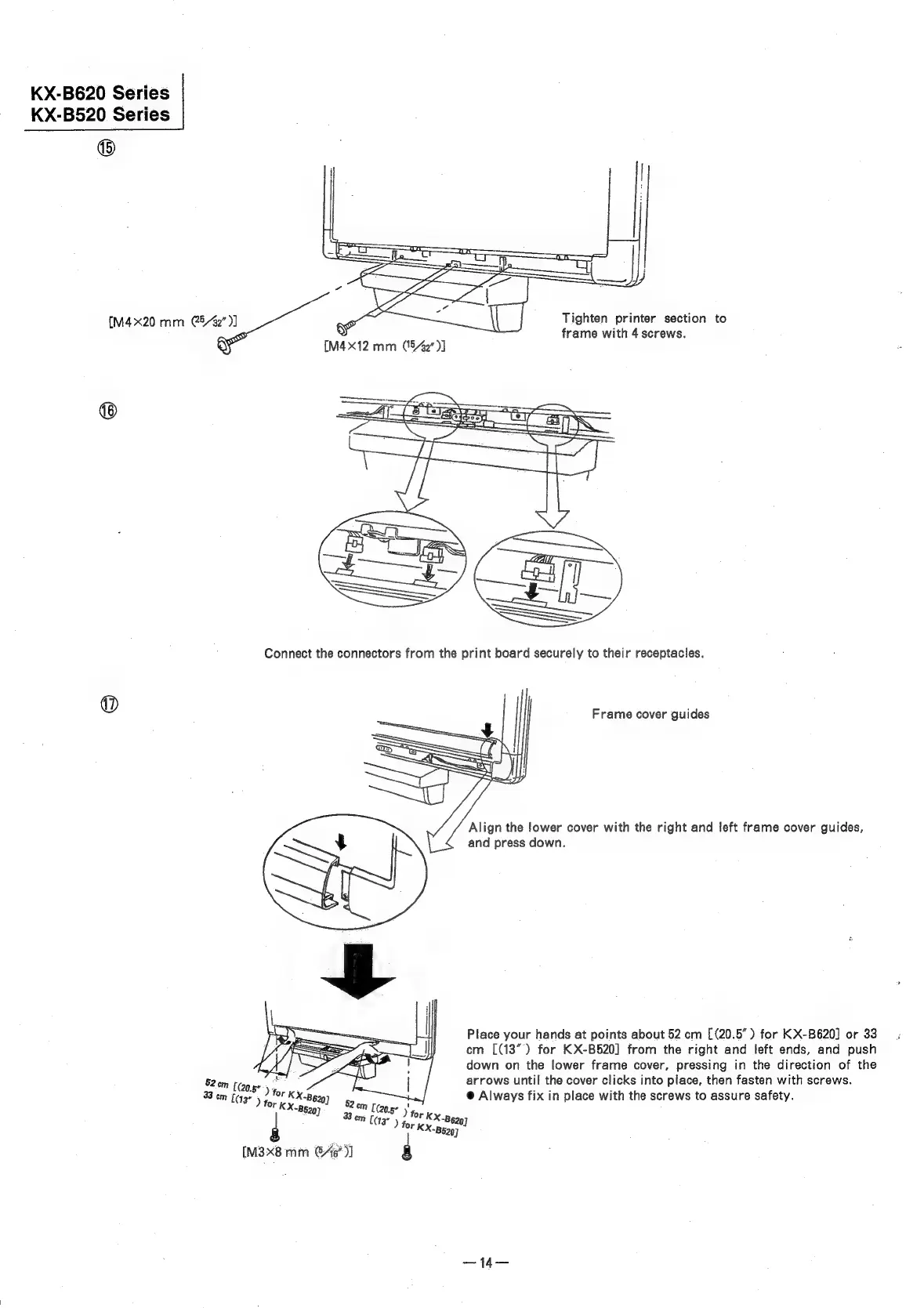

Tighten printer section to
(M4x20 mm @°/4” )] ;
frame with 4 screws.
Align the lower cover with the right and left frame cover guides,
and press down.
Place your hands at points about 52 cm [(20.5”) for KX-B620] or 33
em [(13”) for KX-B520] from the right and left ends, and push
down on the lower frame cover, pressing in the direction of the
arrows until the cover clicks into place, then fasten with screws.
@ Always fix in place with the screws to assure safety.
B2em (29,
5°
33 cm [013° ) f
[M3x8 mm @/6")]
