KX-B620 Series
KX-B520 Series

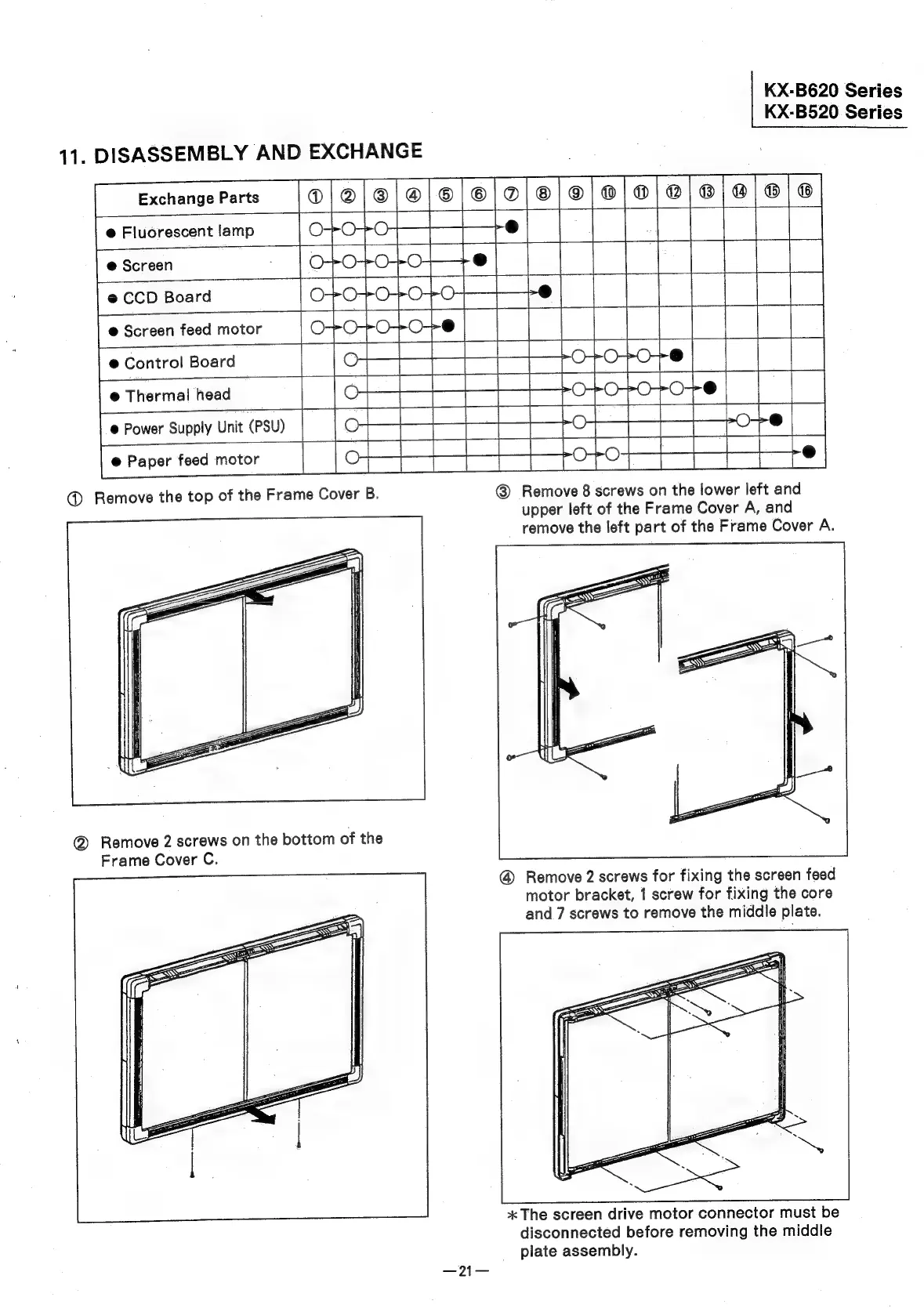

11.
DISASSEMBLY
AND
EXCHANGE
Exchange Parts
e@ Fluorescent lamp
@ Screen
@ CCD Board
@ Thermal head
@ Power Supply Unit (PSU)
@ Remove 8 screws on the lower left and
upper left of the Frame Cover A, and
remove the left part of the Frame Cover A.
@
Remove
2
screws
on
the
bottom
of
the
Frame
Cover
C.
@ Remove 2 screws for fixing the screen feed
motor bracket, 1 screw for fixing the core
and 7 screws to remove the middle plate.
* The screen drive motor connector must be
disconnected before removing the middle
plate assembly.
