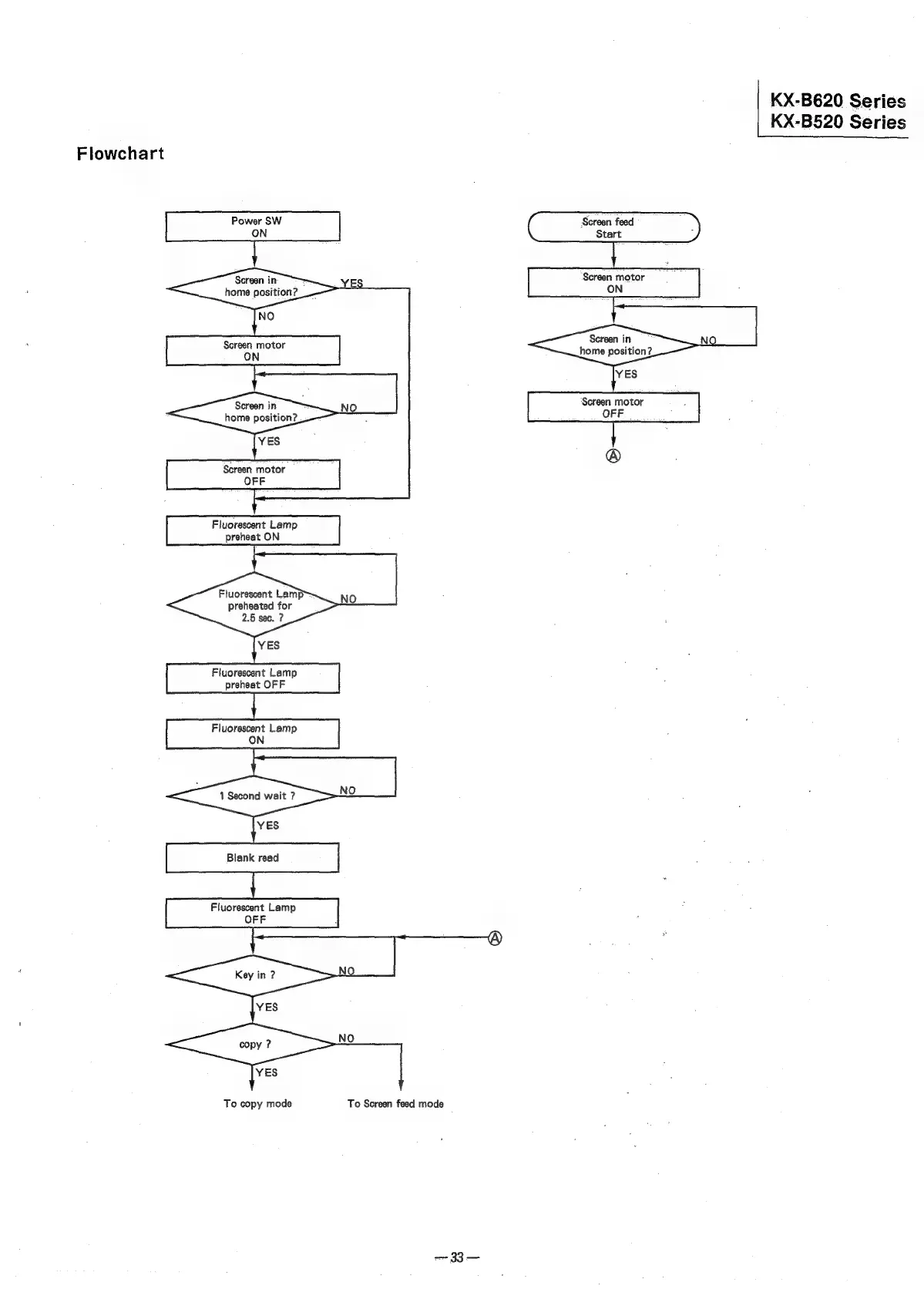

Flowchart
Power SW
ON
Screen in .
home position?
Screen motor
ON
Screen in
home position?
Screen motor
OFF
Fluorescent Lamp
preheat ON
Fluorescent Lam
preheated for
2.5 sec. ?
YES
Fluorescent Lamp
preheat OFF
Fluorescent Lamp
ON
1 Second wait ? ae
YES
Blank read
Fluorescent Lamp
OFF
<a
YES
<a
YES
p> .
To copy mode
To Screen feed mode —
S
KX-B620 Series
KX-B520 Series
Screen feed
Start ;
Screen motor ,
ON
Screenin = ~
home position?
YES
Screen motor 5
OFF :
