KX-B620 Series
KX-B520 Series

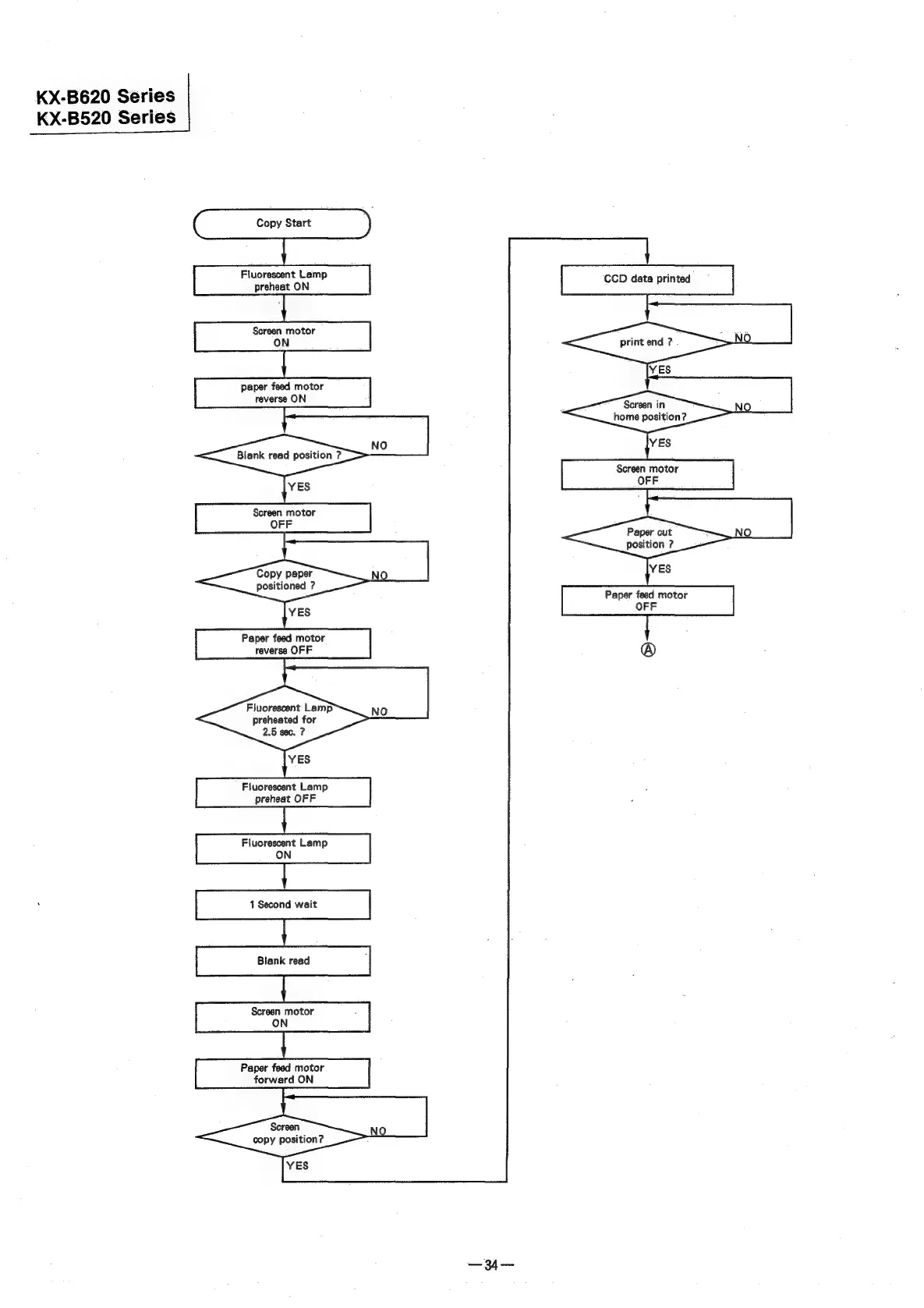

Copy Start
Fluorescent Lamp
preheat ON
Screen motor
paper feed motor
reverse ON
(o}
Blank read position ?
oO z
2
YES
Screen motor
OFF
Copy paper
positioned ?
,
YES
Paper feed motor
reverse OFF
Fluorescent Lamp
preheated for
2.5 sec. ?
YES
Fluorescent Lamp
preheat OFF
Fluorescent Lamp
ON
{ Second wait
Blank read
Screen motor
Paper feed motor
forward ON
Zz
Screen
copy position?
IN
YES
CCD data printed ~
YES
Screen in .
home position?
YES
Screen motor
OFF
Paper cut -
position ?
YES
Paper feed motor
OFF
