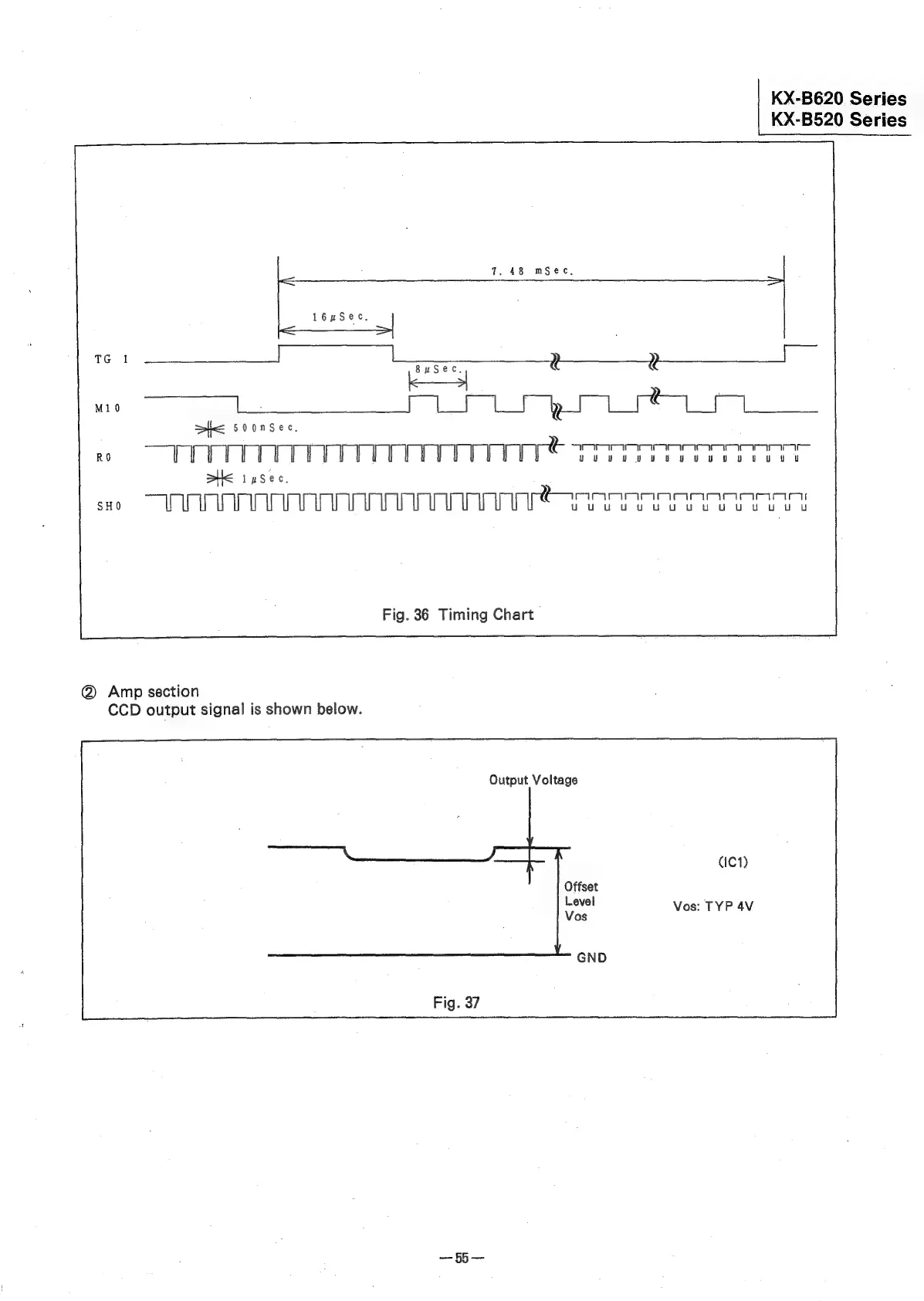

Fig. 36 Timing Chart
@ Amp section
CCD output signal is shown below.
Output Voltage
(IC1)
Vos: TYP 4V
