Connection
10
Connection
PC connection/Switching Hub connection
• Use a straight CAT 5 (or higher) Ethernet cable (not included) that is 6.5
mm in diameter or less.
• For further information on the connection to a PC, refer to the
documentation provided for the PBX.
AC adaptor
• Use a Panasonic AC adaptor KX-A239UK (PQLV206E).
• The AC adaptor is used as the main disconnect device. Ensure that the
AC outlet is located near the unit and is easily accessible.
CAUTION:
To a PC.
To a Switching Hub.
Optional AC adaptor
(not included).

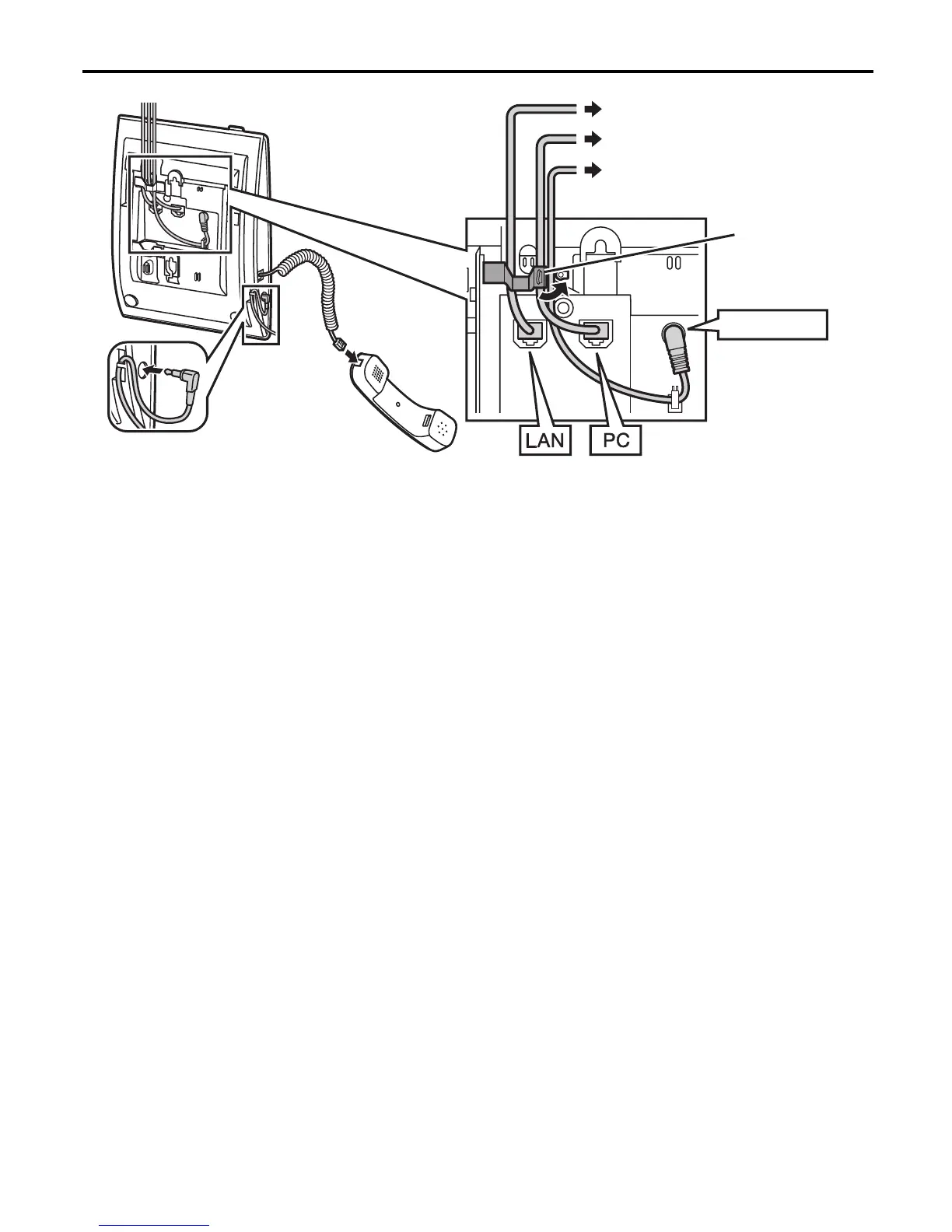

<Back view>
Clamp
AC adaptor
Headset
Recommended: KX-TCA89
When selecting Ethernet cables
• Use flexible, high-quality, snagless (without strain relief) cables.
Do not use cables with coating that may tear or crack when
bent.
When connecting cables
• Ensure that the Ethernet cables and the AC adaptor cord are
clamped to prevent damage to the connectors.
• Cables may be routed upwards by using the appropriate cable
clamp located on the back of the unit.
When connecting a headset and AC adaptor
• Ensure that the headset cord and the AC adaptor cord are
wound around the hook to prevent damage to the connectors.
