Panasonic KX-P1124 - Default Chapter; Table of Contents

This Manual: http://www.manuallib.com/file/2525964

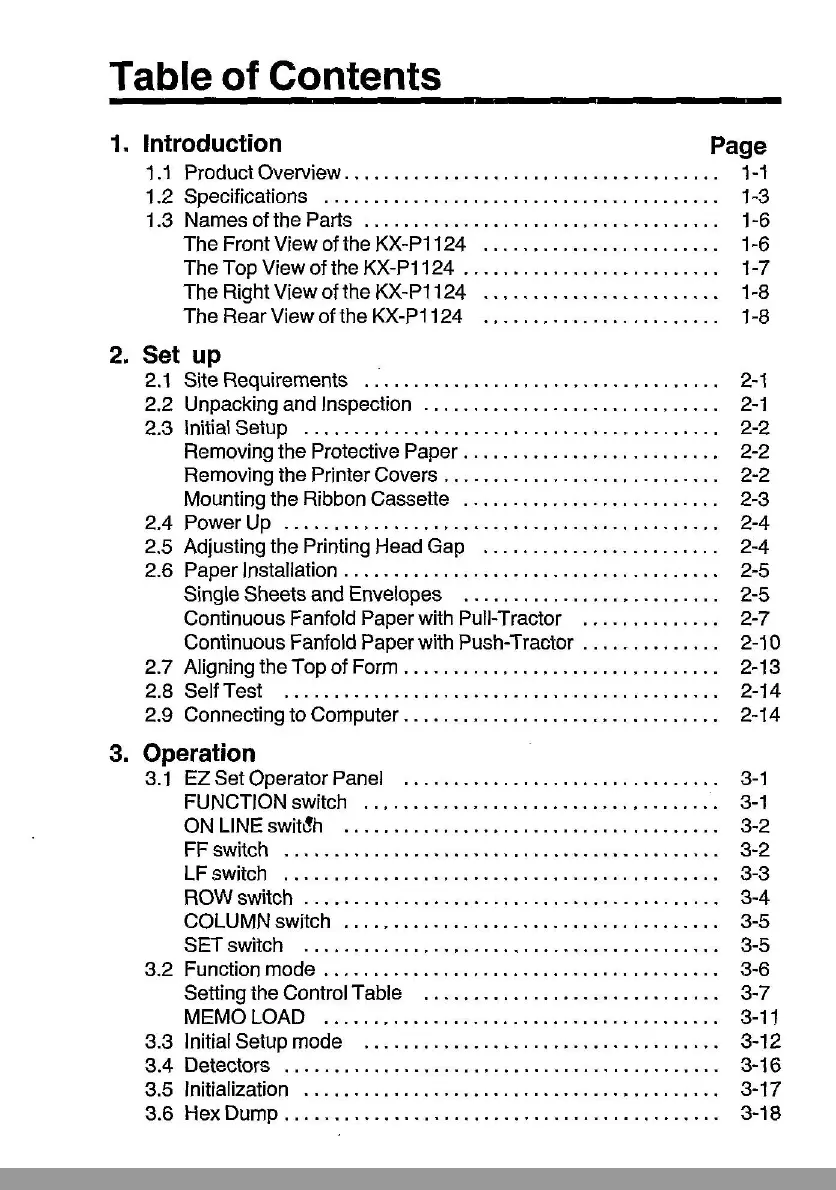

Table of Contents
1. Introduction Page
1.1 Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 Specifications ........................................ 1-3
1.3 Names of the Parts
.................................... 1-6
The Front View of the KX-P1124
........................ 1-6
The Top View
of the KX-P1124 ......... .. ............... 1-7
The Right View
ofthe KX-P1124 ........................ 1-8
The Rear View
ofthe KX-P1124 ........................ 1-8
2. Set up
2.1 Site Requirements .................................... 2-1
2.2 Unpacking and Inspection ....................... " ..... 2-1
2.3 Initial Setup .......................................... 2-2
Removing the Protective
Paper. . . . . . . . . . . . . . . . . . . . . . . . .. 2-2
Removing the Printer Covers . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 2-2
Mounting the Ribbon Cassette
.......................... 2-3
2.4 Power Up
............................................ 2-4
2.5 Adjusting the Printing Head Gap
........................ 2-4
2.6 Paper Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 2-5
Single Sheets and Envelopes
.......................... 2-5
Continuous Fanfold Paper with Pull-Tractor
.............. 2-7
Continuous Fanfold Paper with Push-Tractor.
.. ........... 2-10
2.7 Aligning the Top
of Form. .. . . . . . . . . . . .. .. .. . . . . . . . . . . . .. 2-13
2.8 Self Test
............................ . ............... 2-14
2.9 Connecting to Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 2-14
3. Operation
3.1 EZ Set Operator Panel ................................ 3-1
FUNCTION switch .................................... 3-1
ON LINE swMh ...................................... 3-2
FF switch
............................................ 3-2
LF switch
............................................ 3-3
ROW switch
.................. . ....................... 3-4
COLUMN switch
...................................... 3-5
SET switch
.......................................... 3-5
3.2 Function mode
...................................... " 3-6
Setting the Control Table
.............................. 3-7
MEMO LOAD
........................................ 3-11
3.3 Initial Setup mode .................................... 3-12
3.4 Detectors
............................................ 3-16
3.5 Initialization
.......................................... 3-17
3.6 Hex Dump
.. , .............. ................ .. .. ....... 3-18
