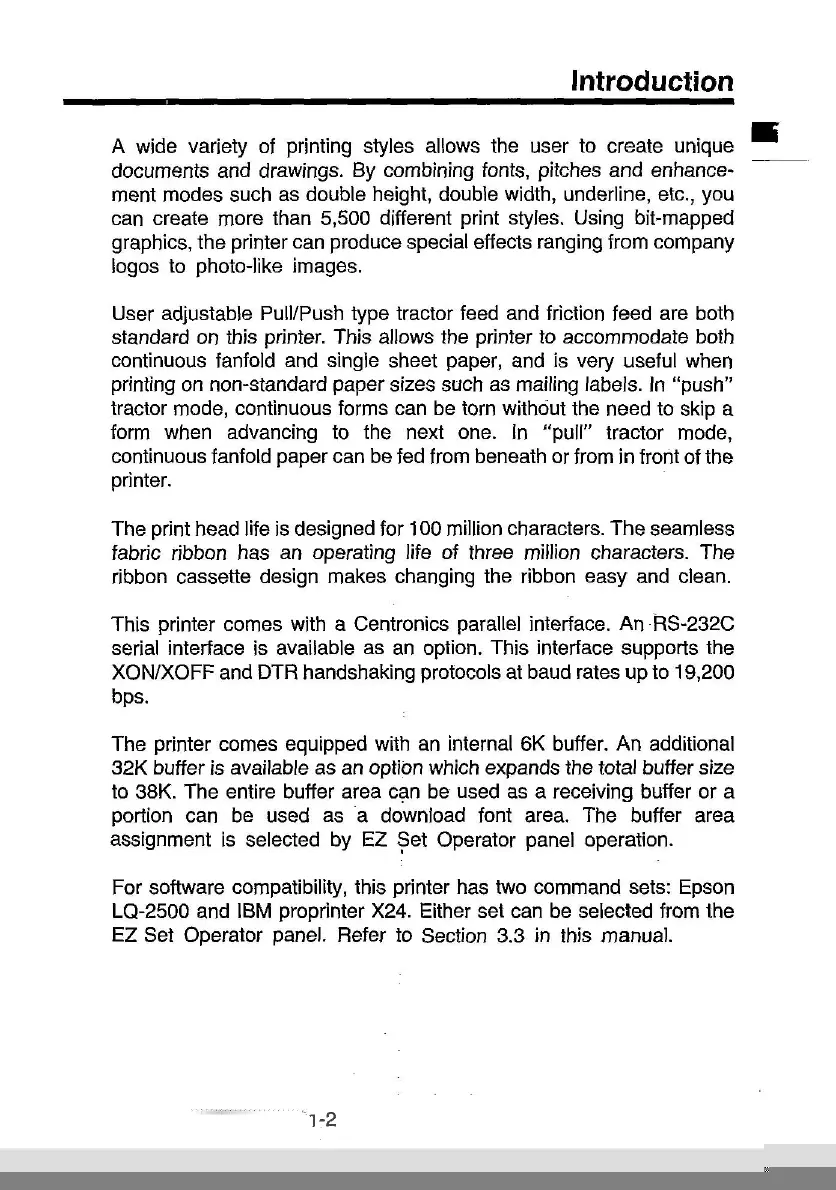

Introduction
A wide variety of printing styles allows the user to create unique
documents and drawings. By combining fonts, pitches and enhance-
ment modes such as double height, double width, underline, etc., you
can create more than 5,500 different print styles. Using bit-mapped
graphics, the printer can produce special effects ranging from company
logos to photo-like images.
User adjustable Pull/Push type tractor feed and friction feed are both
standard on this printer. This allows the printer to accommodate both
continuous fanfold and single sheet paper, and is very useful when
printing
on
non-standard paper sizes such as mailing labels. In "push"
tractor mode, continuous forms can
be
torn without the need
to
skip a
form when advancing to the next one.
In
"pull" tractor mode,
continuous fanfold paper can be fed from beneath or from in front of the
printer.
The print head life is designed for 100 million characters. The seamless
fabric ribbon has an operating life of three million characters. The
ribbon cassette design makes changing the ribbon easy and clean.
This printer comes with a Centronics parallel interface. An RS-232C
serial interface is available as
an
option. This interface supports the
XON/XOFF and DTR handshaking protocols at baud rates up to 19,200
bps.
The printer comes equipped with
an
internal 6K buffer. An additional
32K buffer is available as an option which expands the total buffer size
to 38K. The entire buffer area
c~\O
be
used
as
a receiving buffer or a
portion can
be
used as a download font area. The buffer area
assignment is selected by EZ
~et
Operator panel operation.
For software compatibility, this printer has two command sets: Epson
LQ-2500 and IBM proprinter
X24.
Either set can
be
selected from the
EZ Set Operator panel. Refer to Section 3.3
in this manual.
•
