The Panasonic KX-T7775 Doorphone is a versatile communication device designed for both residential and office environments, offering a range of features for enhanced security and convenience. This doorphone unit serves as an external interface, allowing visitors to communicate with occupants inside a building and providing an additional layer of access control.

Function Description

The primary function of the KX-T7775 Doorphone is to facilitate two-way audio communication between a visitor at the door and an occupant inside the premises. When a visitor presses the illuminated call button on the doorphone, a confirmation tone is emitted, signaling that the call has been placed. This call is then routed to a designated extension within the connected Panasonic PBX (Private Branch Exchange) system. Occupants can answer the call from their extension, establishing a voice link with the visitor. This allows for screening visitors before granting entry, enhancing security for homes and businesses.

Beyond basic communication, the doorphone can also operate a standard doorbell system. This means that in addition to routing calls through the PBX, it can trigger a traditional doorbell chime, providing an audible alert within the building. This dual functionality offers flexibility, catering to different notification preferences or existing infrastructure.

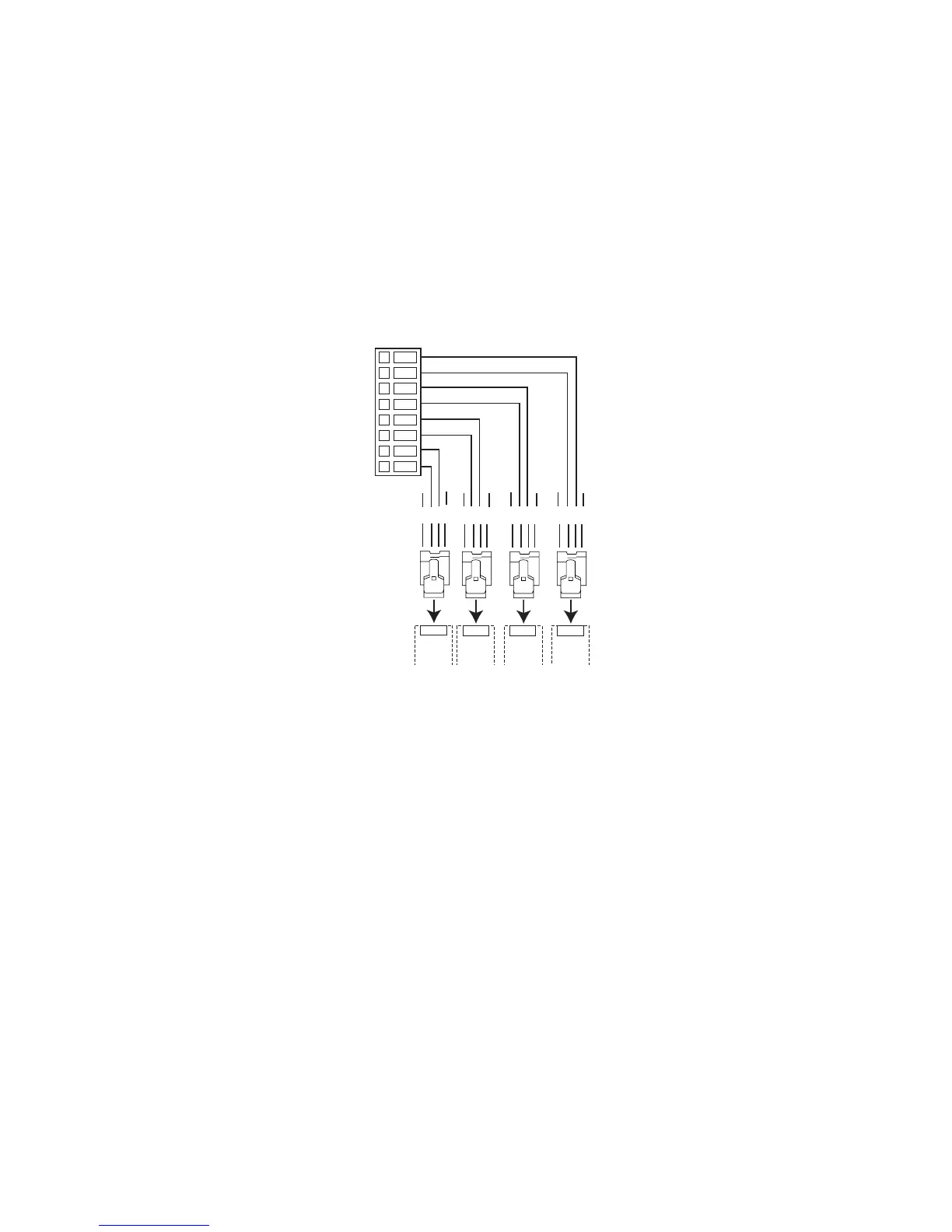

The KX-T7775 is designed to integrate seamlessly with a variety of Panasonic PBX systems, including models like the KX-TA1232, KX-TA624, KX-TD816, KX-TDA50, and many others. This broad compatibility ensures that it can be incorporated into many existing Panasonic communication setups, making it a practical addition for system upgrades or new installations. The doorphone connects to the PBX via a dedicated Doorphone Card, which must be installed in the PBX for the system to function correctly. A Power Module is also part of the system, providing the necessary power to the doorphone unit and connecting it to the PBX Doorphone Card.

Usage Features

The KX-T7775 Doorphone offers several user-friendly features that contribute to its convenience and adaptability.

Illuminated Call Button: The call button on the doorphone is illuminated, making it easily visible to visitors, especially in low-light conditions or at night. This ensures that visitors can quickly identify and use the call function.
Confirmation Tone: Upon pressing the call button, visitors hear a confirmation tone. This immediate feedback assures them that their call has been registered and is being processed, preventing multiple presses or uncertainty.
Two-Way Communication: Once a call is answered from an internal extension, clear two-way audio communication is established. This allows occupants to speak directly with visitors, inquire about their purpose, and make informed decisions regarding access.
Standard Doorbell Operation: The unit can be wired to operate a standard doorbell, providing an additional or alternative notification method to the PBX call. This is particularly useful in residential settings where a traditional chime is preferred.
Adjustable Microphone Sensitivity: A key feature for varying environments is the adjustable microphone sensitivity. This allows the installer or user to fine-tune the microphone's pickup level. In noisy locations, such as busy streets or areas with machinery, the sensitivity can be reduced to minimize background noise and improve voice clarity. Conversely, for quieter settings, the sensitivity can be increased to ensure even soft voices are picked up effectively. This adjustment is made via a switch located on the rear of the doorphone module.
Mounting Flexibility: The KX-T7775 can be installed in two primary ways: surface-mounted directly onto a wall or flush-mounted for a more integrated and discreet appearance.
- Surface Mounting: For surface mounting, the unit is secured directly to the wall using appropriate screws. This method is straightforward and suitable when a minimal installation footprint is desired.
- Flush Mounting: For flush mounting, the rear section of the unit is discarded, and an interface bracket is used. This bracket can be attached to a gang-box or directly to a wall recess, allowing the front panel of the doorphone to sit flush with the wall surface. This provides a cleaner aesthetic and can be preferred in modern architectural designs. The unit can also be installed directly into a wall recess without the interface bracket, offering further flexibility.
Optional Decorative Fascias: To complement various building exteriors, optional decorative fascias are available. These fascias, such as polished brass or brushed stainless steel (KX-A401 and KX-A402 respectively), allow for customization of the doorphone's appearance, ensuring it blends harmoniously with the surrounding decor.

Maintenance Features

While the KX-T7775 Doorphone is designed for durability and minimal maintenance, certain aspects ensure its longevity and reliable operation.

Weather-Resistant Design: The doorphone unit is weather-resistant, making it suitable for external mounting. This design protects the internal components from environmental elements, ensuring continued functionality outdoors. However, it is important to note that it should not be subjected to direct contact with water, such as continuous heavy rain or direct spray, to prevent potential damage.
Robust Construction: The unit is built to withstand typical outdoor conditions. The materials and construction are chosen to provide resilience against temperature fluctuations and general wear and tear.
Simple Cleaning: For cleaning, the product should be unplugged from the wall outlet. A damp cloth is recommended for cleaning the exterior. Liquid or aerosol cleaners should be avoided to prevent damage to the unit's components.
Component Accessibility: The doorphone unit can be separated into two halves for installation and adjustment purposes, such as setting the microphone sensitivity. This design allows for easy access to internal controls without requiring specialized tools or extensive disassembly.
Replacement Parts Availability: Should any component require replacement, parts and accessories are available through authorized distributors. This ensures that the doorphone can be repaired and maintained over its lifespan, rather than needing full replacement for minor issues. This includes interface brackets, gaskets, AC adaptors, and power modules.
Professional Installation Guidance: The manual emphasizes consulting an authorized dealer if there is any doubt during installation of the Doorphone Module. This ensures correct setup and connection, which is crucial for the unit's long-term performance and to avoid potential issues.
Environmental Considerations: The unit is designed to operate within a specified temperature range (-20°C to +50°C). While weather-resistant, avoiding prolonged exposure to direct sunlight is advised to prevent discoloration of the unit. Proper ventilation for the Power Module, which is designed for internal use, is also important to prevent overheating, especially if sharing power failure backup systems with the PBX.

The Panasonic KX-T7775 Doorphone is a comprehensive solution for managing visitor access and communication, combining practical functionality with flexible installation and maintenance considerations to suit a wide range of applications.
