KX-TG7331BX//KX-TGA731BX

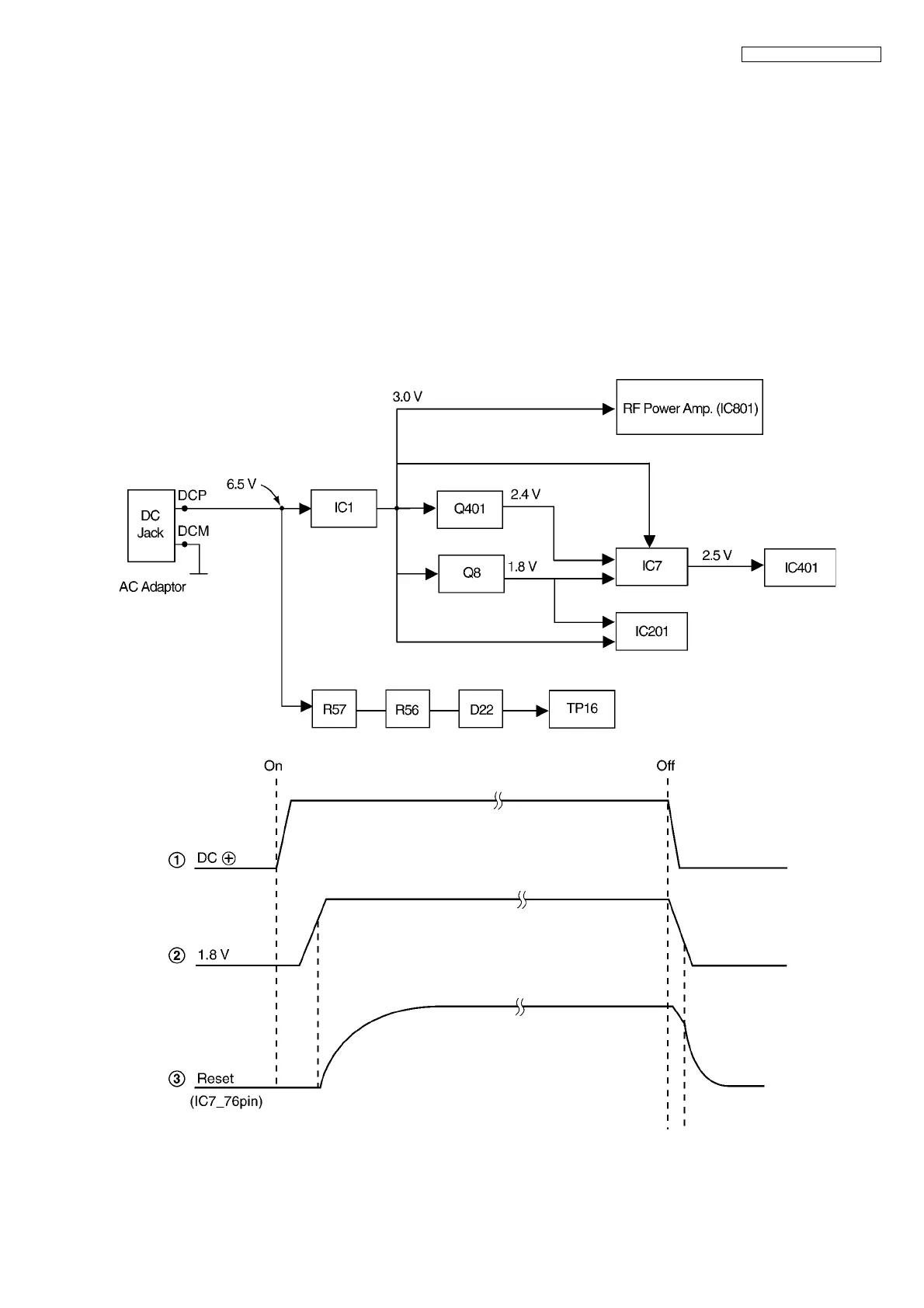

4.2.2. Power Supply Circuit
The power is supplied to the DECT BBIC, RF Module, EEPROM and Charge Contact from AC Adaptor (+6.5 V) as shown in
Fig.101. The power supply is as follows;
• DECT BBIC (IC7):
DC Jack (+6.5 V) → IC1 → IC7
DC Jack (+6.5 V) → IC1 → Q401 → IC7
DC Jack (+6.5 V) → IC1 → Q8 → IC7
• RF Power Amp. (IC801):
DC Jack (+6.5 V) → IC1 → IC801 (Power AMP)
• EEPROM (IC401):
DC Jack (+6.5 V) → IC1 → IC7→ IC401
• TAM Companion (IC201):
DC Jack (+6.5 V) → IC1 → Q8 → IC201
DC Jack (+6.5 V) → IC1 → IC201
• Charge Contact (TP16):
DC Jack (+6.5 V) → R57 → R56 → D22 → TP16
<Fig.101>
