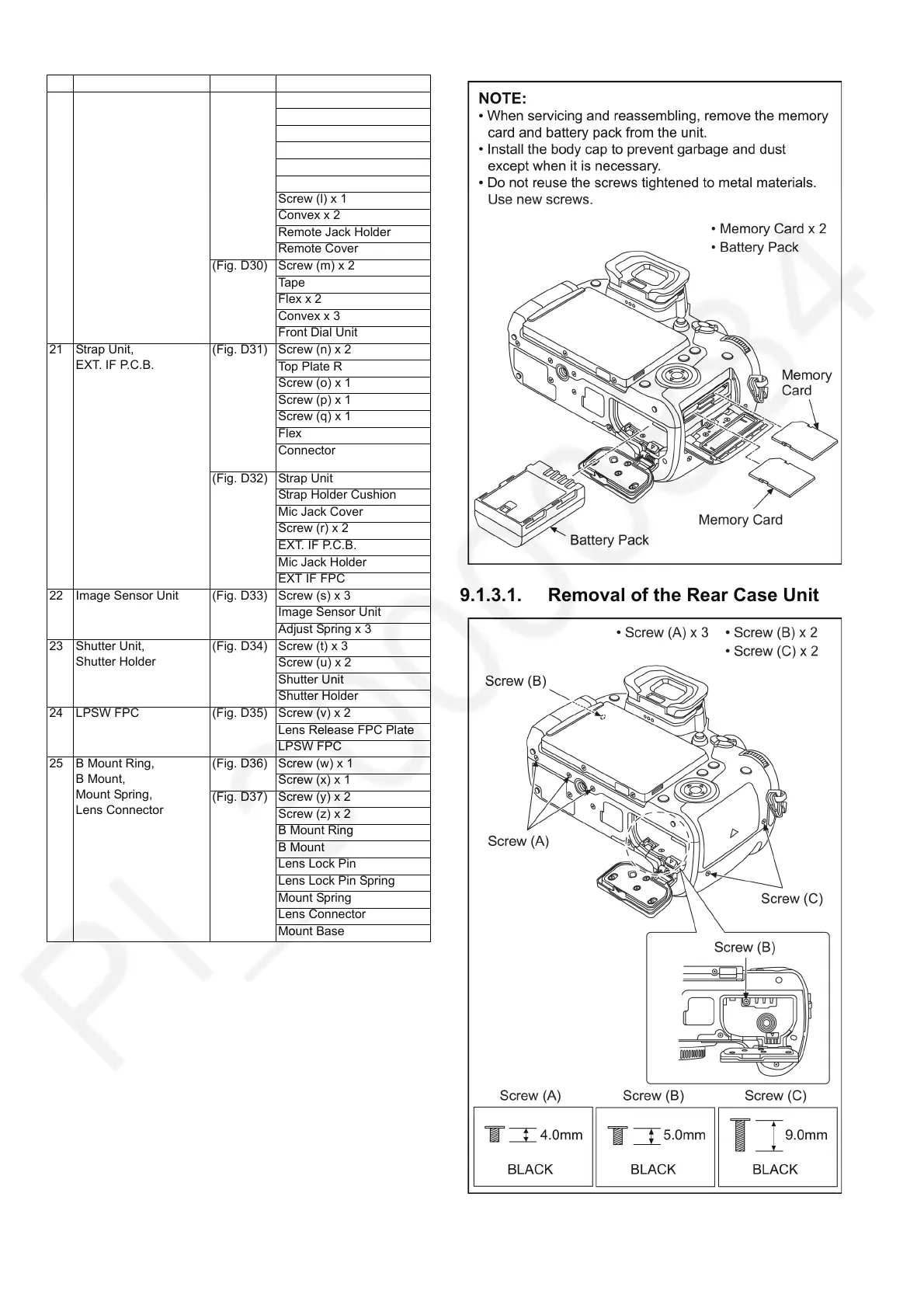

9.1.3.1. Removal of the Rear Case Unit
(Fig. D1)
20 Strap Unit,
Front Dial Unit
(Fig. D29) Screw (j) x 1
Screw (k) x 1
Convex x 2
Top Plate L
Strap Unit
Strap Holder Cushion
Screw (l) x 1
Convex x 2
Remote Jack Holder
Remote Cover
(Fig. D30) Screw (m) x 2
Tape
Flex x 2
Convex x 3
Front Dial Unit
21 Strap Unit,
EXT. IF P.C.B.
(Fig. D31) Screw (n) x 2
Top Plate R
Screw (o) x 1
Screw (p) x 1
Screw (q) x 1
Flex
Connector
(Fig. D32) Strap Unit
Strap Holder Cushion
Mic Jack Cover
Screw (r) x 2
EXT. IF P.C.B.
Mic Jack Holder
EXT IF FPC
22 Image Sensor Unit (Fig. D33) Screw (s) x 3
Image Sensor Unit
Adjust Spring x 3
23 Shutter Unit,
Shutter Holder
(Fig. D34) Screw (t) x 3
Screw (u) x 2
Shutter Unit
Shutter Holder
24 LPSW FPC (Fig. D35) Screw (v) x 2
Lens Release FPC Plate
LPSW FPC
25 B Mount Ring,
B Mount,
Mount Spring,
Lens Connector
(Fig. D36) Screw (w) x 1
Screw (x) x 1
(Fig. D37) Screw (y) x 2
Screw (z) x 2
B Mount Ring
B Mount
Lens Lock Pin
Lens Lock Pin Spring
Mount Spring
Lens Connector
Mount Base
