53
*2 NOTE: (About Simplicity flange back adjustment)
When remove or turn the flange back adjustment screw, “Simplicity flange back adjustment” is necessary.
When remove the flange back adjustment screw, please don’t reuse it. Use new one.

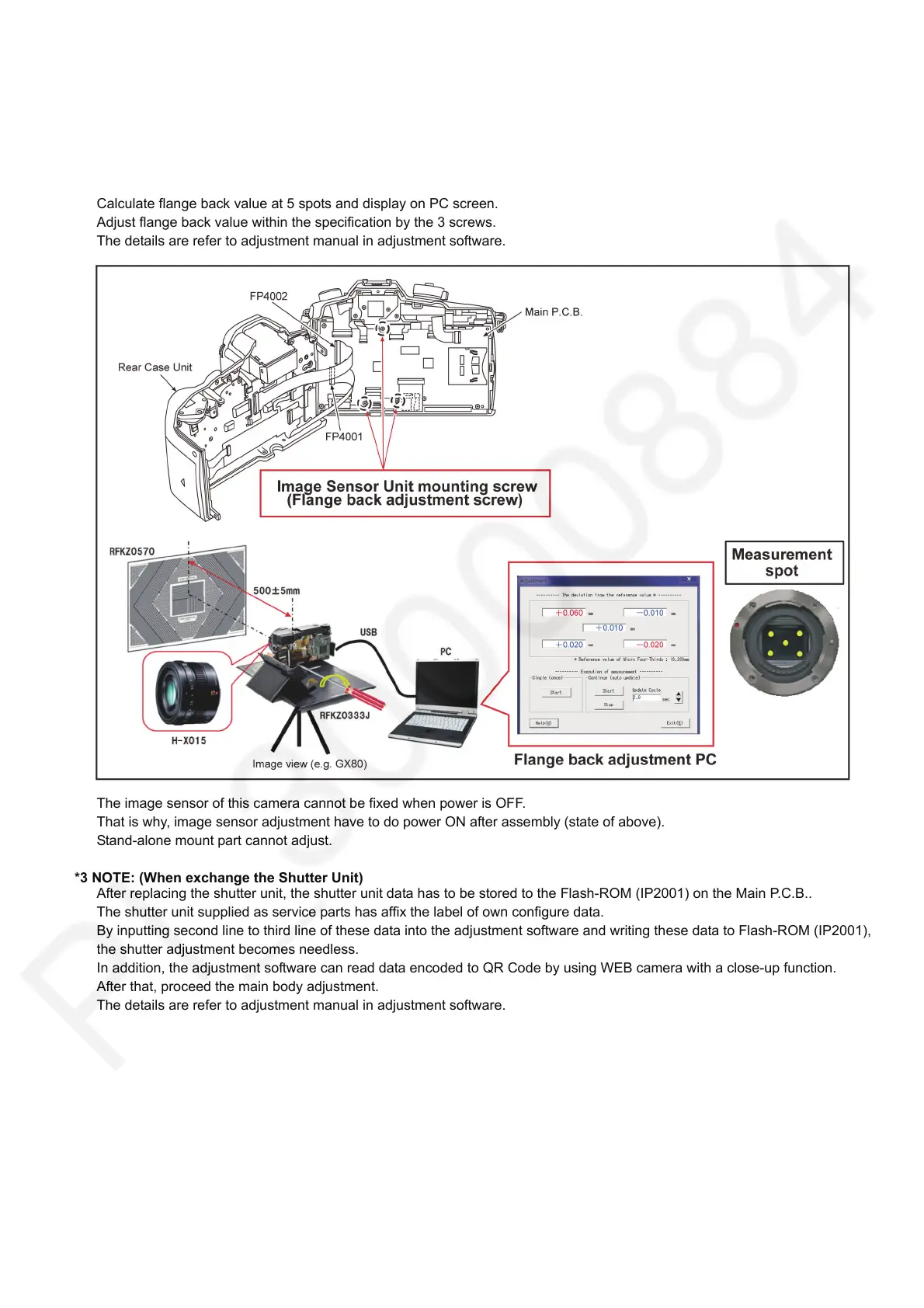

[Abstract of “Simplicity flange back adjustment”]
Set the camera in front of the chart and set center of the chart picture on LCD.
When execute software, camera works AF on 5 spots automatically.
Calculate flange back value at 5 spots and display on PC screen.
Adjust flange back value within the specification by the 3 screws.
The details are refer to adjustment manual in adjustment software.
The image sensor of this camera cannot be fixed when power is OFF.
That is why, image sensor adjustment have to do power ON after assembly (state of above).
Stand-alone mount part cannot adjust.
*3 NOTE: (When exchange the Shutter Unit)
After replacing the shutter unit, the shutter unit data has to be stored to the Flash-ROM (IP2001) on the Main P.C.B..
The shutter unit supplied as service parts has affix the label of own configure data.
By inputting second line to third line of these data into the adjustment software and writing these data to Flash-ROM (IP2001),
the shutter adjustment becomes needless.
In addition, the adjustment software can read data encoded to QR Code by using WEB camera with a close-up function.
After that, proceed the main body adjustment.
The details are refer to adjustment manual in adjustment software.
