24
8.2. When Replacing the Main P.C.B.
After replacing the Main P.C.B., be sure to achieve adjustment.

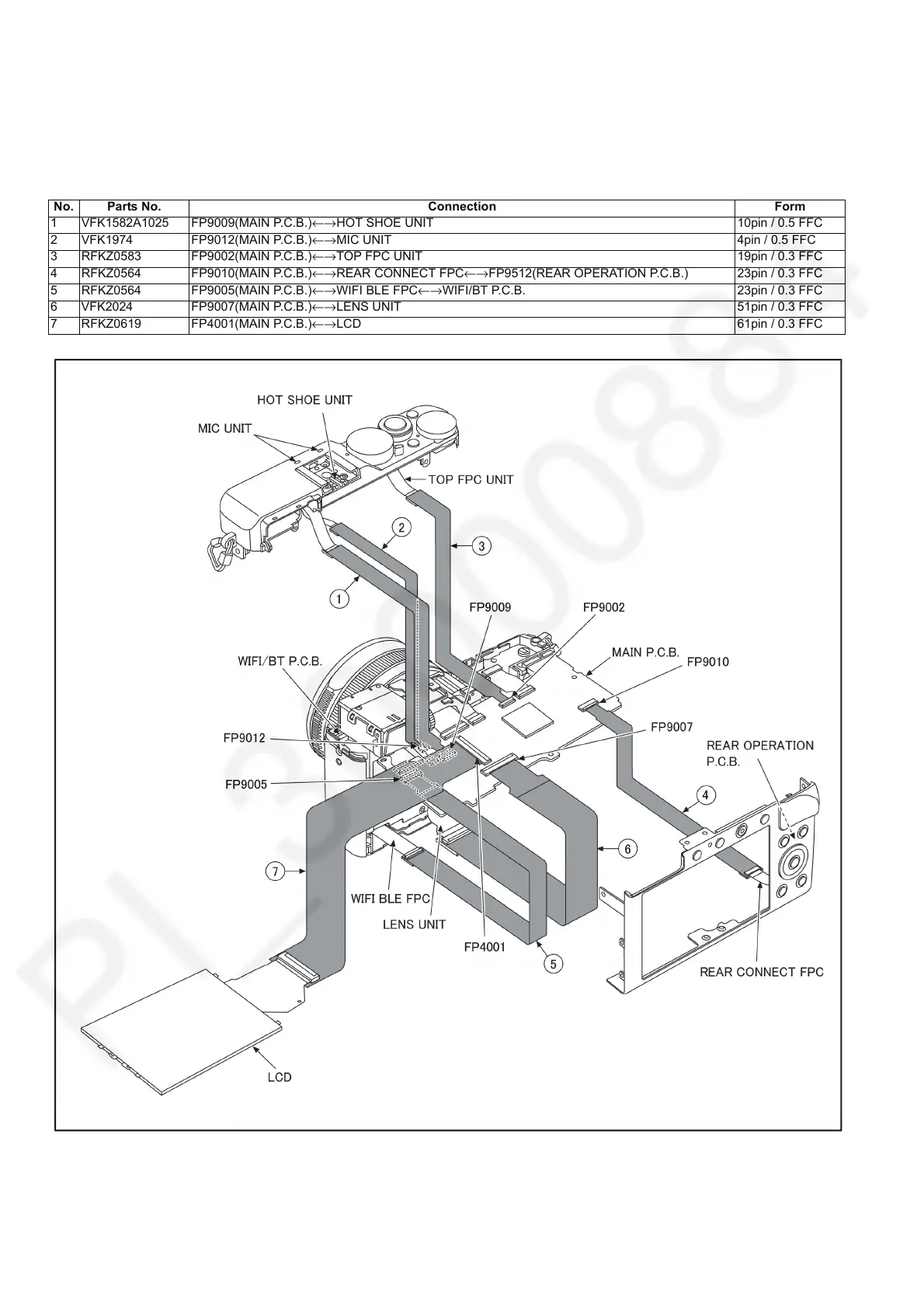

8.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
Table S1 Extension Cable List
No. Parts No. Connection Form
1 VFK1582A1025 FP9009(MAIN P.C.B.)←→HOT SHOE UNIT 10pin / 0.5 FFC
2 VFK1974 FP9012(MAIN P.C.B.)←→MIC UNIT 4pin / 0.5 FFC
3 RFKZ0583 FP9002(MAIN P.C.B.)←→TOP FPC UNIT 19pin / 0.3 FFC
4 RFKZ0564 FP9010(MAIN P.C.B.)←→REAR CONNECT FPC←→FP9512(REAR OPERATION P.C.B.) 23pin / 0.3 FFC
5 RFKZ0564 FP9005(MAIN P.C.B.)←→WIFI BLE FPC←→WIFI/BT P.C.B. 23pin / 0.3 FFC
6 VFK2024 FP9007(MAIN P.C.B.)←→LENS UNIT 51pin / 0.3 FFC
7 RFKZ0619 FP4001(MAIN P.C.B.)←→LCD 61pin / 0.3 FFC
To Next Page
