45
9.5. Assembly Procedure for the
Lens (Phase Alignment)
Precaution:
1. Do not remove the MOS Unit when disassembling or
reassembling the lens in order to maintain it clean.
When remove it, refer to item “9.7.”.
2. Keep dust or dirt away from the lens.
To remove dirt or dust from the lens, blow with dry air.
3. Do not touch the lens surface.
4. Use Lens Cleaning Kit (VFK1900BK).
5. Apply grease to surely the specified position as shown in
the figure on item “9.6.”.
6. The Shutter Unit is composed the 3rd Lens Frame Unit,
4th Lens Frame Unit and Both Side Cam Frame Unit.
When replacing, exchange the Shutter Unit always.

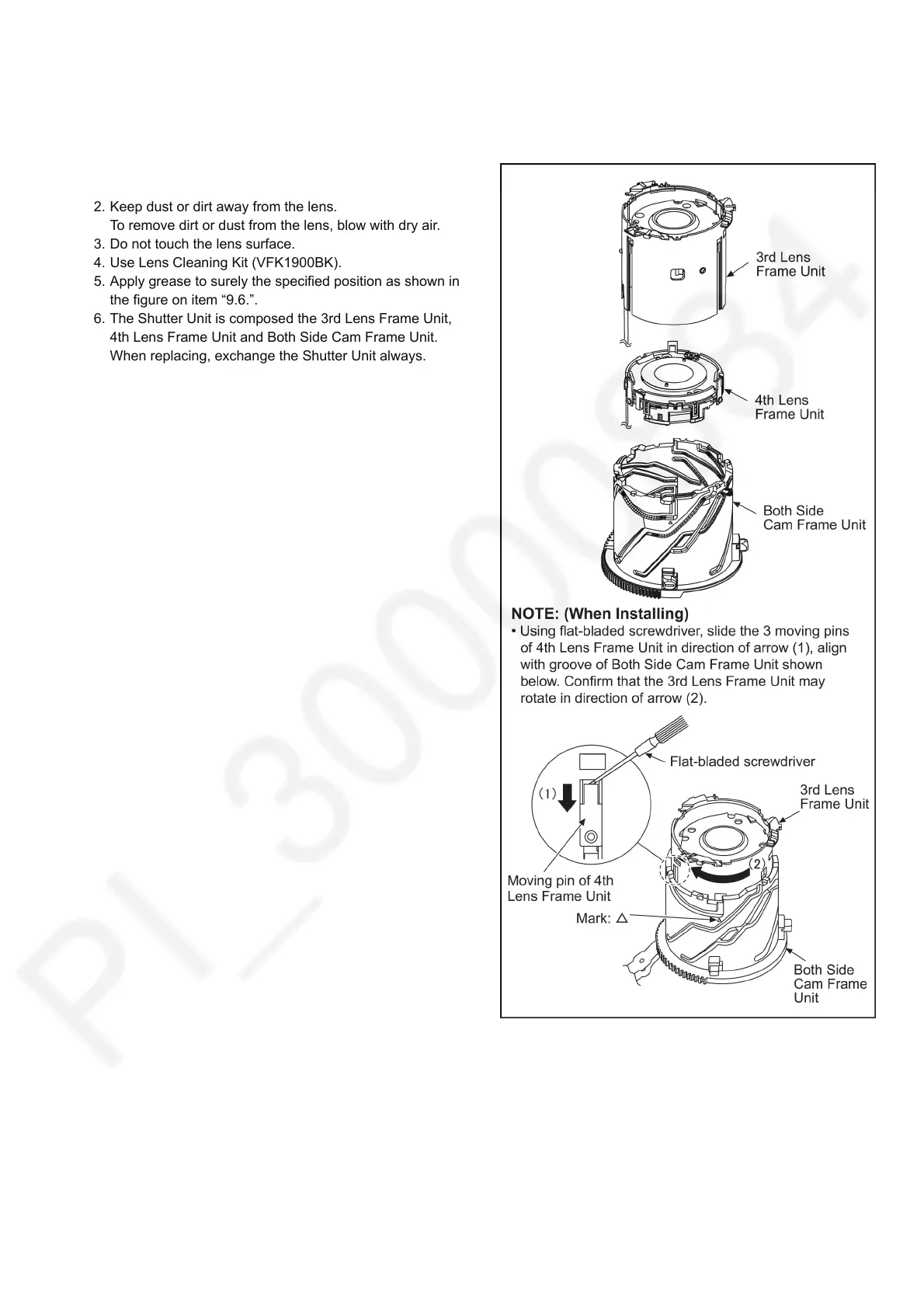

9.5.1. Assembly of the Shutter Unit
The Shutter Unit is composed the 3rd Lens Frame Unit, 4th
Lens Frame Unit and Both Side Cam Frame Unit.
When replacing, exchange the Shutter Unit always.
To Next Page
